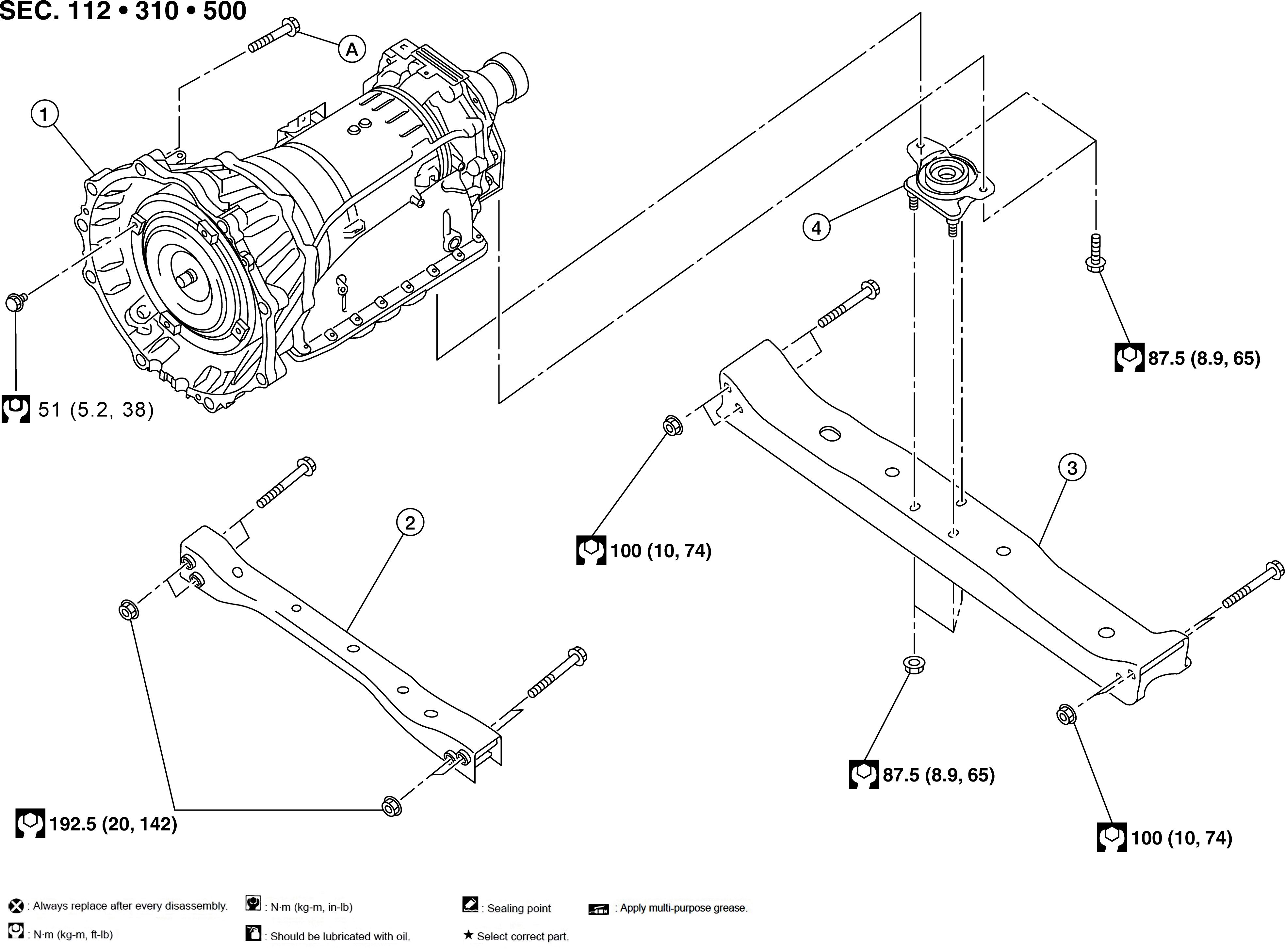

Exploded View
WARNING: This page is about a different variant/trim than selected.
|
1. |
A/T assembly |
2. |
Front cross member |
3. |
Rear cross member |
|
4. |
Engine mount insulator (rear) |
A. |
Refer to INSTALLATION . |
