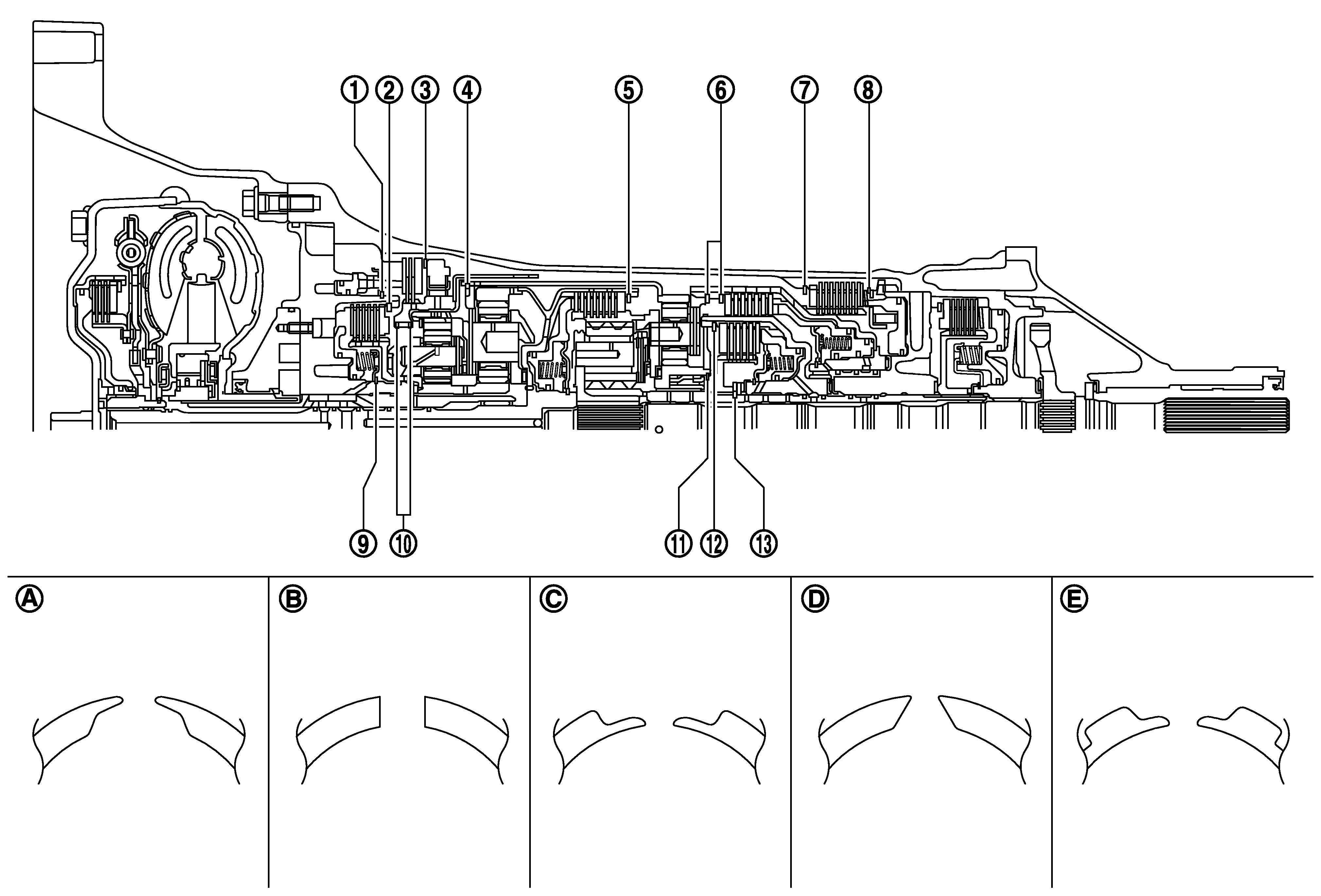

Location of Snap Rings
WARNING: This page is about a different variant/trim than selected.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
Location
|
Shape of snap ring
|
Outer diametermm (in)
|
|
|
|
159.9 (6.295)
|
|
|
|
159 (6.260)
|
|
|
|
216 (8.504)
|
|
|
|
180.4 (7.102)
|
|
|
|
171.5 (6.752)
|
|
|
|
169 (6.654)
|
|
|
|
180.5 (7.106)
|
|
|
|
181.0 (7.126)
|
|
|
|
64.6 (2.543)
|
|
|
|
136 (5.354)
|
|
|
|
70.5 (2.776)
|
|
|
|
135 (5.315)
|
|
|
|
48.4 (1.906)
|
