Exploded View
|
|
Torque converter |
|
Converter housing |
|
Oil pump housing oil seal |
|
|
Oil pump housing |
|
O-ring |
|
Oil pump cover |
|
|
O-ring |
|
D-ring |
|
D-ring |
|
|
Front brake piston |
|
Front brake spring retainer |
|
Snap ring |
|
|
D-ring |
|
D-ring |
|
2346 brake piston |
|
|
2346 brake spring retainer |
|
Snap ring |
|
Seal ring |
|
|
2346 brake dish plate |
|
2346 brake driven plate |
|
2346 brake drive plate |
|
|
2346 brake retaining plate |
|
Snap ring |
|
Bearing race |
|
|
Needle bearing |
|
Under drive sun gear |
|
Needle bearing |
|
|
Front brake retaining plate |
|
Front brake drive plate |
|
Front brake driven plate |
|
|
Front brake retaining plate |
|
Snap ring |
|
1st one-way clutch |
|
|
Snap ring |
|
Under drive carrier assembly |
|
Front brake hub assembly |
|
|
: Always replace after every disassembly. |
||||
|
|
: N.m (kg-m, in-lb) |
||||
|
|
: N.m (kg-m, ft-lb) |
||||
|
|
: Apply Genuine RTV silicone sealant or equivalent. Refer to Recommended Chemical Products and Sealants . |
||||
|
|
: Apply ATF |
||||
|
|
: Apply petroleum jelly |
||||
|
|
: Select with proper thickness. |
||||
|
|

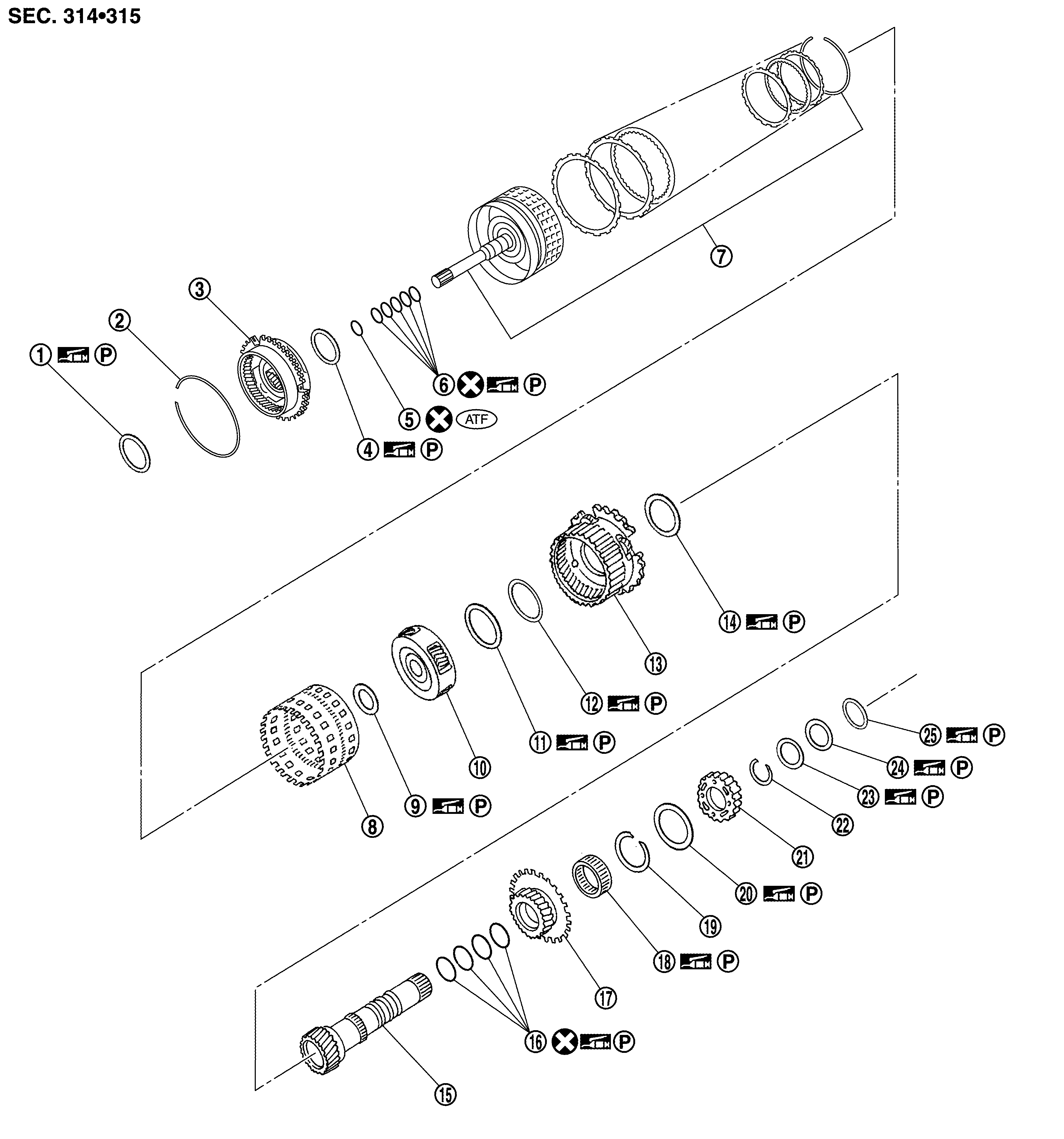

Needle bearing |
|
Snap ring |
|
Front carrier assembly |
|
|
Needle bearing |
|
O-ring |
|
Seal ring |
|
|
Input clutch assembly |
|
Rear internal gear |
|
Needle bearing |
|
|
Mid carrier assembly |
|
Needle bearing |
|
Bearing race |
|
|
Rear carrier assembly |
|
Needle bearing |
|
Mid sun gear |
|
|
Seal ring |
|
Rear sun gear |
|
2nd one-way clutch |
|
|
Snap ring |
|
Needle bearing |
|
High and low reverse clutch hub |
|
|
Snap ring |
|
Bearing race |
|
Bearing race |
|
|
Needle bearing |
||||
|
|
: Always replace after every disassembly. |
||||
|
|
: Apply ATF |
||||
|
|
: Apply petroleum jelly |
||||
|
|

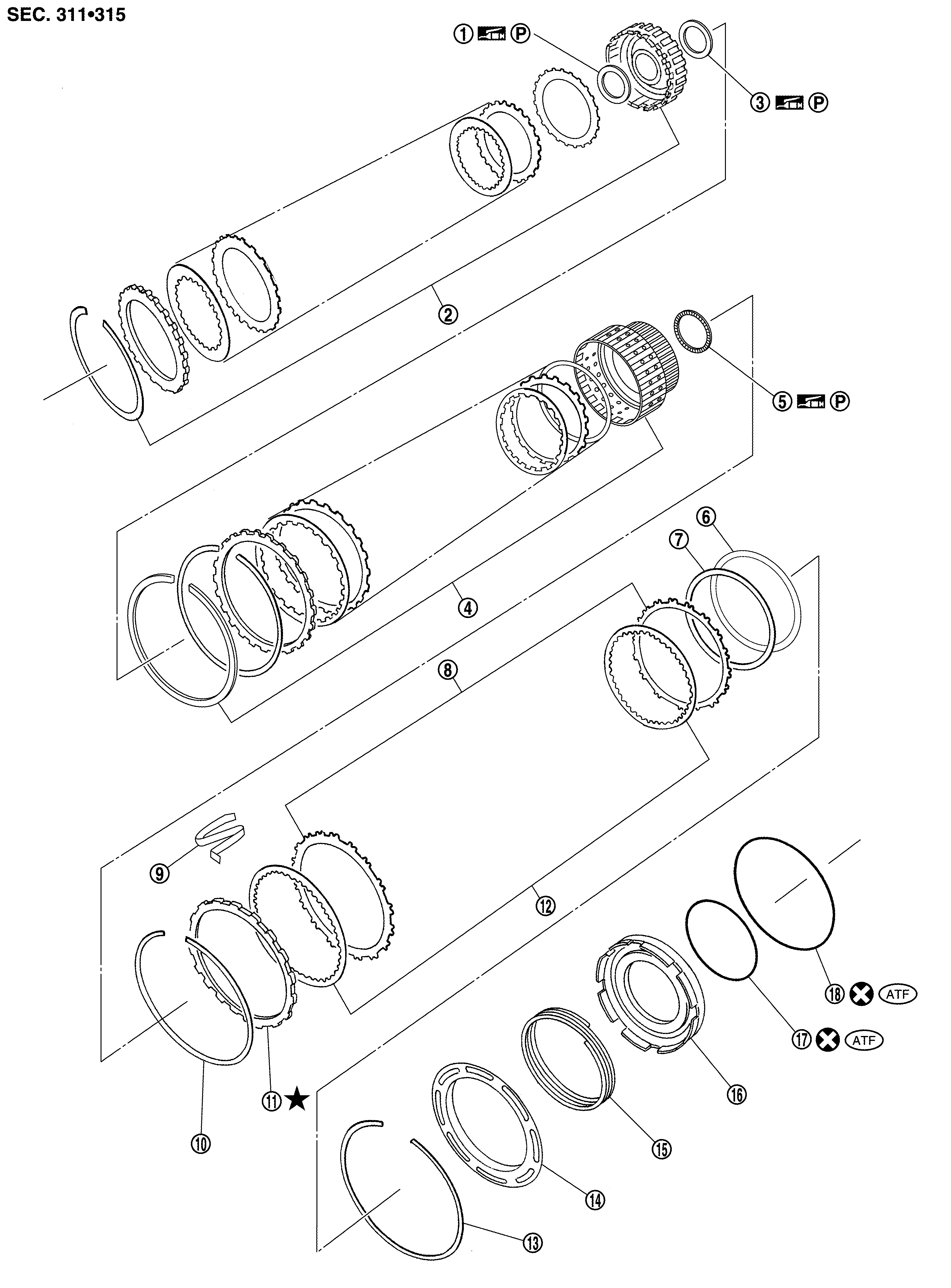

Bearing race |
|
High and low reverse clutch assembly |
|
Needle bearing |
|
|
Direct clutch assembly |
|
Needle bearing |
|
Reverse brake dish plate |
|
|
Reverse brake dish plate |
|
Reverse brake driven plate |
|
N-spring |
|
|
Snap ring |
|
Reverse brake retaining plate |
|
Reverse brake drive plate |
|
|
Snap ring |
|
Reverse brake spring retainer |
|
Reverse brake return spring |
|
|
Reverse brake piston |
|
D-ring |
|
D-ring |
|
|
: Always replace after every disassembly. |
||||
|
|
: Apply ATF |
||||
|
|
: Apply petroleum jelly |
||||
|
|
: Select with proper thickness. |
||||
|
|

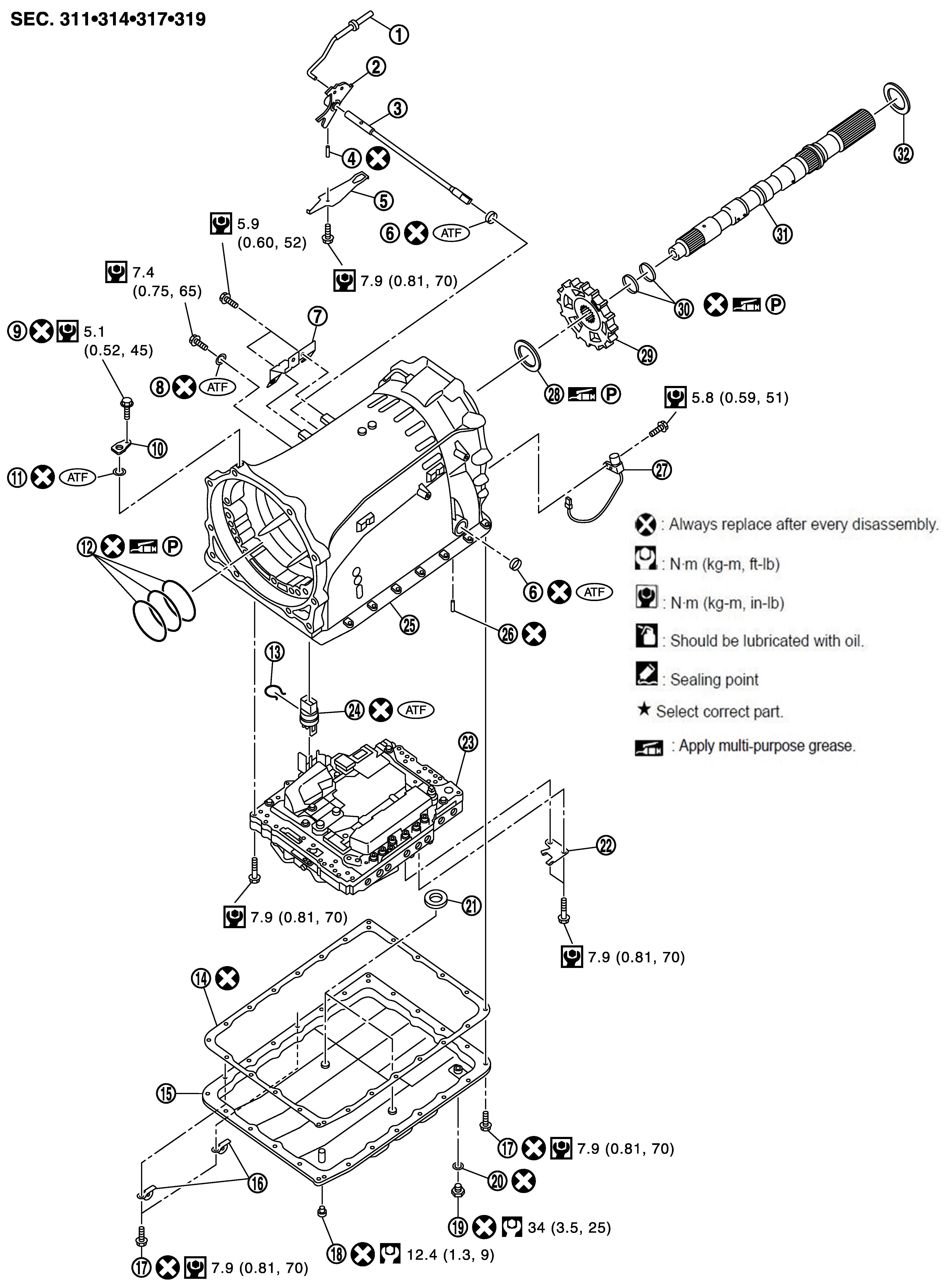

Parking rod |
|
Manual plate |
|
Manual shaft |
|
|
Retaining pin |
|
Detent spring |
|
Oil seal |
|
|
Bracket |
|
O-ring |
|
Self-sealing bolt |
|
|
Baffle plate |
|
O-ring |
|
Seal ring |
|
|
Snap ring |
|
Oil pan gasket |
|
Oil pan |
|
|
Clip |
|
Oil pan mounting bolt |
|
Overflow plug |
|
|
Drain plug |
|
Drain plug gasket |
|
Magnet |
|
|
Clip |
|
Control valve & TCM |
|
Joint connector |
|
|
Transmission case |
|
Retaining pin |
|
Output speed sensor |
|
|
Needle bearing |
|
Parking gear |
|
Seal ring |
|
|
Output shaft |
|
Bearing race |
||
|
|
: Always replace after every disassembly. |
||||
|
|
: N.m (kg-m, in-lb) |
||||
|
|
: N.m (kg-m, ft-lb) |
||||
|
|
: Apply ATF |
||||
|
|
: Apply petroleum jelly |
||||
|
|

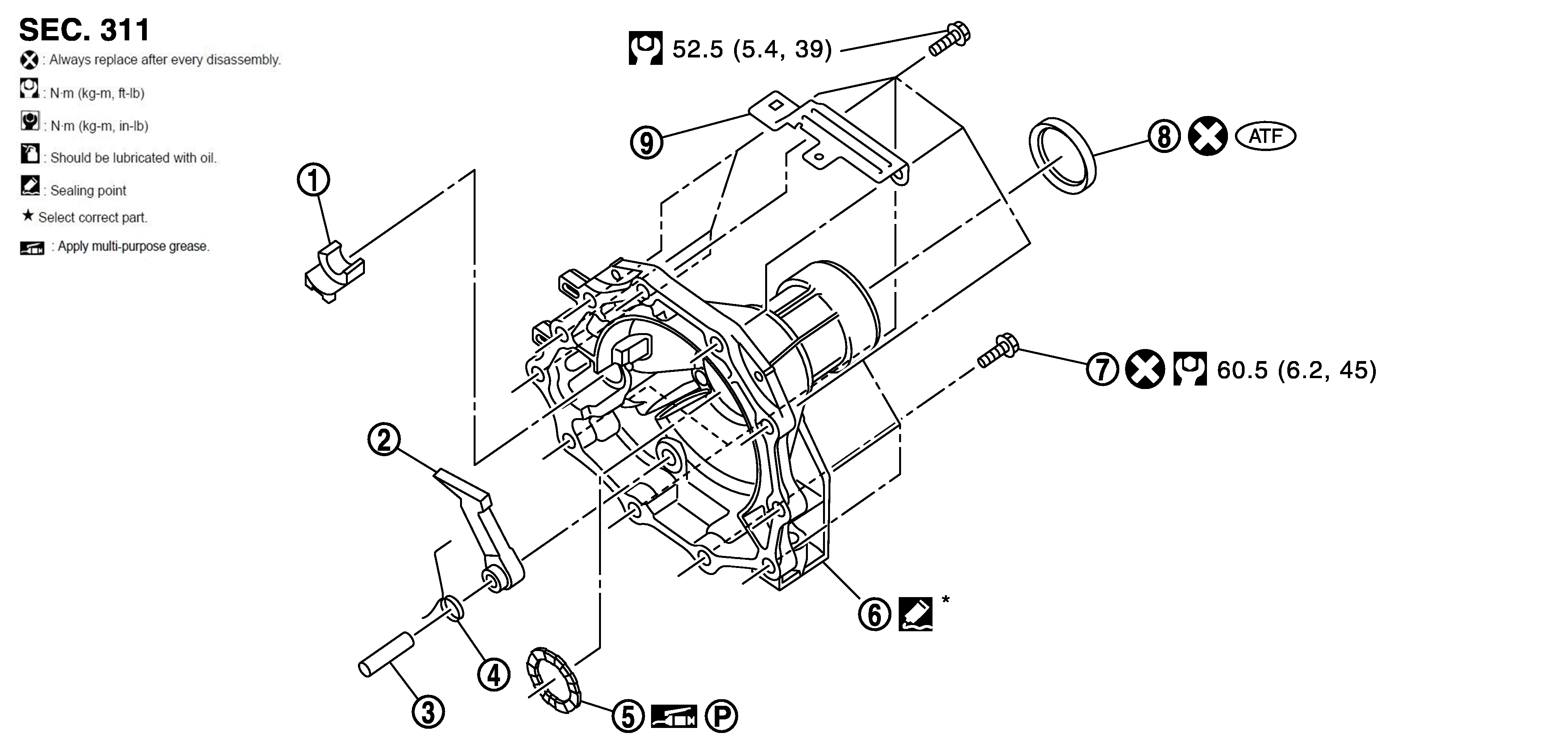

Parking actuator support |
|
Parking pawl |
|
Pawl shaft |
|
|
Return spring |
|
Needle bearing |
|
Rear extension |
|
|
Self-sealing bolt |
|
Rear oil seal |
|
Bracket |
|
|
: Always replace after every disassembly. |
||||
|
|
: N.m (kg-m, ft-lb) |
||||
|
|
: Apply petroleum jelly |
||||
|
|
: Apply Genuine RTV silicone sealant or equivalent. Refer to Recommended Chemical Products and Sealants . |
||||
