Direct Clutch: Assembly

WARNING: This page is about a different variant/trim than selected.

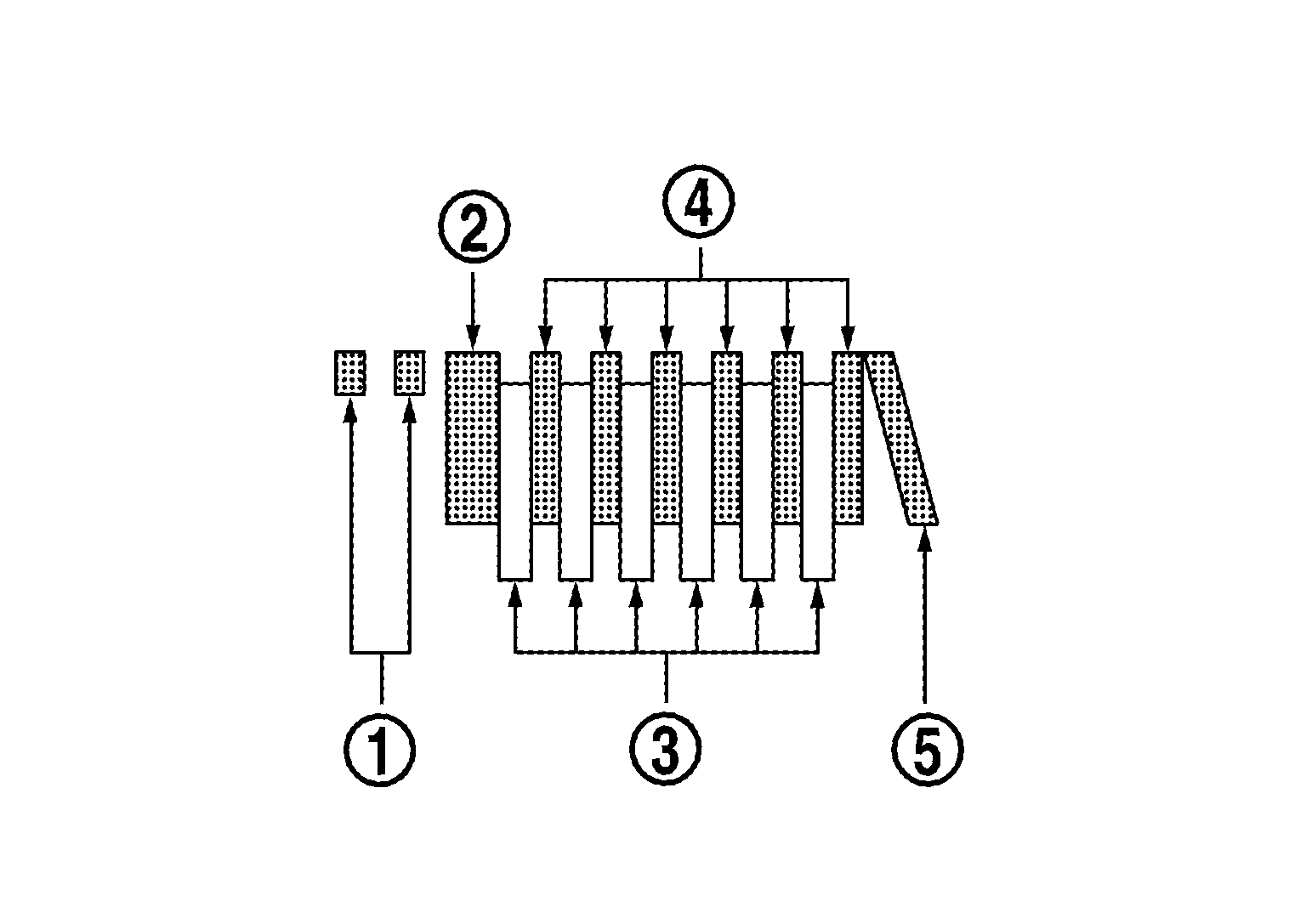

Install direct clutch component part (drive plates, driven plates, retaining plate, and dish plate) to direct clutch drum.

G04075909

Courtesy of NISSAN NORTH AMERICA, INC.

	: Snap ring
	: Retaining plate
	: Drive plate (six pieces)
	: Driven plate (six pieces)
	: Dish plate

CAUTION: Check the order of plates.

Install snap rings to direct clutch drum using a flat-bladed screwdriver.

Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Be careful not to scratch direct clutch drum and direct clutch retaining plate.
- Be careful not to damage snap ring.
