Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove propeller shaft assembly. Refer to Removal and Installation .

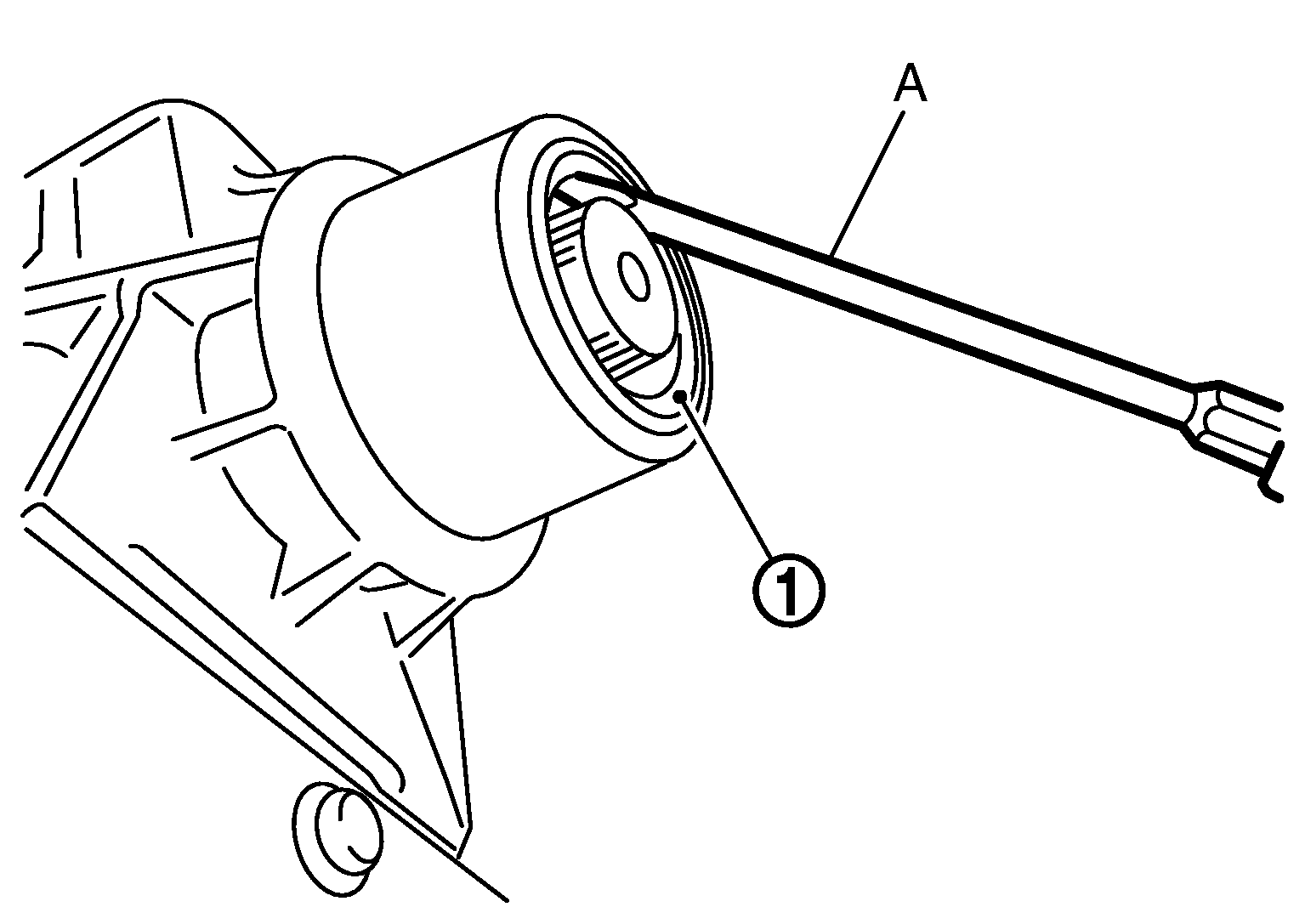

  2. Remove rear oil seal (1) using suitable tool (A).
    GNSJPDIA0037Z-037Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Be careful not to scratch rear extension assembly.
