Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery negative terminal. Refer to Battery Disconnect .
Drain ATF through drain plug. Refer to Changing .
Remove propeller shaft assembly. Refer to Removal and Installation .

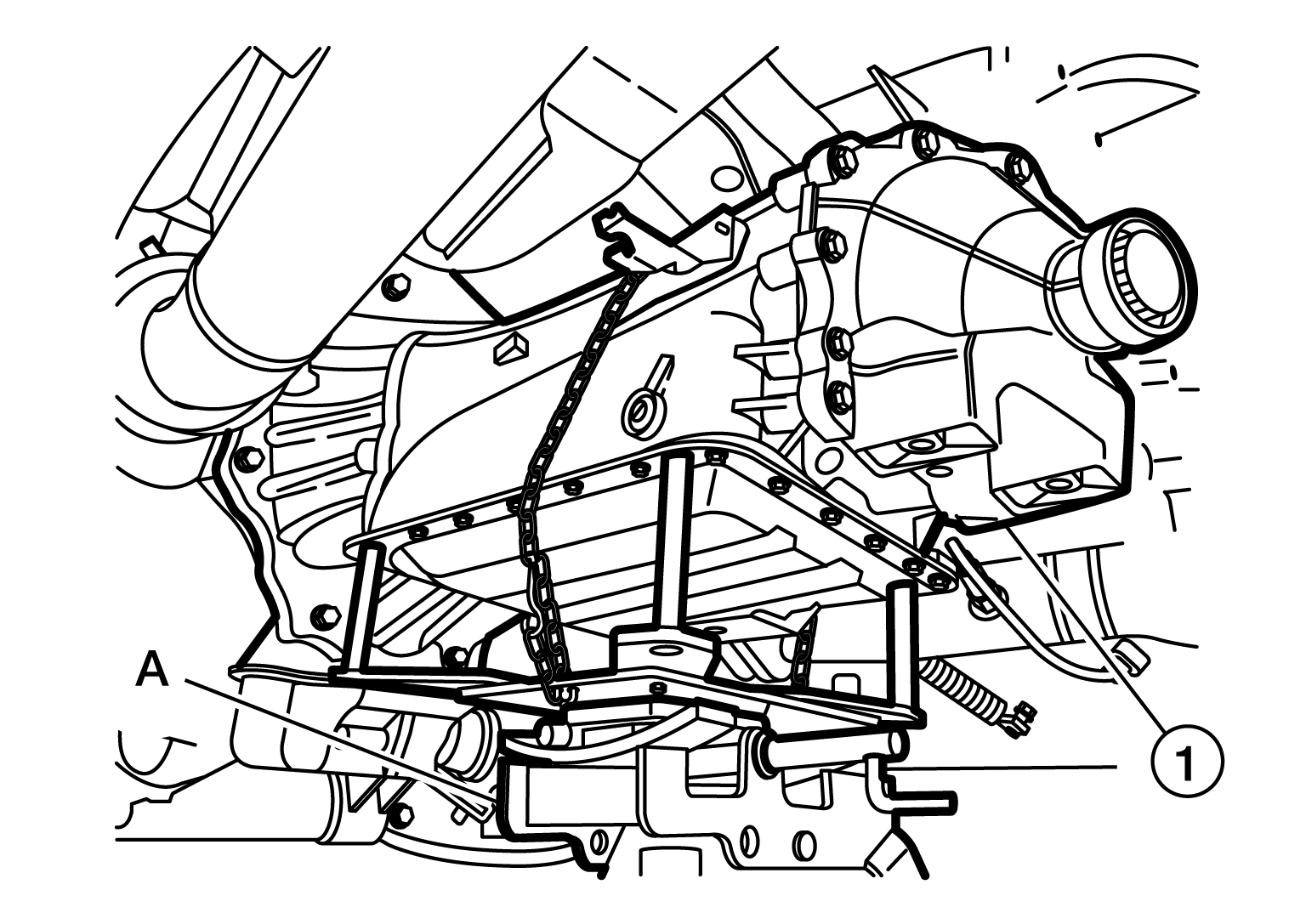

Support A/T assembly (1) with a transmission jack (A).

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: When setting transmission jack, be careful not to allow it to collide against the drain plug.

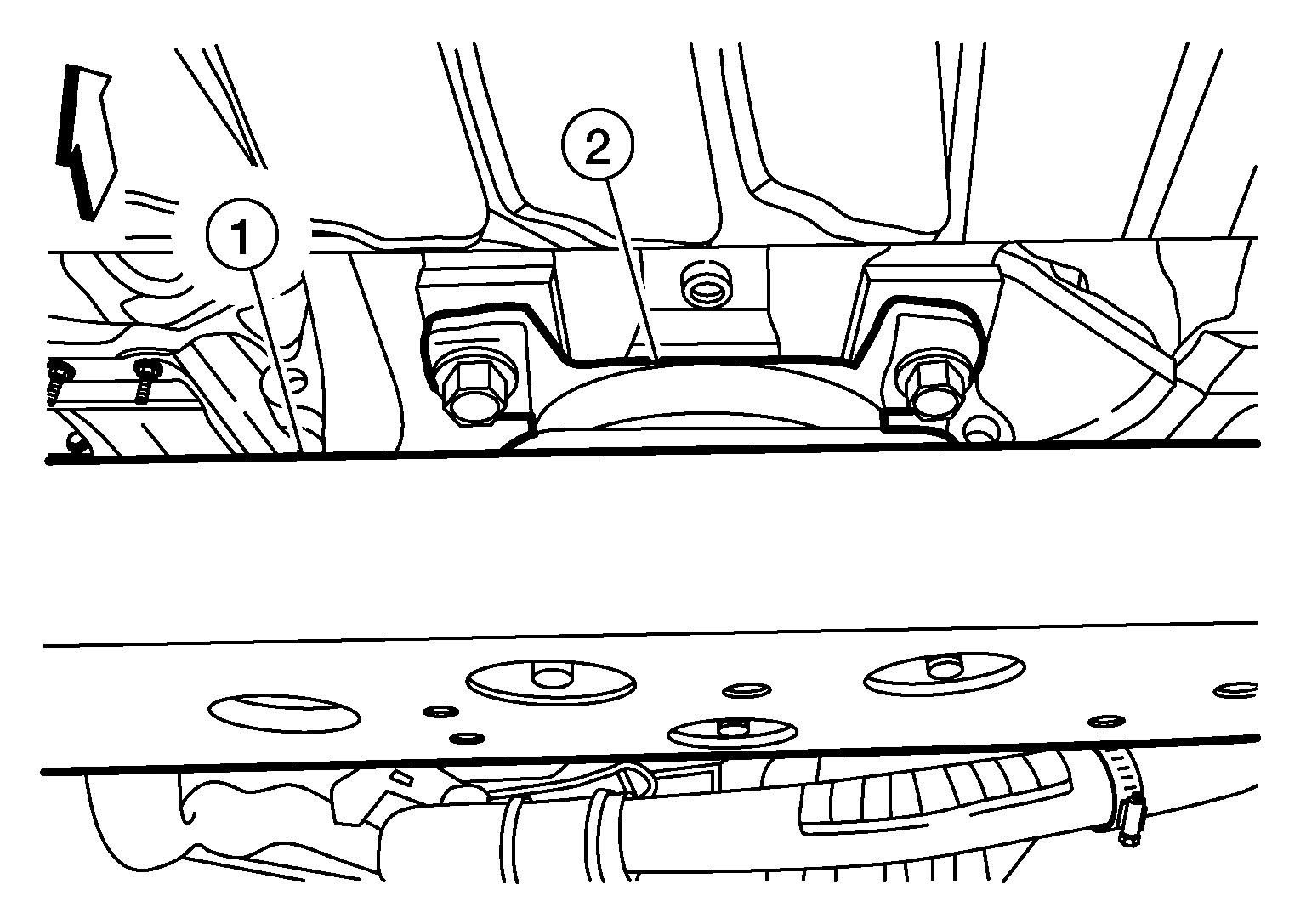

Remove rear engine mount cross member (1) and remove engine mount insulator (rear) (2).

Courtesy of NISSAN NORTH AMERICA, INC.

Remove bolts (A) and (B) for rear extension assembly and transmission case.

Courtesy of NISSAN NORTH AMERICA, INC.

Tap rear extension assembly using suitable tool (A).

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Be careful not to damage rear extension case.
Remove rear extension assembly (with needle bearing) from transmission case.

Courtesy of NISSAN NORTH AMERICA, INC.
Remove bearing race (1) from output shaft (2).

Courtesy of NISSAN NORTH AMERICA, INC.
Remove the output shaft (1) from A/T assembly by rotating left/right.

Courtesy of NISSAN NORTH AMERICA, INC.
Remove parking gear (1) from output shaft (2).

Courtesy of NISSAN NORTH AMERICA, INC.
Remove seal rings (1) from output shaft.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not reuse seal rings.
Remove needle bearing (1) from rear extension.

Courtesy of NISSAN NORTH AMERICA, INC.
Remove parking actuator support (1) from rear extension.

Courtesy of NISSAN NORTH AMERICA, INC.
Remove parking pawl (with return spring) (1) and pawl shaft (2) from rear extension.

Courtesy of NISSAN NORTH AMERICA, INC.
Remove return spring (1) from parking pawl (2).

Courtesy of NISSAN NORTH AMERICA, INC.
