Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Installation in the reverse order of removal.

CAUTION:

Do not reuse seal rings and drain plug gasket.
Apply petroleum jelly to needle bearing and seal rings.
Insert the tip of parking rod between the parking pawl and the parking actuator support when assembling the rear extension assembly.

Refer to the following installing rear extension assembly.

Apply recommended sealant (Genuine Anaerobic Liquid Gasket or equivalent) to rear extension assembly as shown. Refer to Recommended Chemical Products and Sealants .

Courtesy of NISSAN NORTH AMERICA, INC.

Sealant starting point and end-point (A)	: Start and finish point shall be in the center of two bolts.
Overlap width of sealant starting point and end-point (B)	: 3 - 5 mm (0.12 - 0.20 in)
Sealant width (C)	: 1.0 - 2.0 mm (0.04 - 0.08 in)
Sealant height (C)	: 0.4 - 1.0 mm (0.016 - 0.04 in)

CAUTION: Completely remove all moisture, oil and old sealant, etc. from the transmission case and rear extension assembly mounting surfaces.

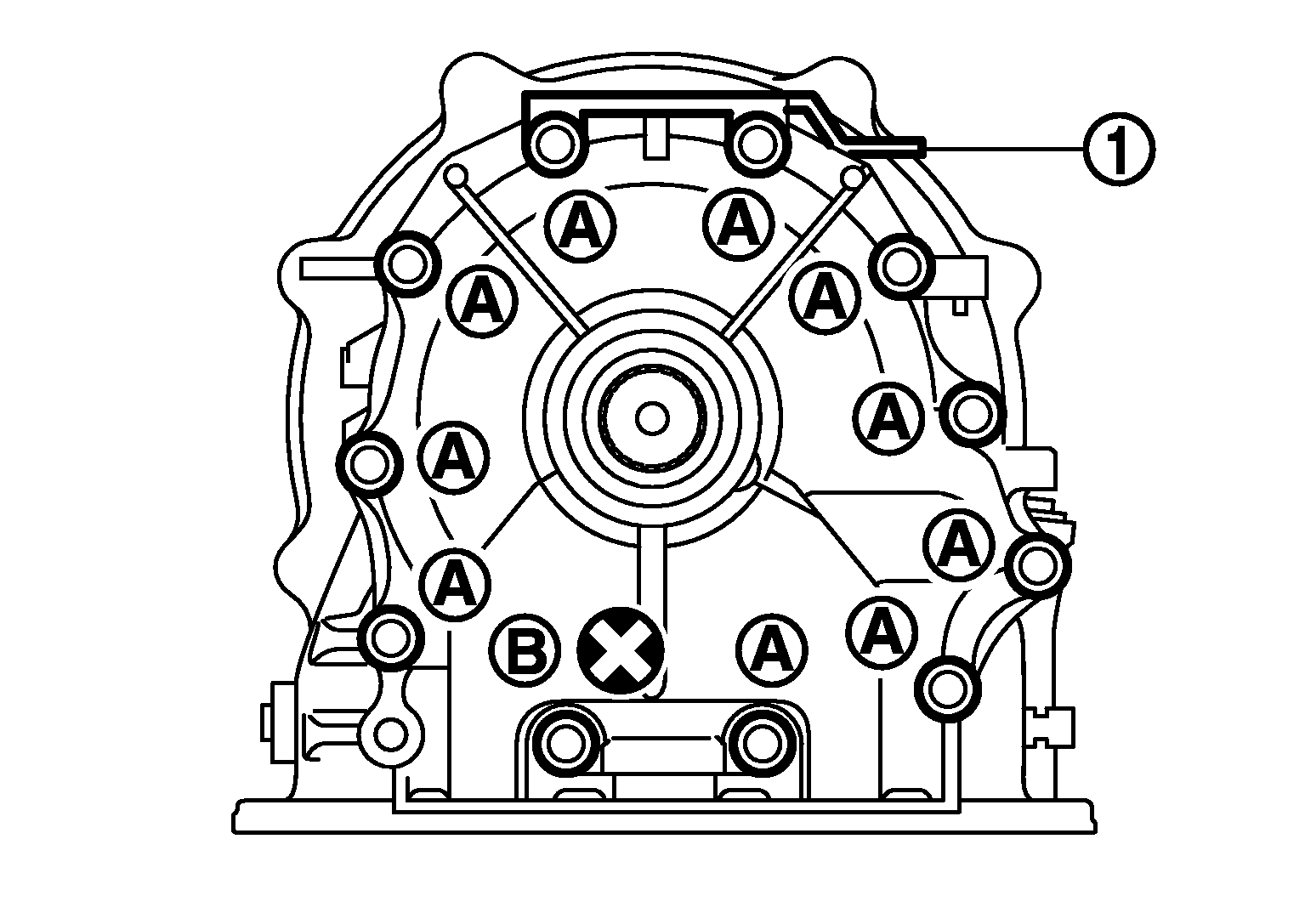

Tighten rear extension assembly bolts (A) and (B) to the specified torque.

Courtesy of NISSAN NORTH AMERICA, INC.
