Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery negative terminal. Refer to Battery Disconnect .
Remove propeller shaft assembly. Refer to Removal and Installation .
Remove rear cross member (1) and rear engine mount insulator (2).

Courtesy of NISSAN NORTH AMERICA, INC.
Drain ATF through drain plug. Refer to Changing .
Remove clips (1).

Courtesy of NISSAN NORTH AMERICA, INC.

Remove oil pan bolts (A), oil pan (2) and oil pan gasket.

	: Front
(A)	: Oil pan bolt

Support A/T assembly with a suitable jack.
CAUTION: When setting suitable jack, be careful to prevent damage to control valve & TCM and A/T assembly.

Remove bolts (A) and (B) for adapter case and A/T assembly.

Courtesy of NISSAN NORTH AMERICA, INC.

Tap adapter case using suitable tool (A).

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Be careful not to damage adapter case.
Remove adapter case (with needle bearing) from A/T assembly.

Courtesy of NISSAN NORTH AMERICA, INC.
Disconnect the harness connector (A) from the output speed sensor.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Be careful not to damage connector
Disengage terminal clips (1).

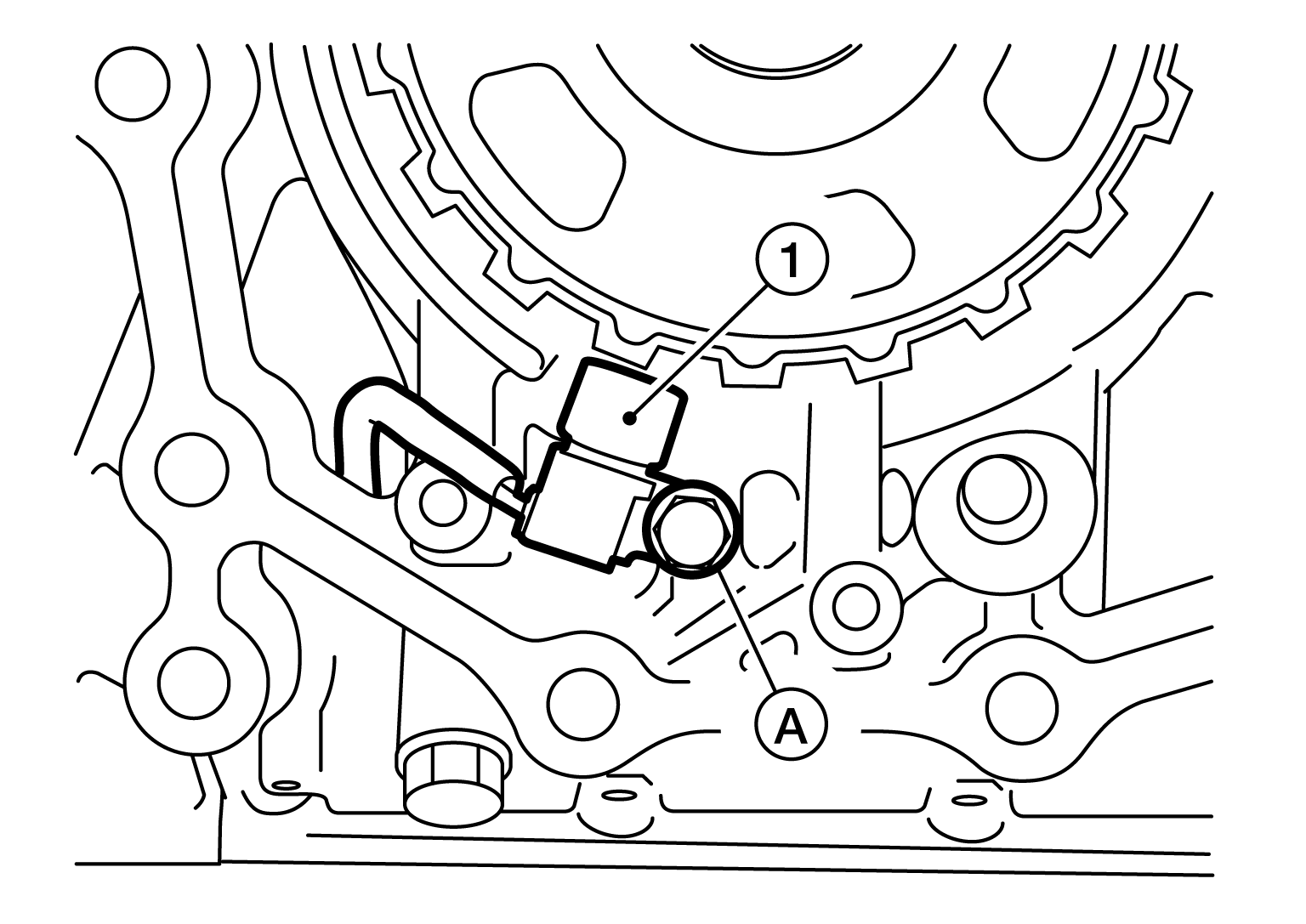

Remove bolt (A) output speed sensor (1) from A/T assembly.

Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Do not subject it to impact by dropping or hitting it.
- Do not disassemble.
- Do not allow metal filings, etc. to get on the sensor's front edge magnetic area.
- Do not place in an area affected by magnetism.
