A/T Fluid Warmer: Removal

WARNING: This page is about a different variant/trim than selected.

A/T Fluid Warmer

Drain engine coolant. Refer to Changing Engine Coolant .
Remove front under cover. Refer to Removal and Installation .
Disconnect A/T fluid cooler hose D from A/T fluid warmer.
Disconnect A/T fluid cooler hose E from A/T fluid warmer.

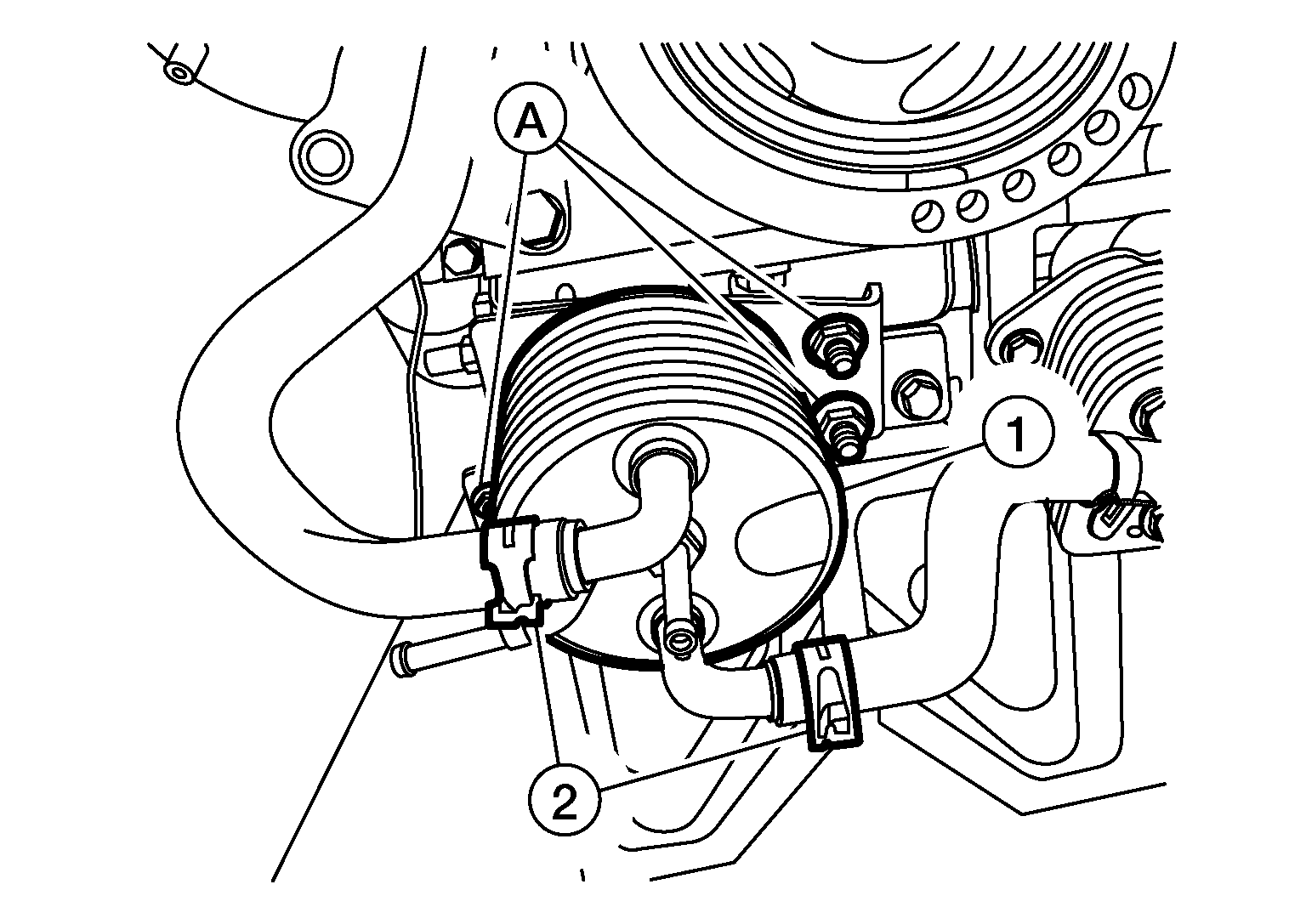

Disconnect water hoses (2) from A/T fluid warmer (1).

Courtesy of NISSAN NORTH AMERICA, INC.
Remove nuts (A) from A/T fluid warmer.
Remove A/T fluid warmer.
Remove A/T fluid warmer bracket (if necessary).
