A/T Fluid Cooler Assembly: Installation
Note the following, and install in the reverse order of removal.
- Do not reuse copper washers.
- Be careful not to damage A/T fluid cooler core.
- Be careful not to damage condenser core, condenser pipe and liquid tank.
- Check A/T fluid level. Refer to Inspection .
- Refer to the following when installing A/T fluid cooler hoses.
Hose name
Hose end
Paint mark
Position of hose clamp *
A/T fluid cooler hose C
A/T fluid cooler tube A
Facing rightward
E
A/T fluid cooler assembly
Facing rightward
E
A/T fluid cooler hose D
A/T fluid cooler tube B
Facing upward
B
A/T fluid warmer
Facing upward
J
A/T fluid cooler hose E
A/T fluid warmer side
Facing upward
C
A/T fluid cooler assembly
Facing rightward
D
*: Refer to the illustrations for the specific position each hose clamp tab.
- The illustrations indicate the view from the hose ends.
H
: Vehicle upper
: Vehicle front

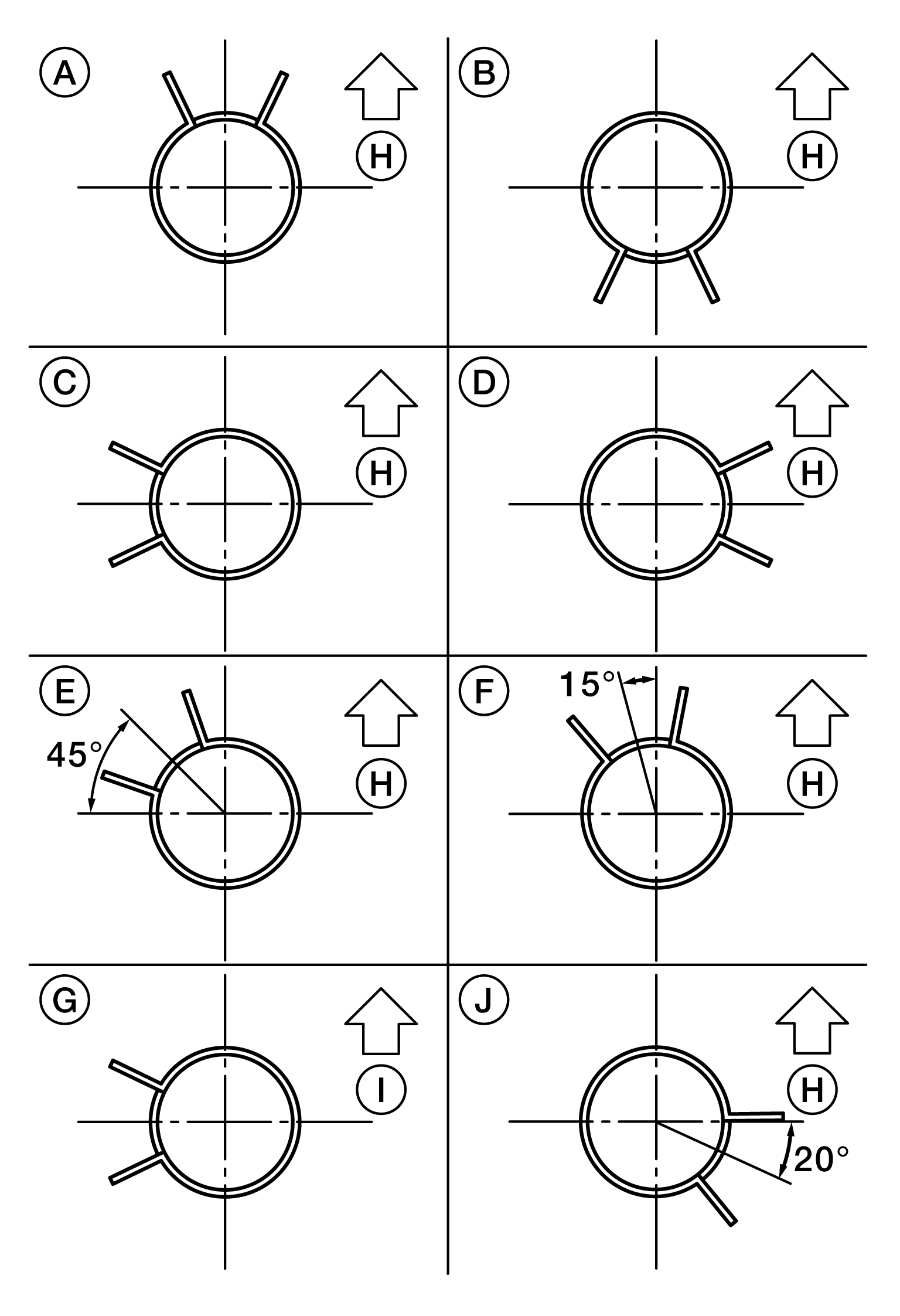

- When installing hose clamps center line of each hose clamp tab should be positioned as shown in the figure.
- Insert A/T fluid cooler hoses according to dimension "L" described below.
A/T fluid cooler hose (1)
Insertion side tube (2)
Tube type
Dimension "L"
A/T fluid cooler hose C
A/T fluid cooler tube A
A
30-33 mm (1.18 in) [End reaches the 2-stage bulge (C).]
A/T fluid cooler assembly
A/T fluid cooler hose D
A/T fluid cooler tube
A
30-33 mm (1.18 in) [End reaches the 2-stage bulge (C).]
A/T fluid warmer tube
A/T fluid cooler hose E
A/T fluid warmer tube
B
Insert the hose until the hose touches the A/T fluid warmer.
A/T fluid cooler assembly
A
30-33 mm (1.18 in) [End reaches the 2-stage bulge (C).]
- Set hose clamps (1) at the both ends of A/T fluid cooler hoses (2) with dimension "A" from the hose edge.
Dimension "A"
: 5 - 9 mm (0.20 - 0.35 in)
- Hose clamp should not interfere with the bulge of fluid cooler tube.
- The illustrations indicate the view from the hose ends.
