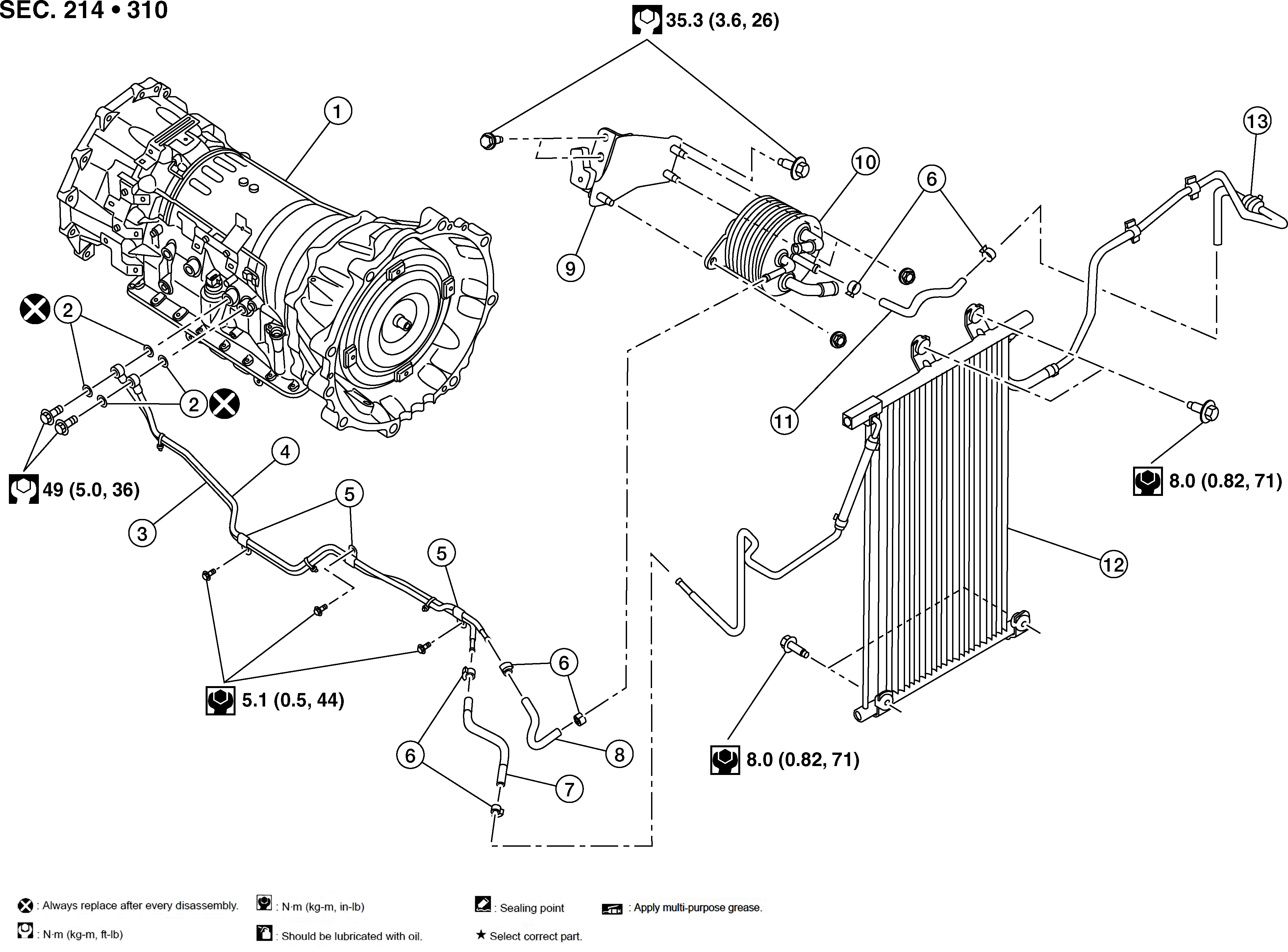

Exploded View
WARNING: This page is about a different variant/trim than selected.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
A/T assembly
|
2.
|
Copper washer
|
3.
|
A/T fluid cooler tube A
|
|
4.
|
A/T fluid cooler tube B
|
5.
|
Clip
|
6.
|
Hose clamp
|
|
7.
|
A/T fluid cooler hose C
|
8.
|
A/T fluid cooler hose D
|
9.
|
A/T fluid warmer bracket
|
|
10.
|
A/T fluid warmer
|
11.
|
A/T fluid cooler hose E
|
12.
|
A/T fluid cooler
|
|
13.
|
Clamp
|
