Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery negative terminal. Refer to Battery Disconnect .
  2. Drain ATF through drain plug. Refer to Changing .

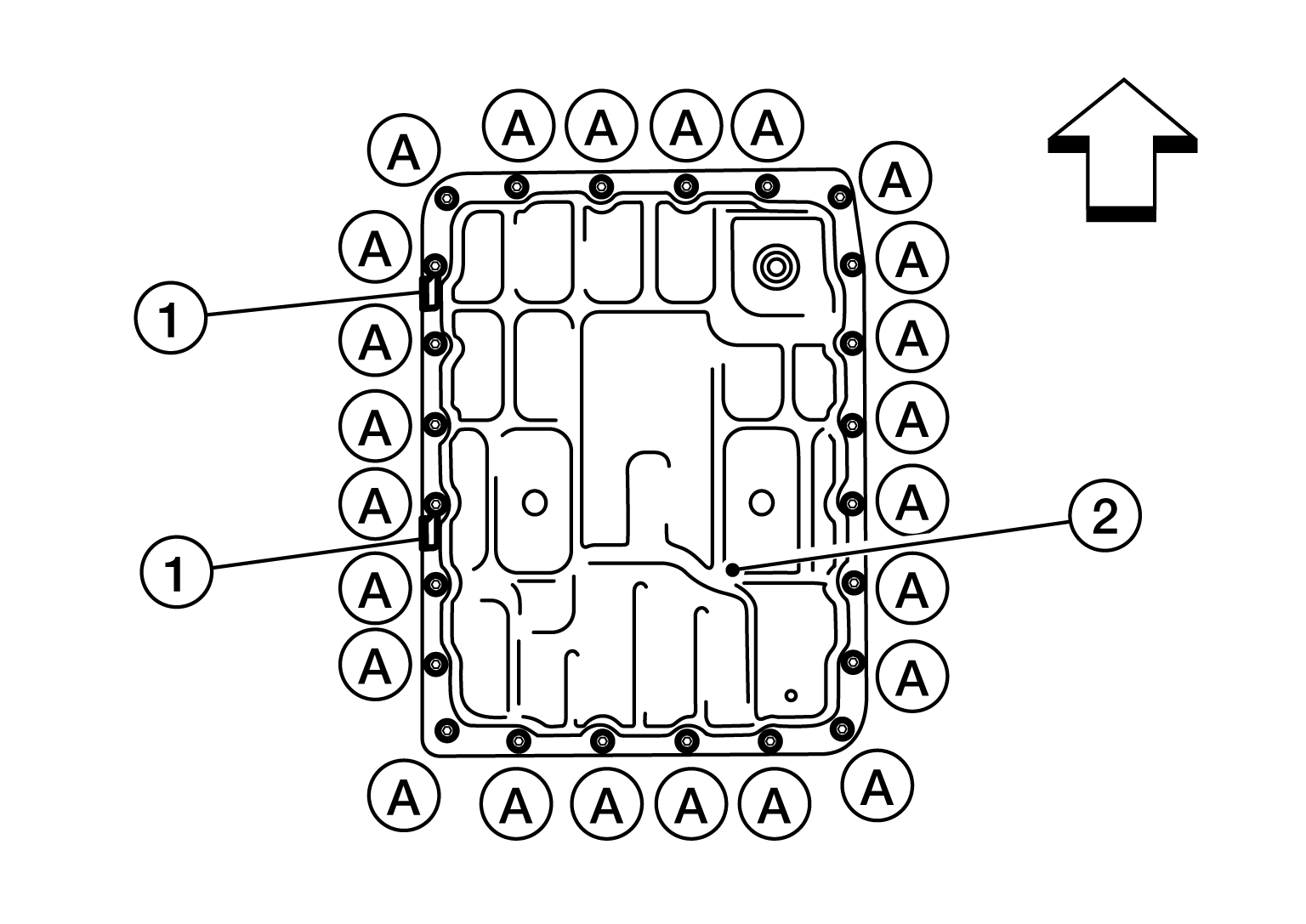

  3. Remove oil pan bolts (A) and clips (1).
    GNSAWDIA1458Z-458Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front
  4. Remove oil pan (2) and oil pan gasket.
  5. Remove snap ring (1) from joint connector (2) in the direction shown (SYMBOL ).
    GNSJSDIA1756Z-756Courtesy of NISSAN NORTH AMERICA, INC.
  6. Push joint connector (1) in the direction shown (SYMBOL ).
    GNSJSDIA1757Z-757Courtesy of NISSAN NORTH AMERICA, INC.

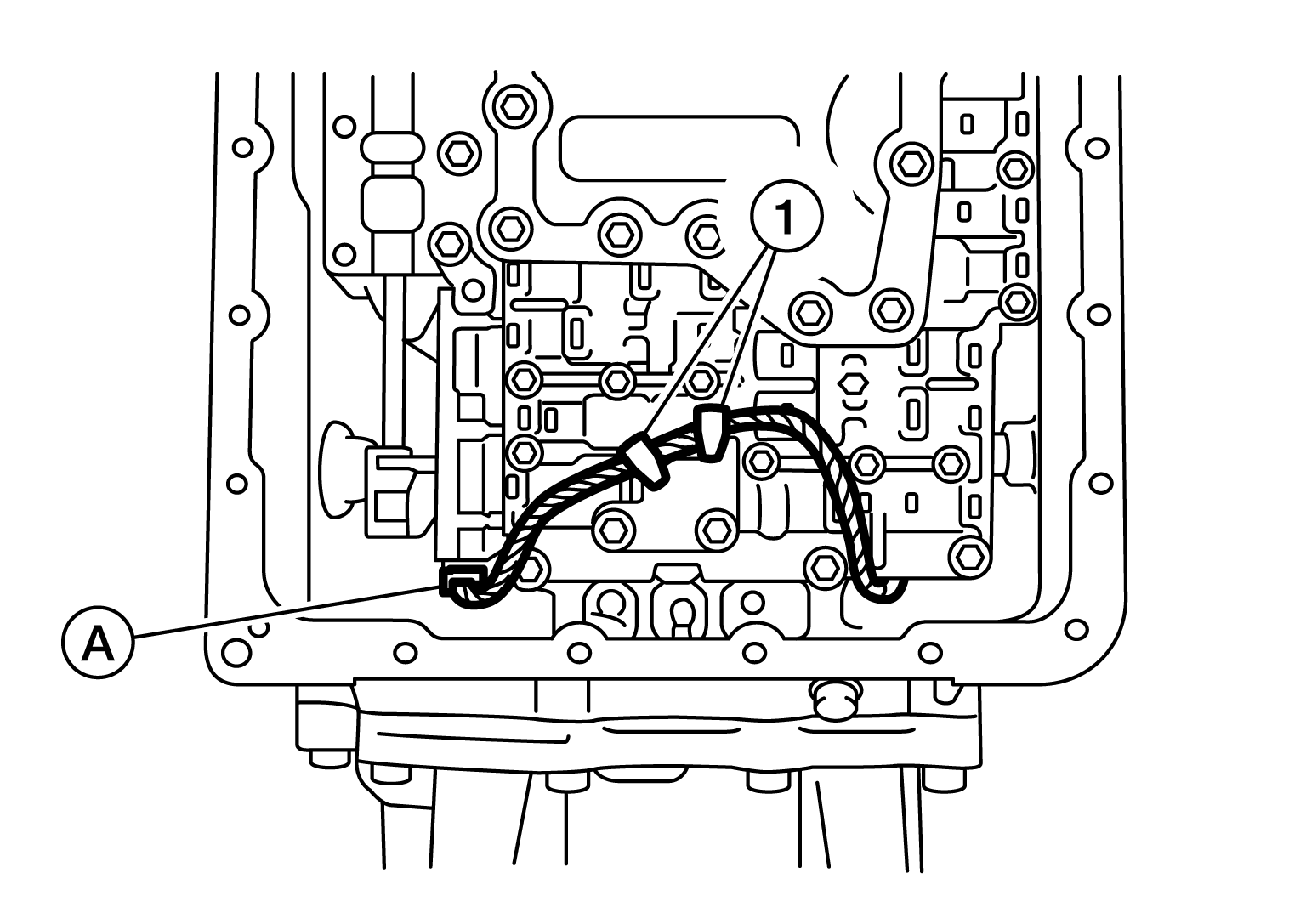

  7. Disconnect output speed sensor connector (A).
    GNSAWDIA1459Z-459Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Be careful not to damage connector.
  8. Disengage terminal clip (1).
  9. Remove bolts and clip (1) from the control valve & TCM.
    GNSJPDIA1105Z-105Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Vehicle front

    Bolt symbol

    Length mm (in)

    Number of bolts

    A

    43 (1.69)

    3

    B

    40 (1.57)

    2

    C

    54 (2.13)

    6

    D

    50 (1.97)

    2

    E*

    50 (1.97)

    1

    *: Reamer bolt

  10. Remove the control valve & TCM from transmission case.
    GNSJPDIA0012Z-012Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: When removing, be careful with the manual valve (1) notch and manual plate (2) height. Remove it vertically.
  11. Remove joint connector (1) from the control valve & TCM using suitable tool (A).
    GNSJSDIA1718Z-718Courtesy of NISSAN NORTH AMERICA, INC.
  12. Disconnect TCM connector (A).
    GNSJSDIA1813Z-813Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Be careful not to damage connector.
