Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Installation is in the reverse order of removal.

CAUTION:

Do not bend the A/T air breather hose to prevent damage to the hose.
Insert A/T air breather hose to air breather tube all the way to the curve of the tube.

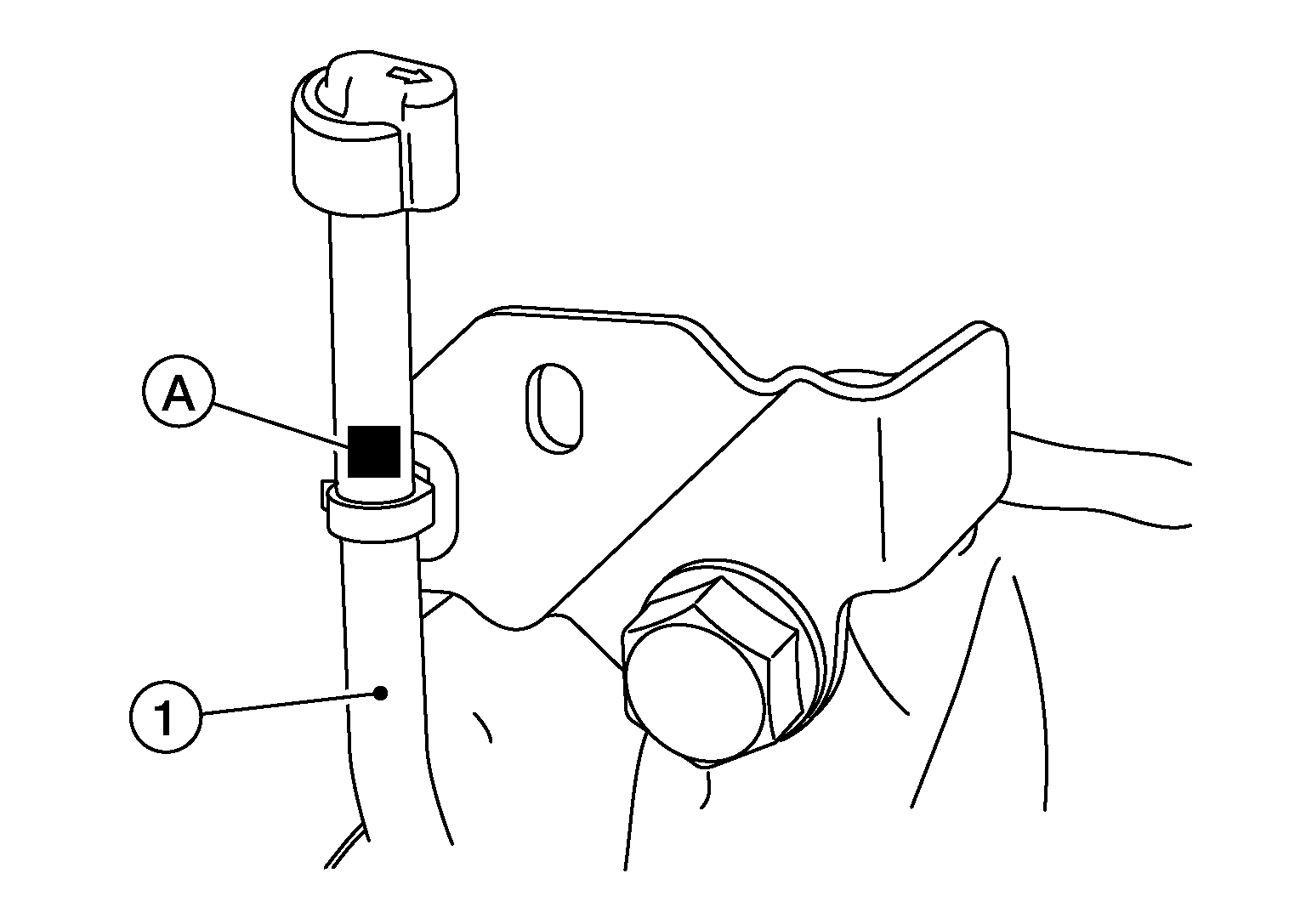

To install air breather hose (1), face paint mark (A) toward the rear of the vehicle as shown.

Courtesy of NISSAN NORTH AMERICA, INC.

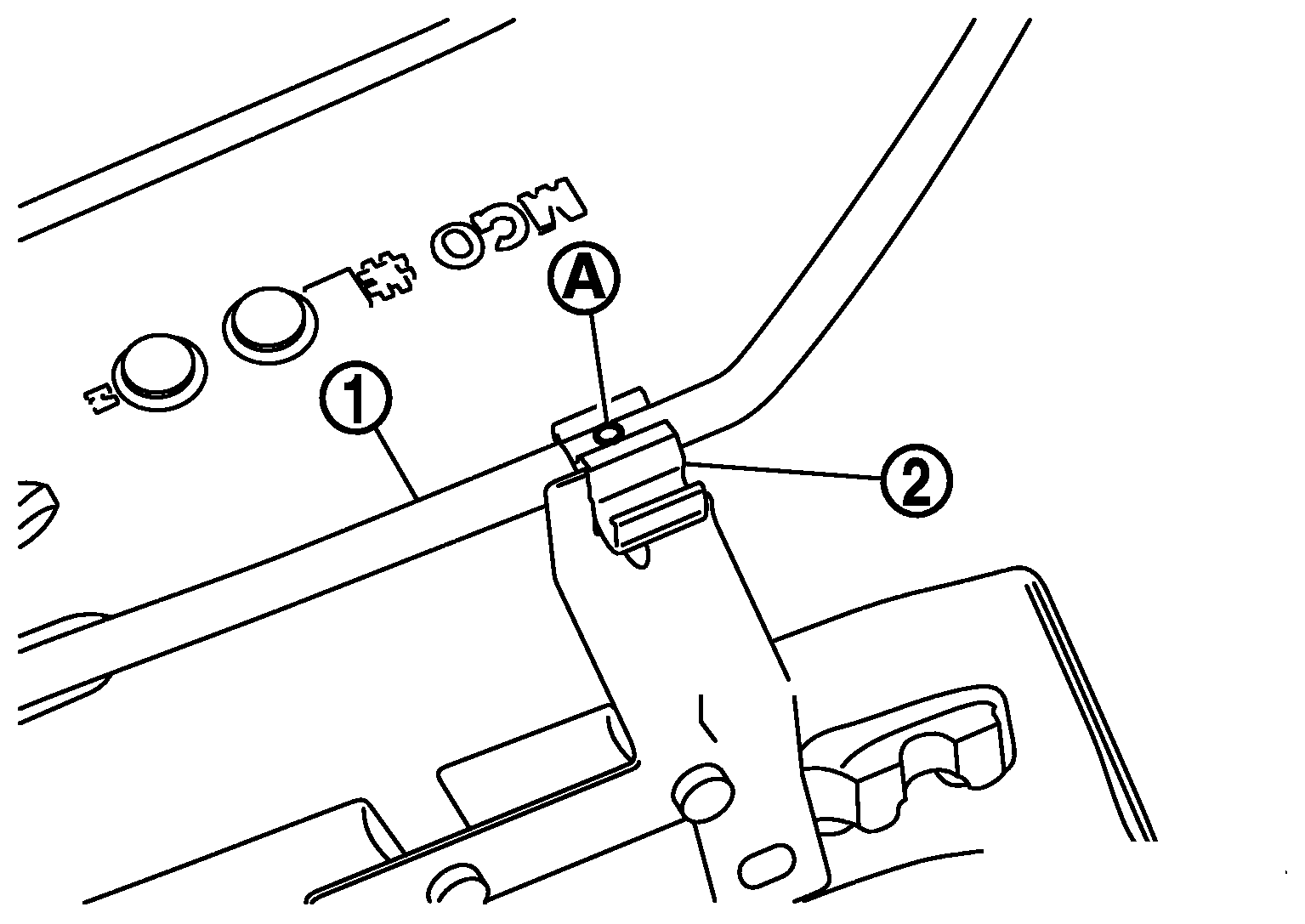

To fix A/T air breather hose (1) to the clip (2), face the A/T air breather hose paint mark (A) upward and observe the installation position shown.

Courtesy of NISSAN NORTH AMERICA, INC.

Insert A/T air breather hose (1) to air breather tube (2) so that the paint mark (A) is facing upward.

Courtesy of NISSAN NORTH AMERICA, INC.
