Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the steering column covers. Refer to Removal and Installation .

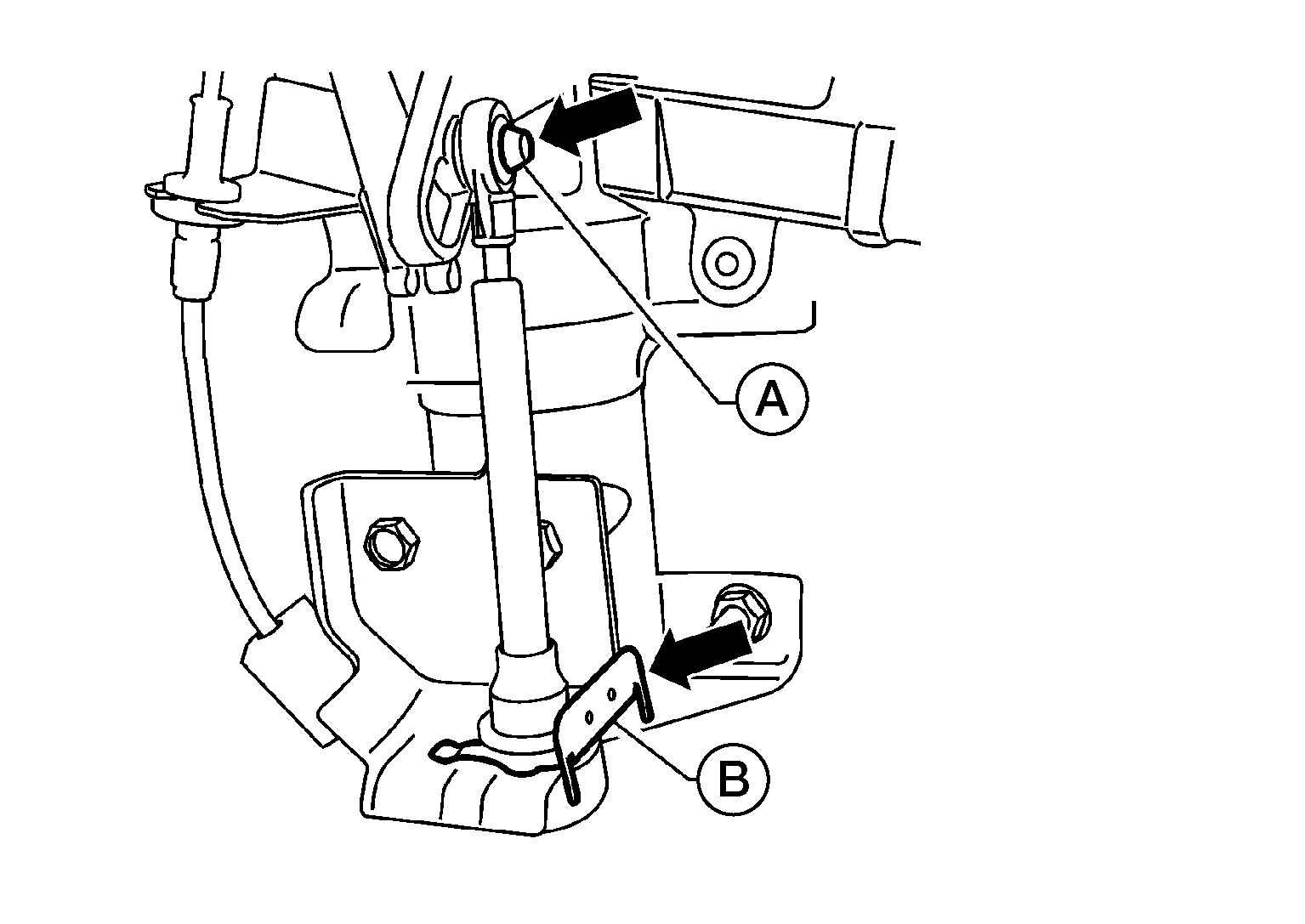

  2. Remove the lock plate (B) and remove the control cable from A/T shift selector pin (A).
    GNSAWDIA0917Z-917Courtesy of NISSAN NORTH AMERICA, INC.
  3. Disconnect the harness connector from shift lock.
  4. Disconnect key interlock cable from A/T shift selector.
  5. Remove the A/T shift selector bolts then remove A/T shift selector.
