Section 8 (Automatic Transmission (Re7R01B) (2 Of 2))
>>
Removal And Installation
>>
A/T Shift Selector
>>

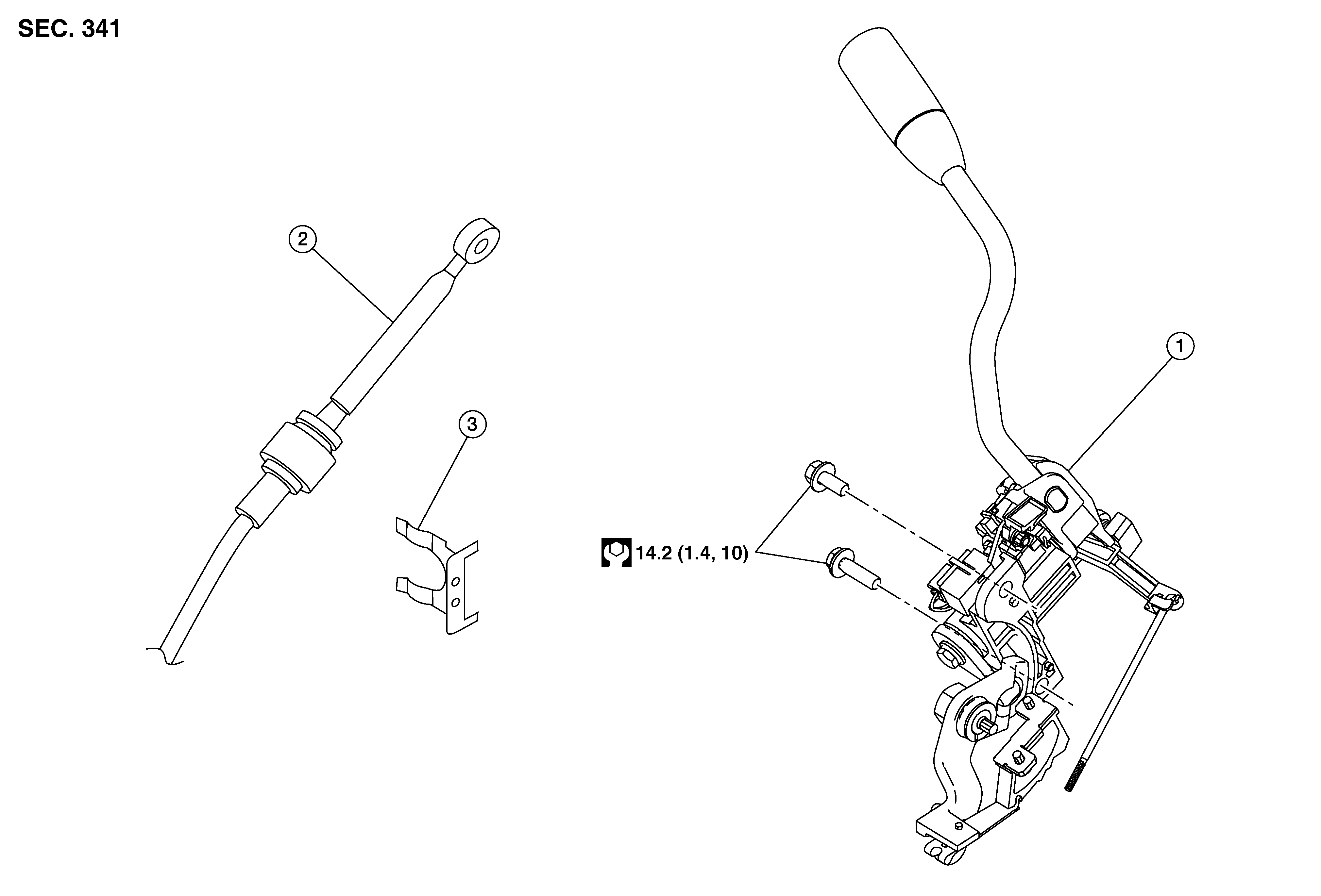

Exploded View
Exploded View
WARNING:
This page is about a different variant/trim than selected.
Courtesy of NISSAN NORTH AMERICA, INC.
1.
A/T shift selector
2.
Control cable
3.
Lock plate
Courtesy of NISSAN NORTH AMERICA, INC.
