Section 6 (Engine Control System (5.6L) (3 Of 3))
>>
Removal And Installation
>>
VVEL Control Module
>>
Removal and Installation
>>
Exploded View
Exploded View
WARNING:
This page is about a different variant/trim than selected.

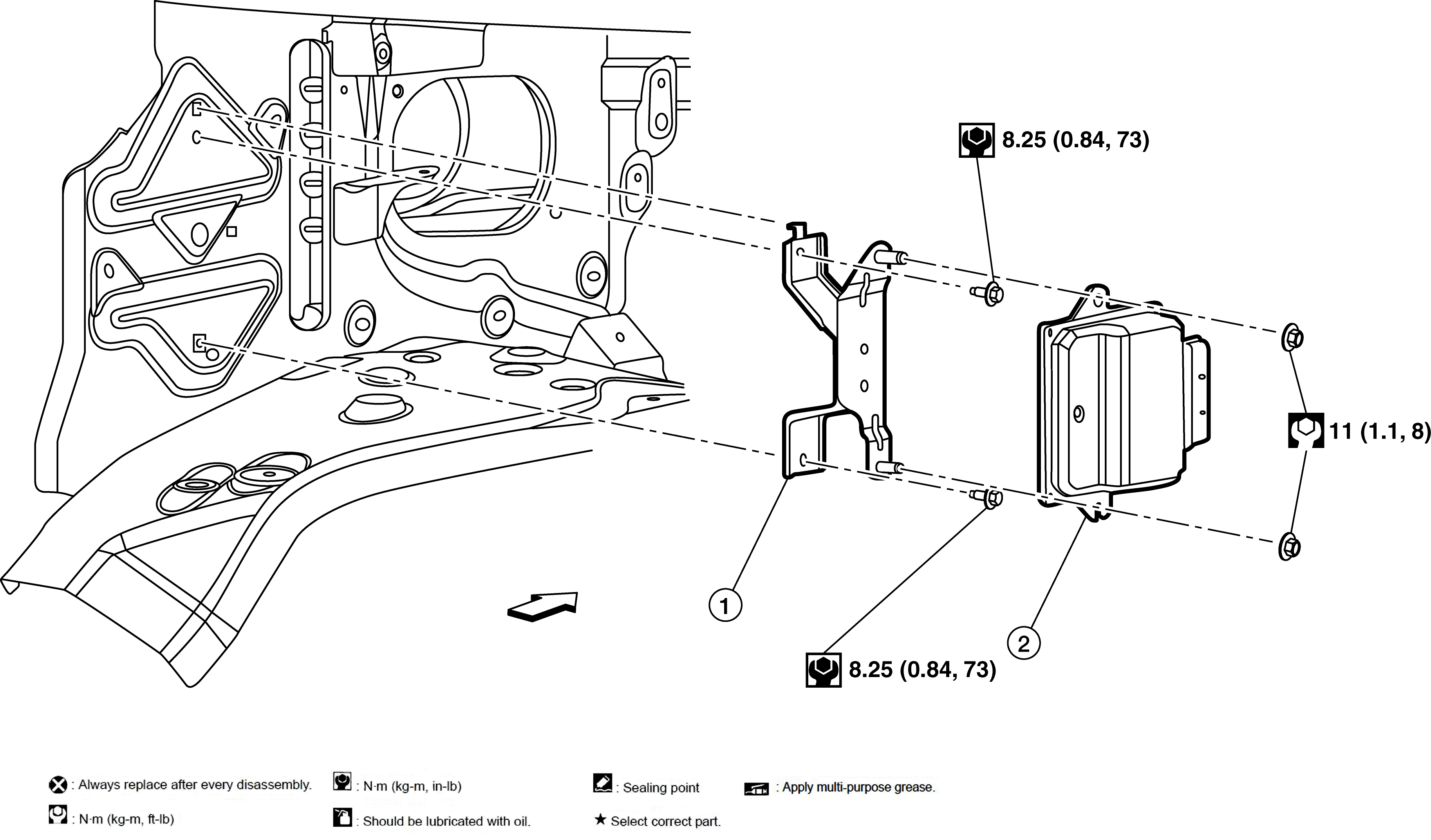

Fig 1: VVEL Control Module With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
VVEL control module bracket
2.
VVEL control module
Front
Courtesy of NISSAN NORTH AMERICA, INC.
