Exploded View

WARNING: This page is about a different variant/trim than selected.

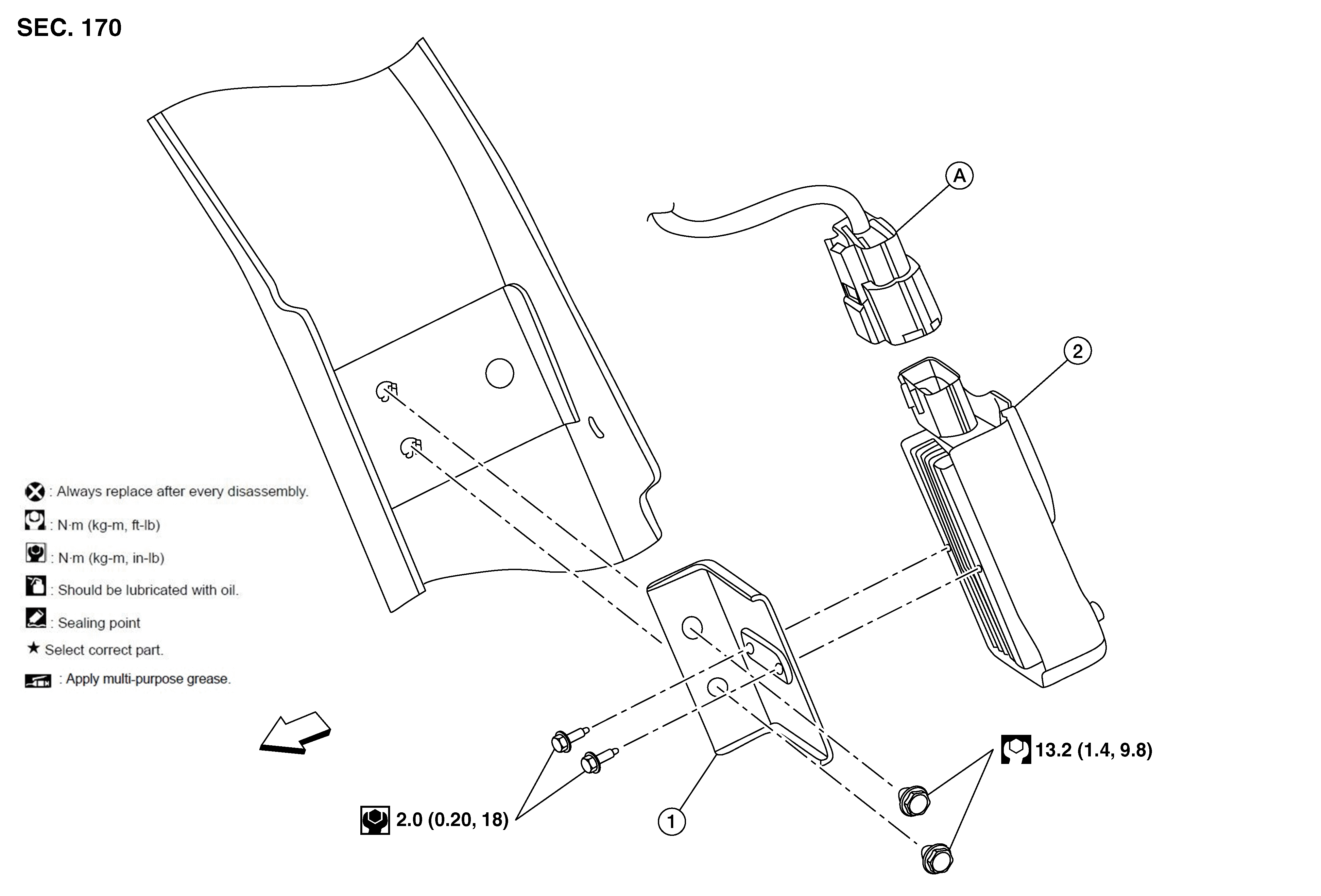

Fig 1: Fuel Pump Control Module (FPCM) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Fuel pump control module bracket	2.	Fuel pump control module	A.	Harness connector
	Front

REMOVAL

Disconnect the harness connector from fuel pump control module.
Remove bolts, and fuel pump control module and bracket assembly from vehicle.
Remove screws, and fuel pump control module from fuel pump control module bracket (if necessary).
