Ignition Timing: Inspection
WARNING: This page is about a different variant/trim than selected.
- CHECK IGNITION TIMING

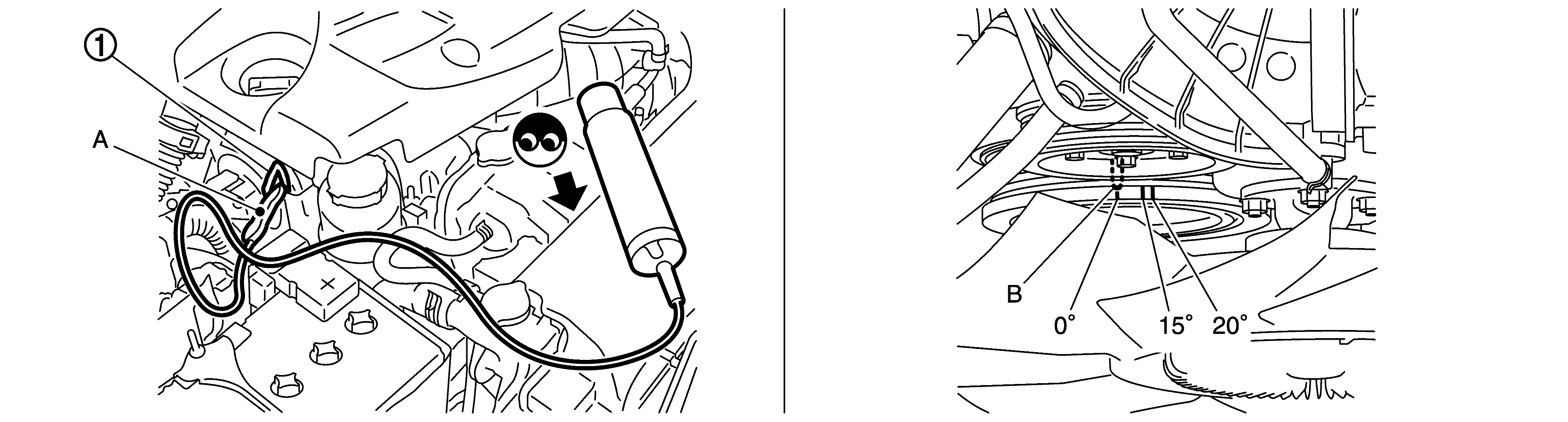

- Attach timing light to loop wire as shown.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Loop wire
|
|
A.
|
Timing light
|
B.
|
Timing indicator
|
- Check ignition timing.
INSPECTION END
