Section 5 (Engine Control System (DTC/Circuit Diagnosis) (5.6L) (1 Of 6))
>>
DTC/Circuit Diagnosis
>>
Trouble Diagnosis - Specification Value
>>
DTC Diagnosis Procedure
>>

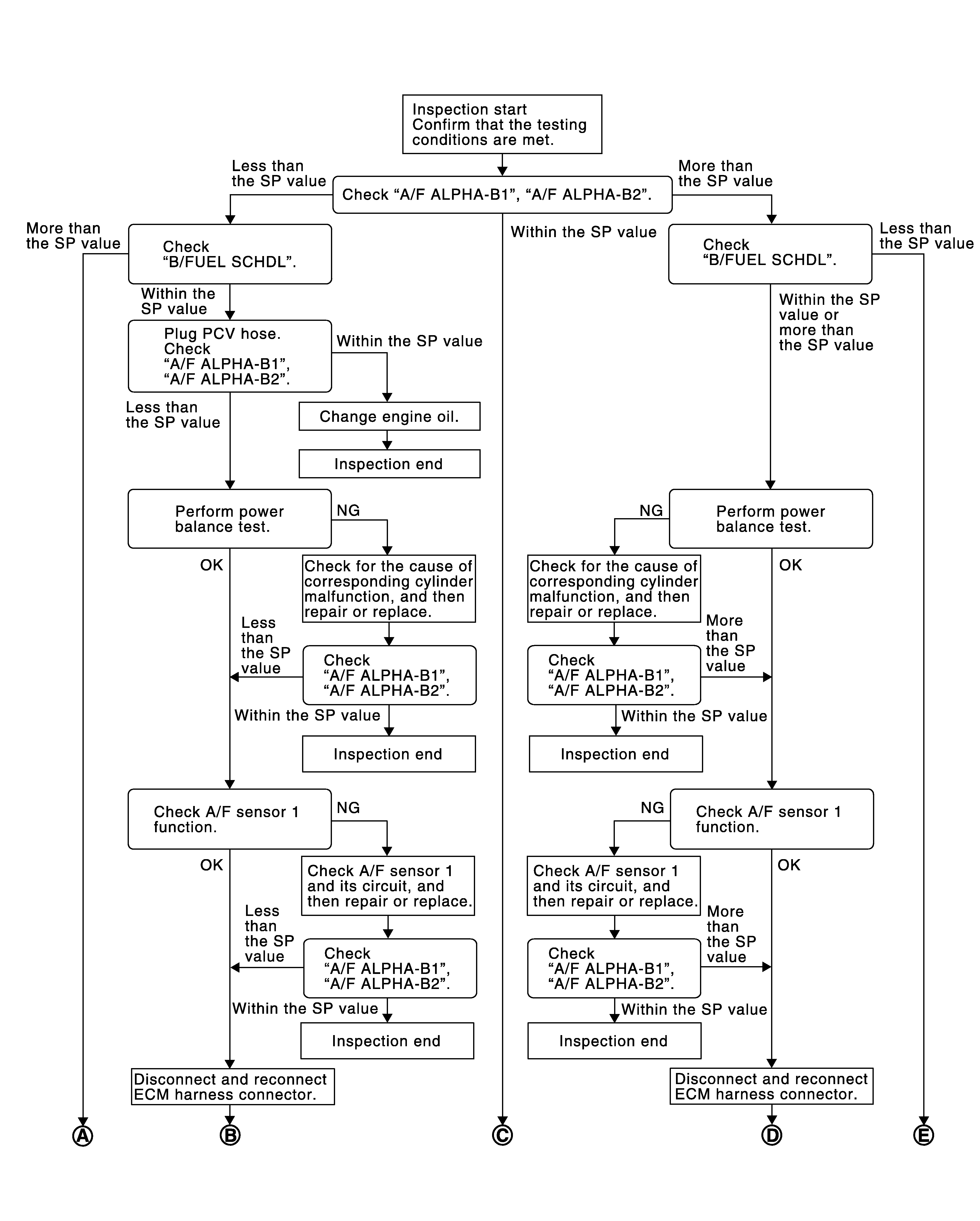

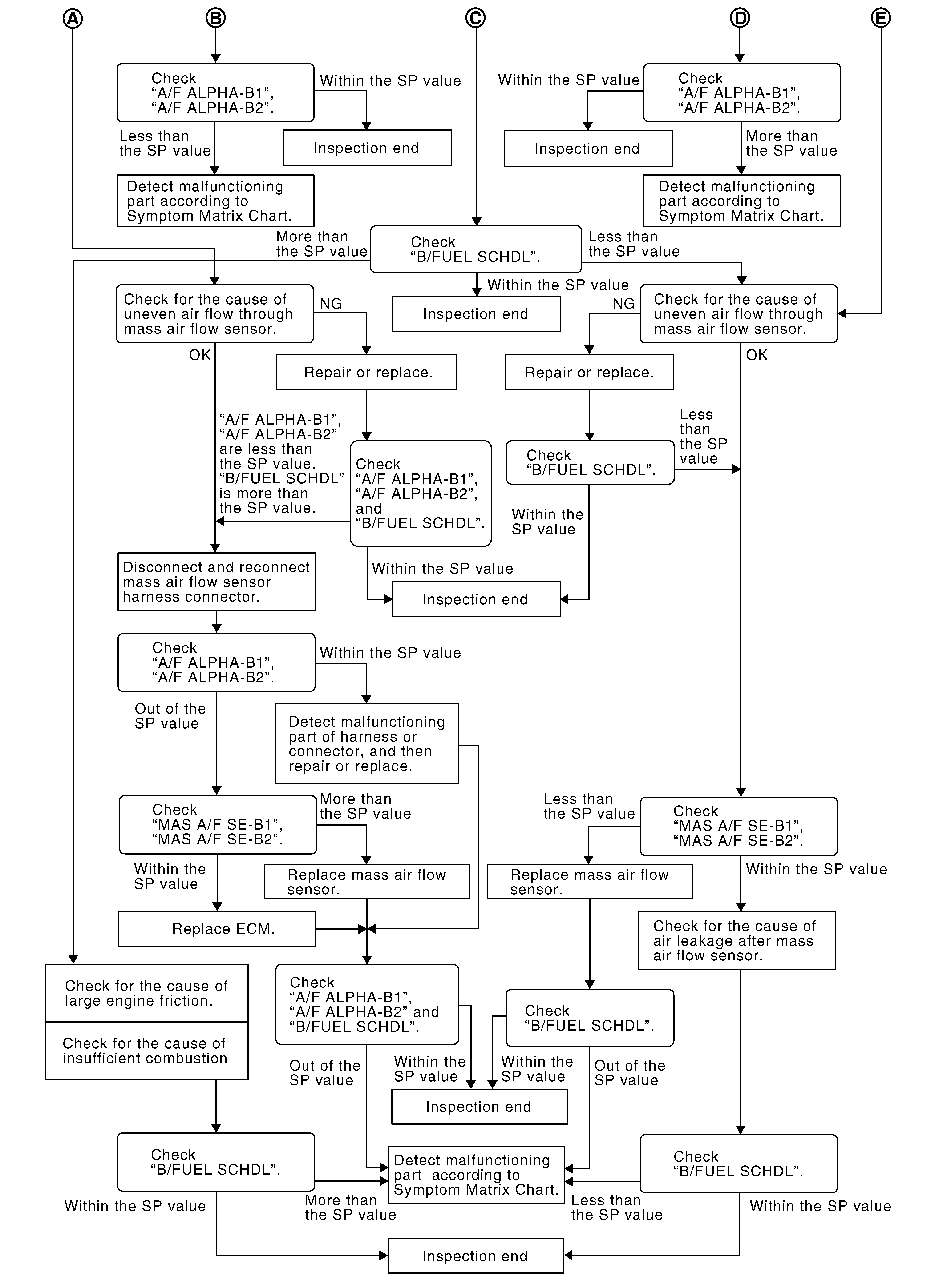

Overall Sequence
Overall Sequence
WARNING:
This page is about a different variant/trim than selected.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
