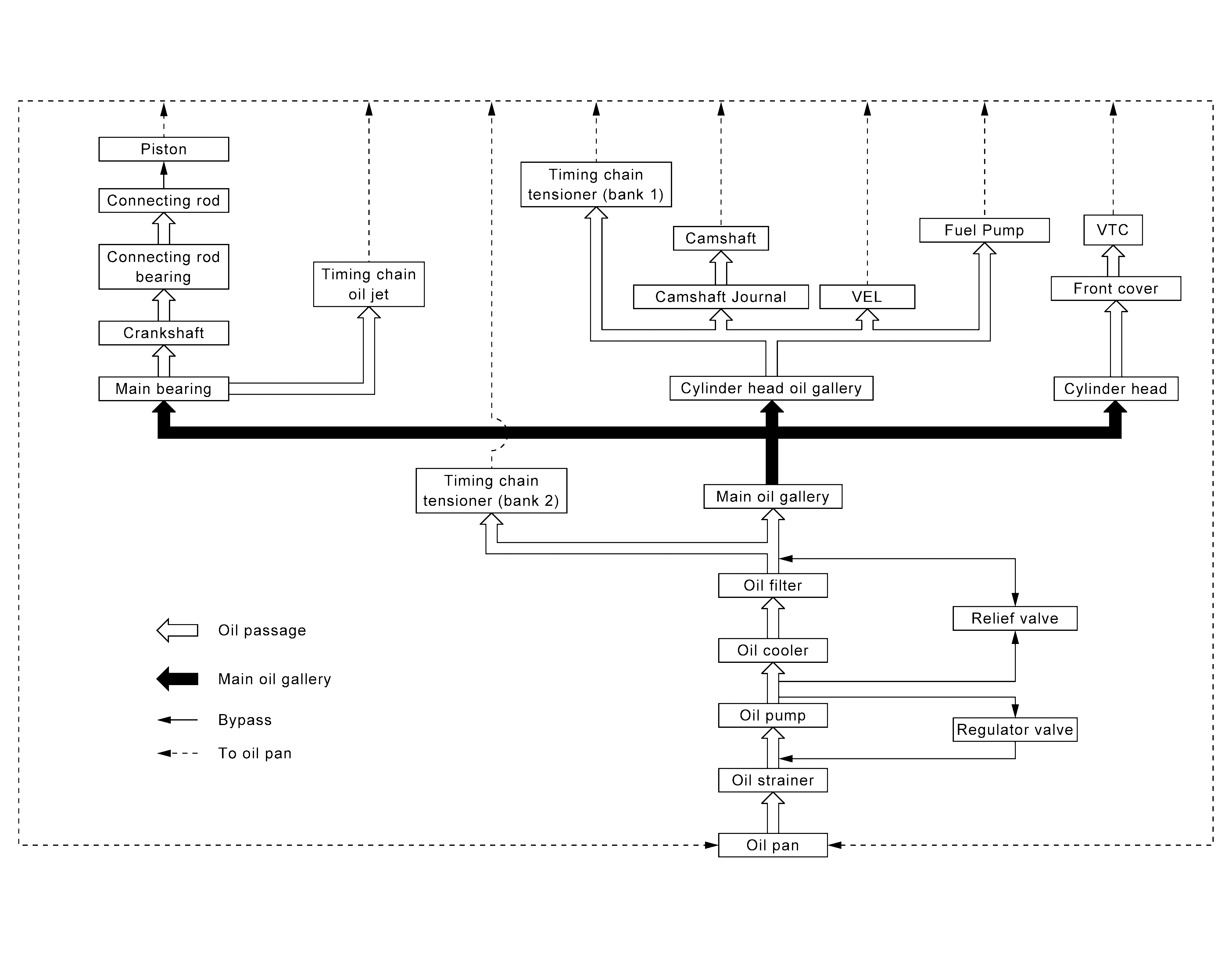

Engine Lubrication System Schematic

WARNING: This page is about a different variant/trim than selected.

GNSJSBIA7280GB-280

Courtesy of NISSAN NORTH AMERICA, INC.
