Exploded View

WARNING: This page is about a different variant/trim than selected.

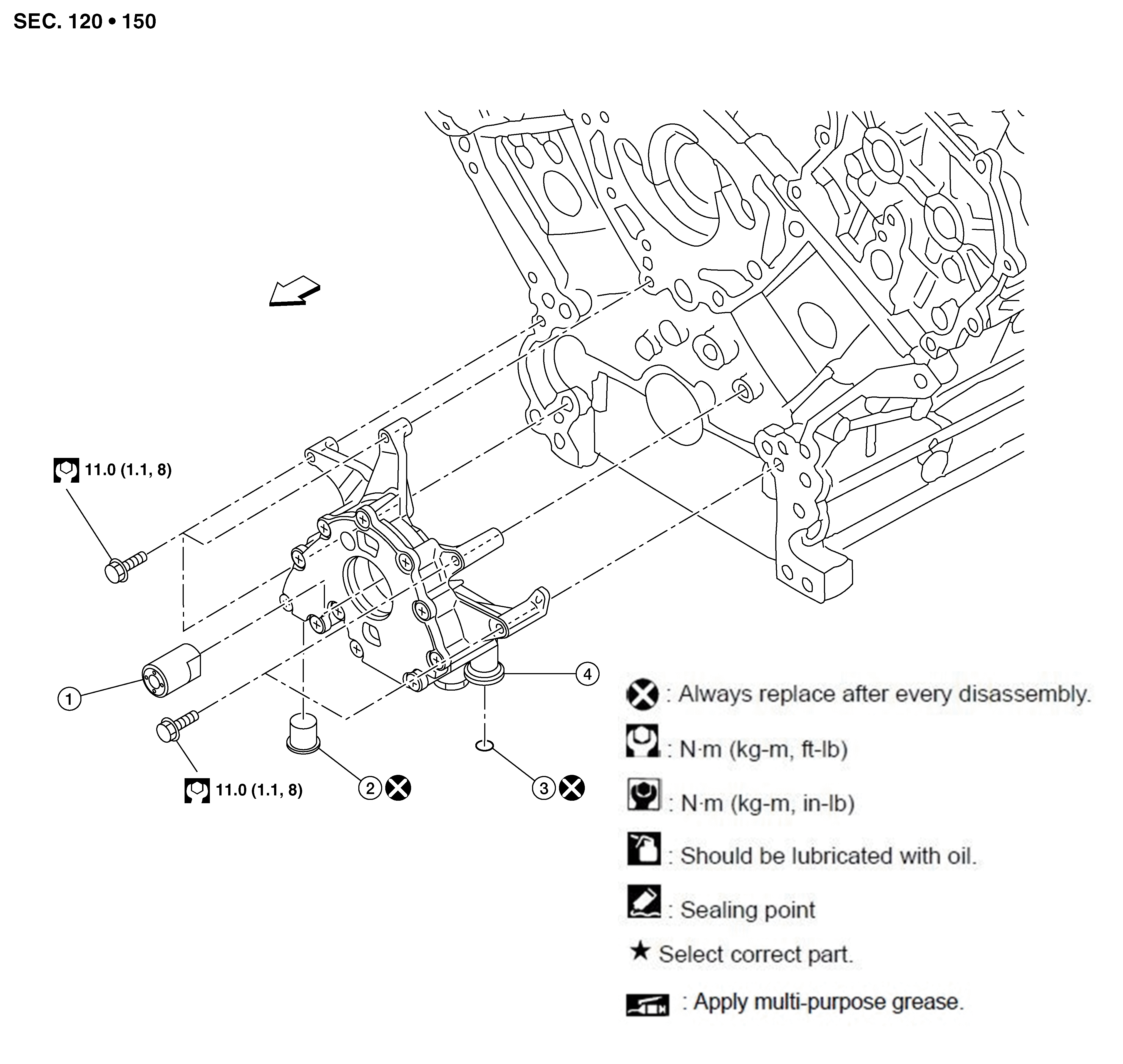

Fig 1: Oil Pump With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Oil pump drive spacer	2.	O-ring	3.	O-ring
4.	Oil pump assembly		Front
