Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.

Drain engine coolant. Refer to Changing Engine Coolant .
Remove front under cover. Refer to Removal and Installation .
Disconnect water hoses from oil cooler.
CAUTION: Perform this step when engine is cold.

NOTE: When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.
Remove oil filter. Refer to Removal and Installation .
Loosen oil cooler bolts in the reverse of the sequence shown and remove oil cooler.

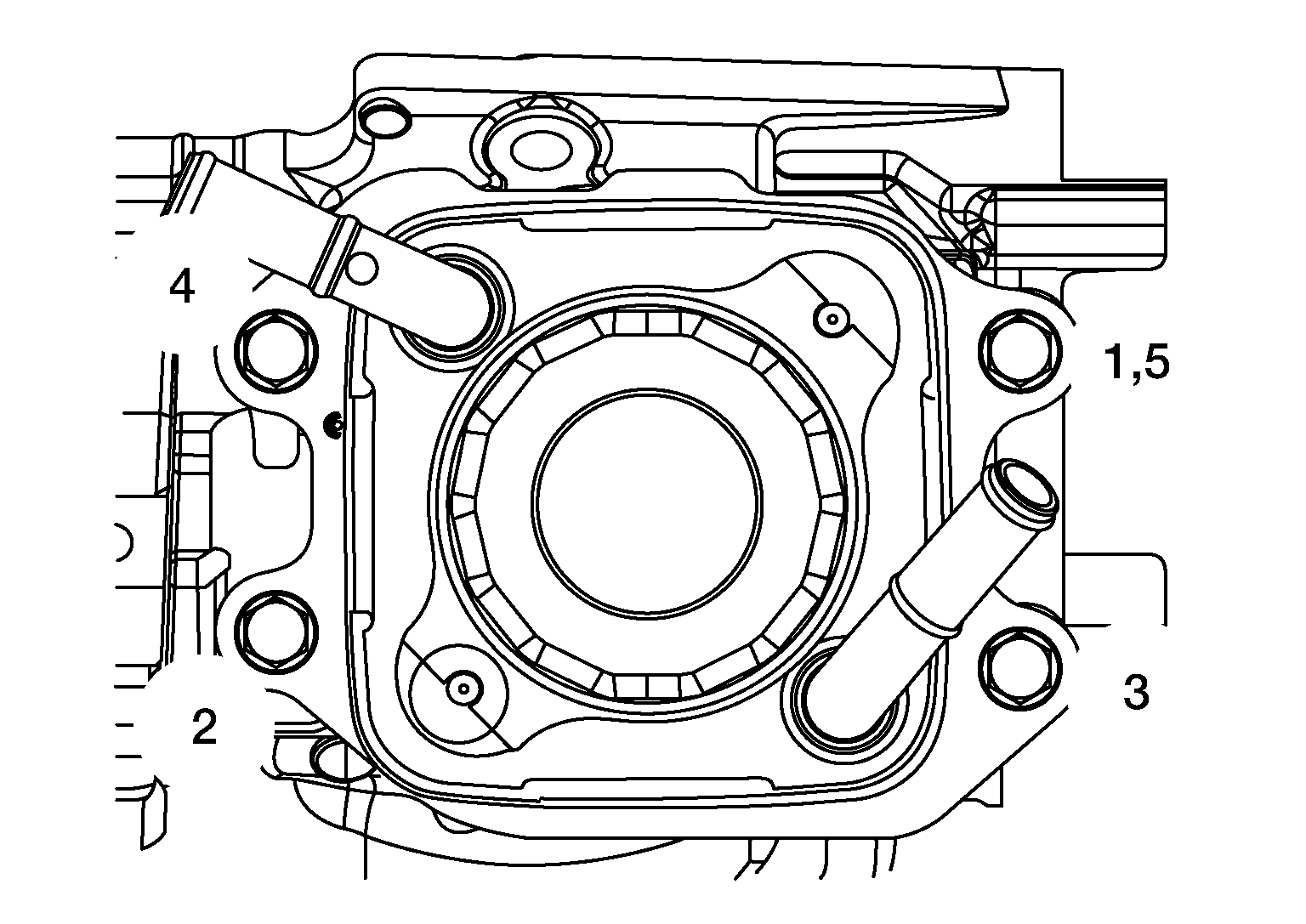

Fig 1: Oil Cooler Bolts Tightening Sequence
Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: When loosening, disregard number 5.
