Exploded View

WARNING: This page is about a different variant/trim than selected.

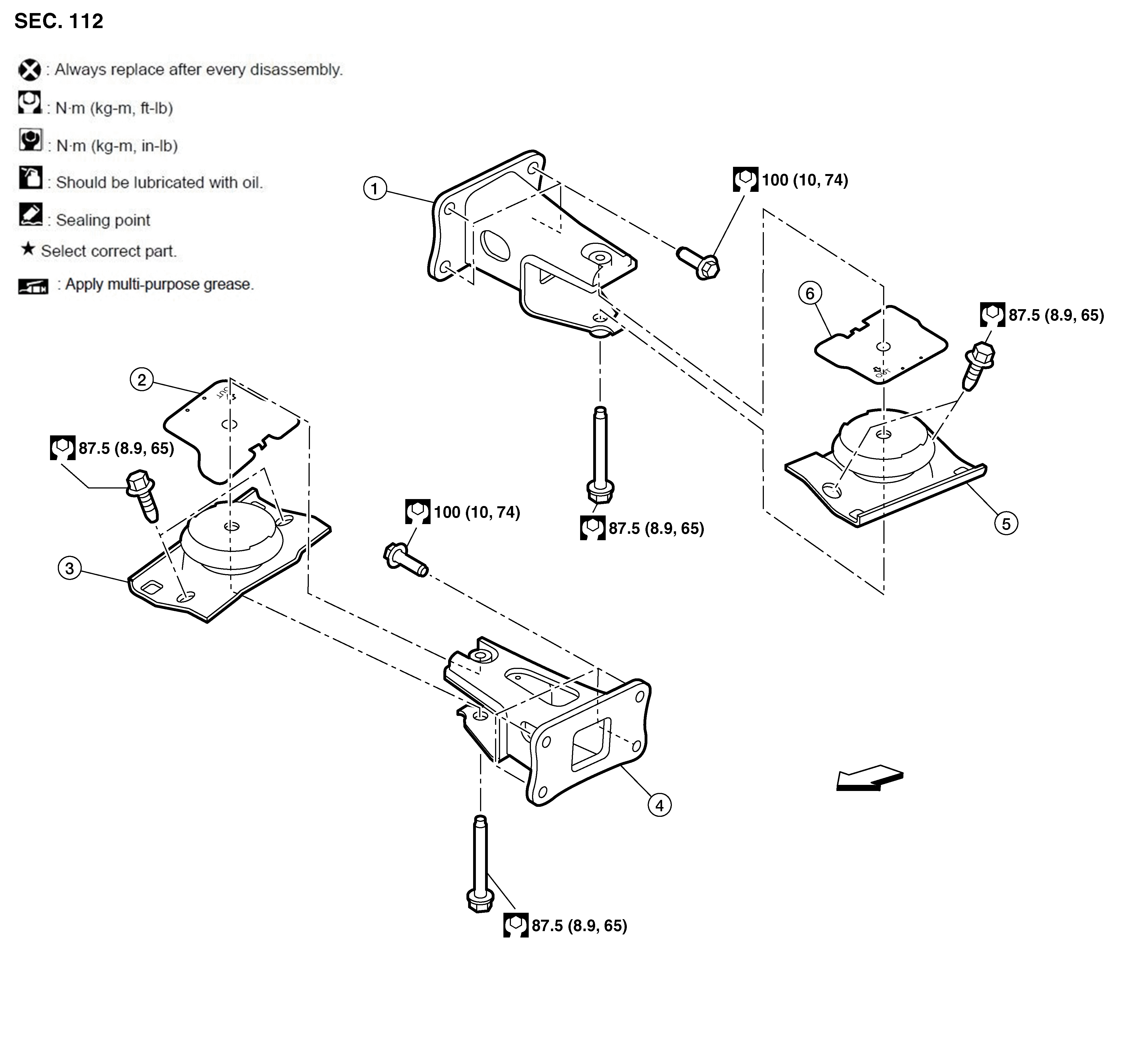

Fig 1: Engine Assembly With Torque Specifications
GNSAWBIA3002Z-002Courtesy of NISSAN NORTH AMERICA, INC.

1.

Engine mounting bracket (LH)

2.

Heat shield plate (RH)

3.

Engine mounting insulator (RH)

4.

Engine mounting bracket (RH)

5.

Engine mounting insulator (LH)

6.

Heat shield plate (LH)

SYMBOL

Front
