When Cylinder Block Is Reused

WARNING: This page is about a different variant/trim than selected.
  1. Measure the cylinder bore inner diameter. Refer to Cylinder Block .
  2. Determine the bore grade by comparing the measurement with the values under the cylinder bore inner diameter of the "PISTON SELECTION TABLE".

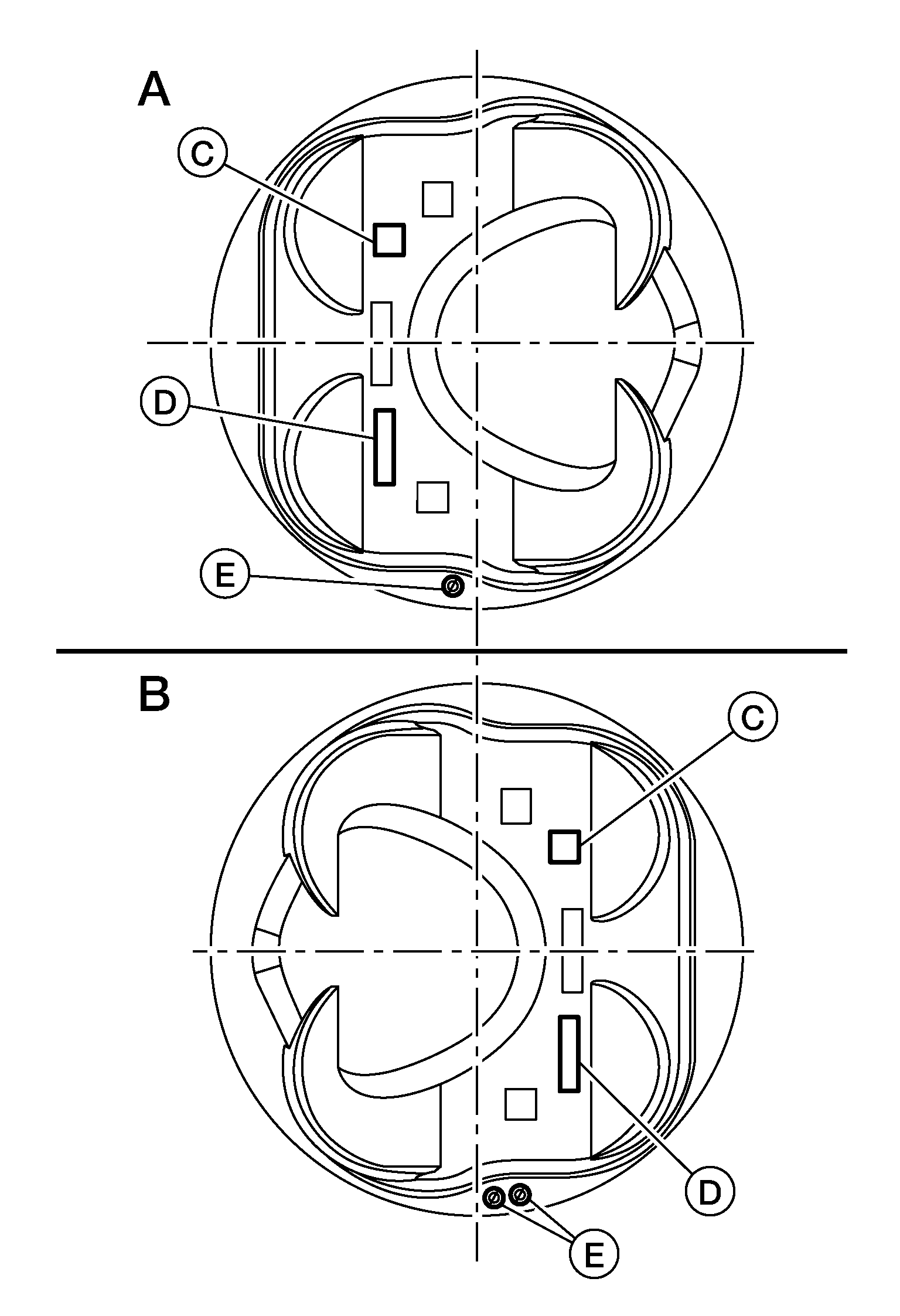

    GNSALBIA2993Z-993Courtesy of NISSAN NORTH AMERICA, INC.

    (A)

    : Bank 2

    (B)

    : Bank 1

    (C)

    : Piston grade

    (D)

    : Identification code

    (E)

    : Front mark
  3. Select piston of the same grade.
