Cylinder Block Distortion
WARNING: This page is about a different variant/trim than selected.
- Using a suitable tool, remove gasket on the cylinder block surface, and also remove engine oil, scale, carbon, or other contamination.CAUTION: Be careful not to allow gasket flakes to enter engine oil or engine coolant passages.

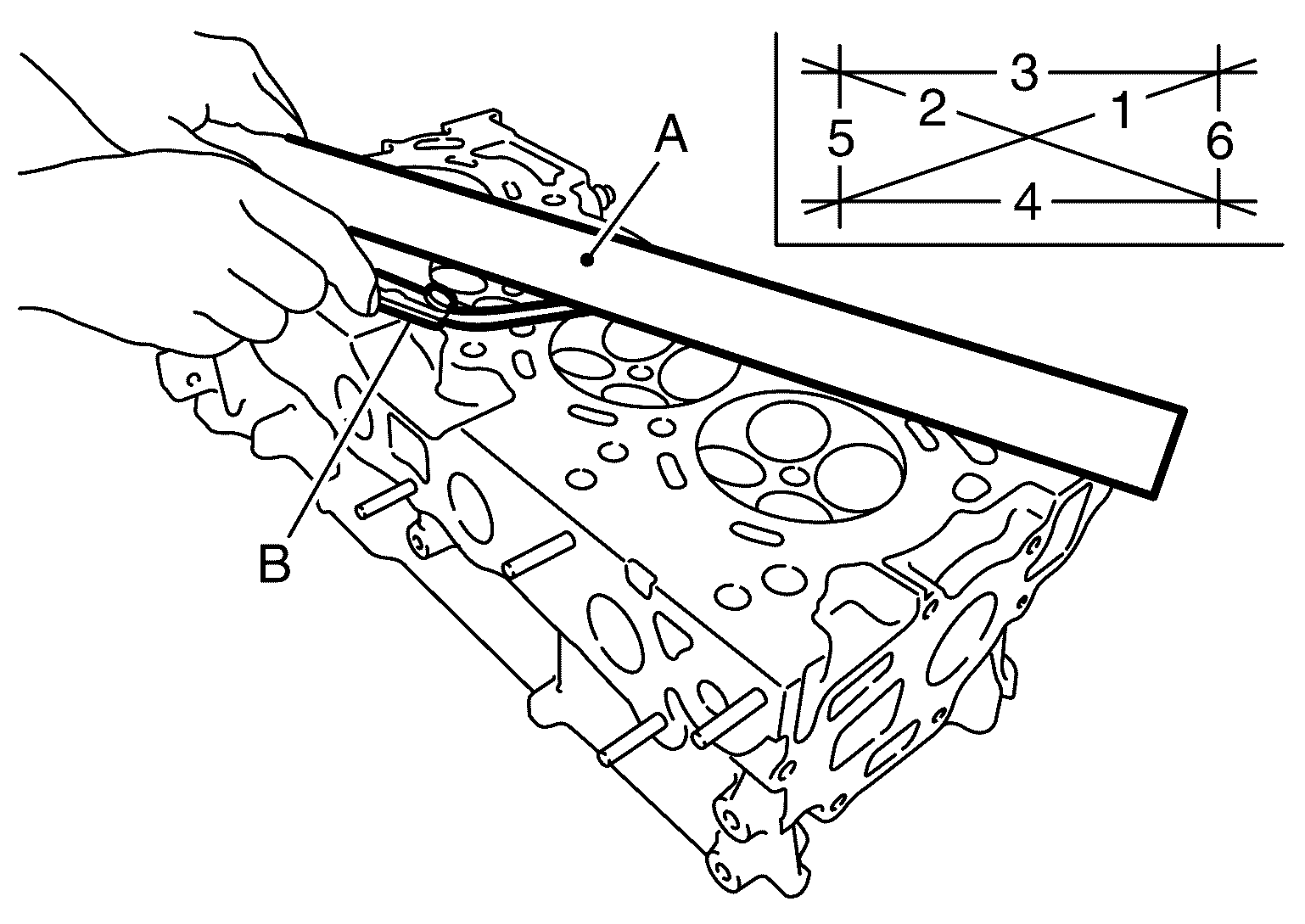

- Measure for distortion at the six locations shown in the illustration using a straight edge (A) and suitable tool (B).
Limit
: Refer to Cylinder Block .
- If it exceeds the limit, replace cylinder block.
