Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect VVEL actuator motor assembly harness connector.

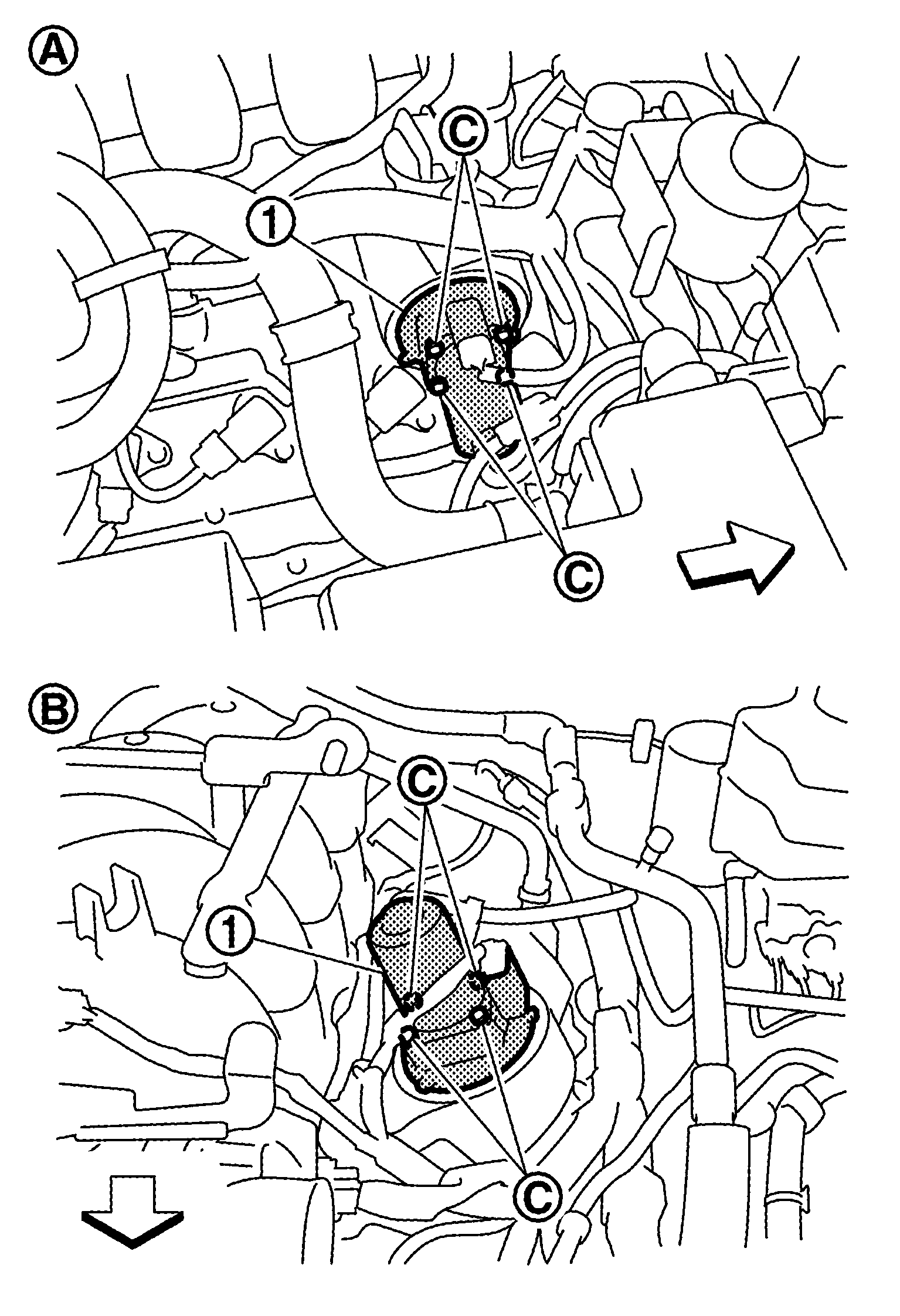

  2. Loosen bolts (C) and then remove VVEL actuator motor assembly (1).
    GNSJPBIA3487Z-487Courtesy of NISSAN NORTH AMERICA, INC.

    (A)

    : Bank 2

    (B)

    : Bank 1

    SYMBOL

    : Engine front

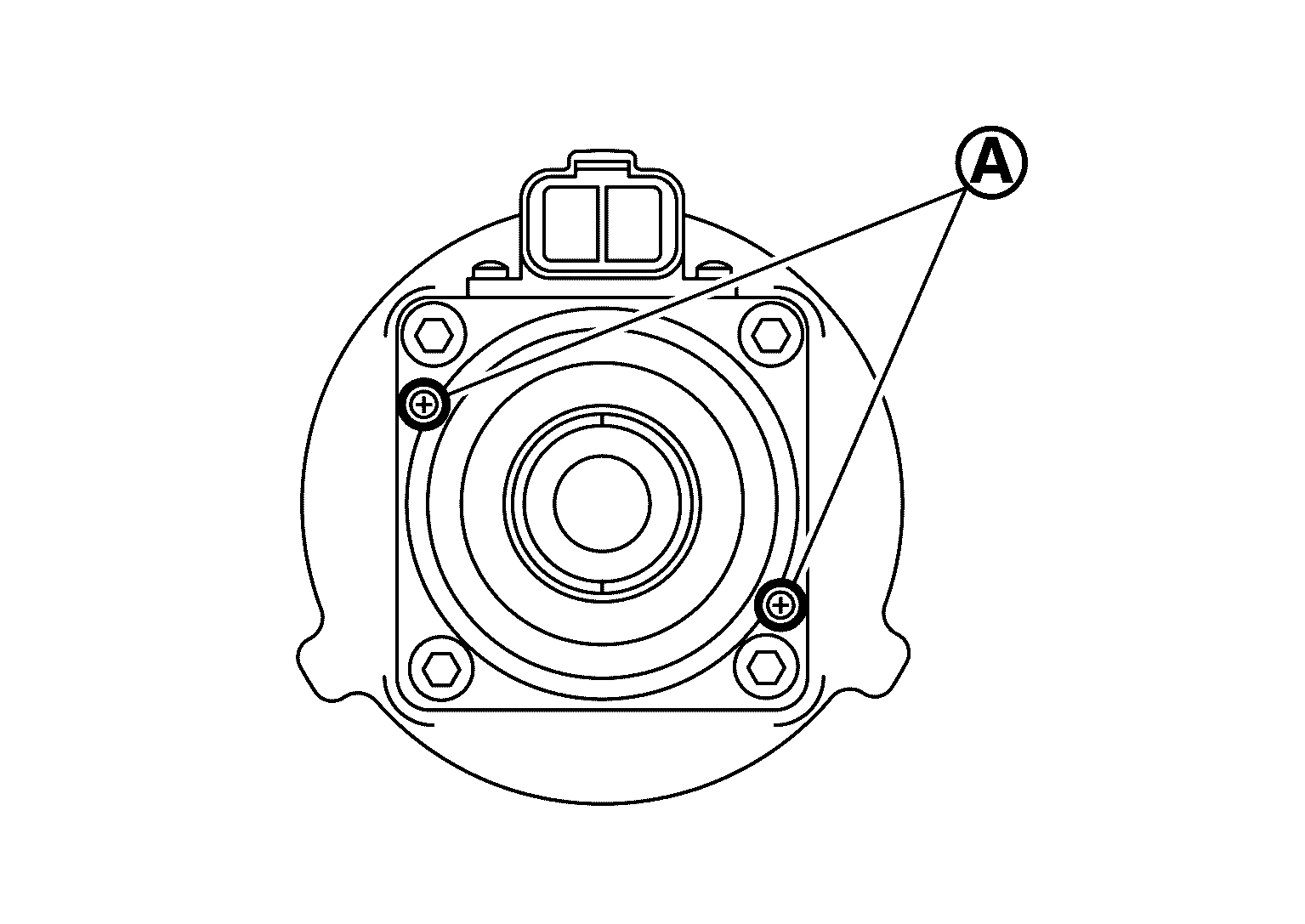

    CAUTION: Do not loosen screws (A) of VVEL actuator motor assembly.
    GNSJPBIA3866Z-866Courtesy of NISSAN NORTH AMERICA, INC.
  3. If removing the VVEL actuator housing assembly, use the following procedure:
    1. Remove rocker cover. Refer to Exploded View .

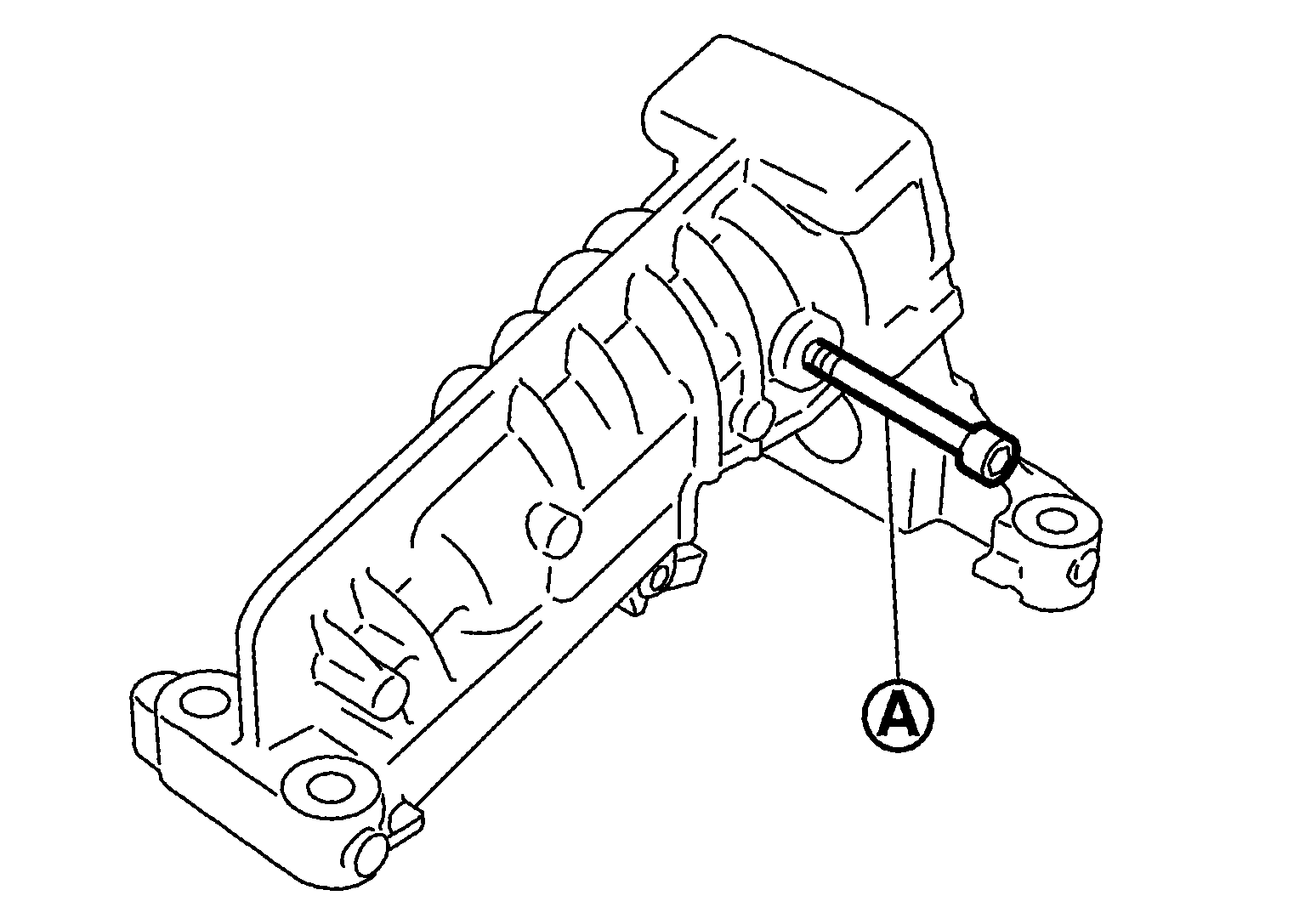

    2. Insert bolt (A) removed in step 2 into VVEL actuator housing assembly.
      GNSJSBIA0529Z-529Courtesy of NISSAN NORTH AMERICA, INC.

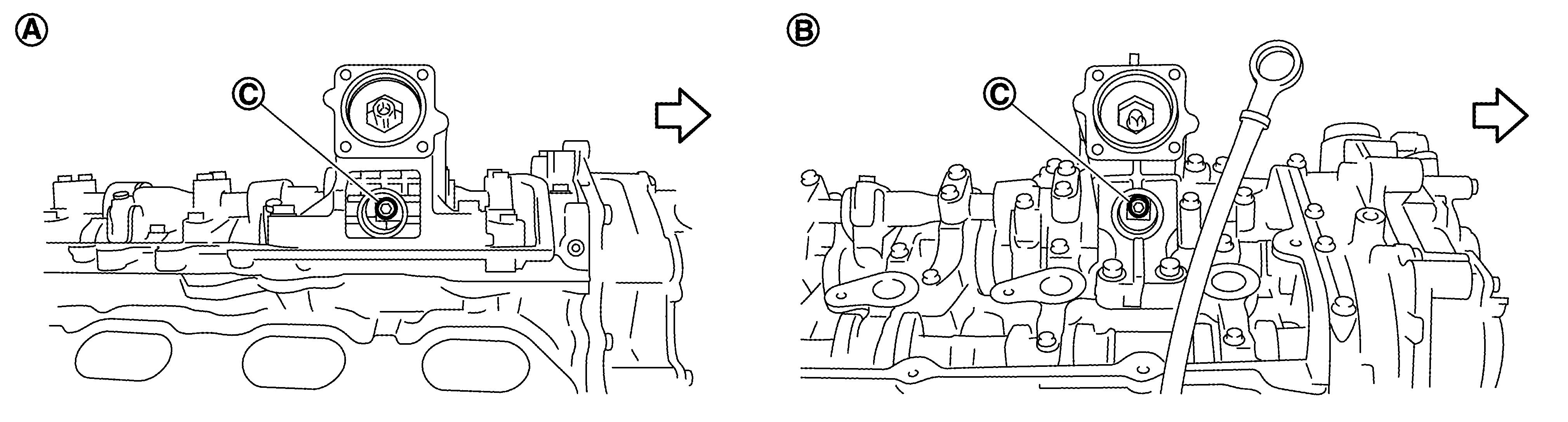

    3. Loosen bolt (C) to disengage the control shaft and the actuator arm.
      GNSJPBIA3498Z-498Courtesy of NISSAN NORTH AMERICA, INC.

      A.

      Bank 1

      B.

      Bank 2

      SYMBOL

      Engine front

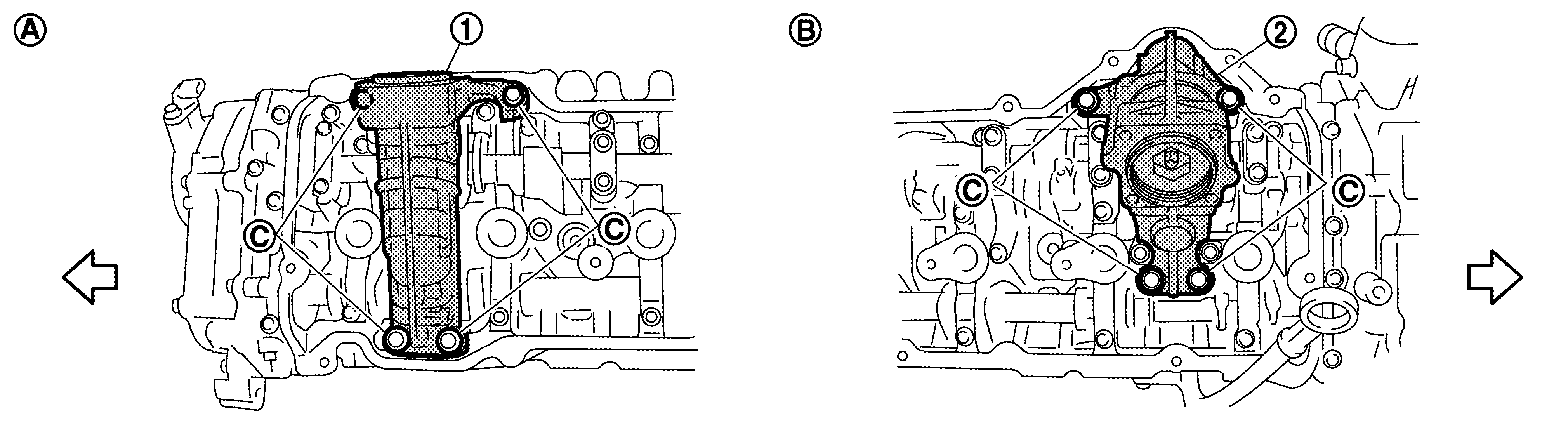

    4. Loosen bolts (C) and then remove VVEL actuator housing assembly.
      GNSJPBIA3499Z-499Courtesy of NISSAN NORTH AMERICA, INC.

      1.

      VVEL actuator housing assembly (bank 1)

      2.

      VVEL actuator housing assembly (bank 2)

      A.

      Bank 1

      B.

      Bank 2

      SYMBOL

      Engine front
