Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Installation is in the reverse order of removal.

CAUTION: Do not reuse gaskets.

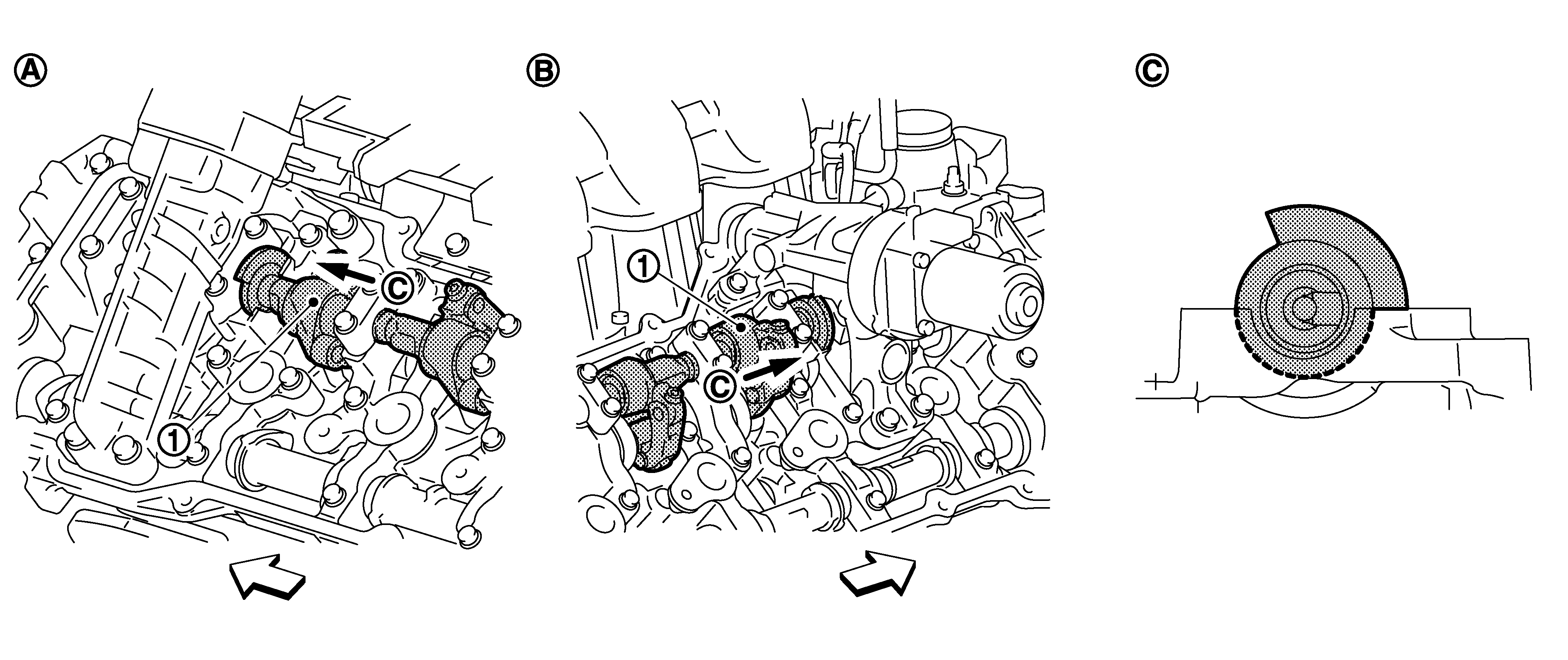

When disengaging the control shaft (1) and the actuator arm, hold the stopper of the control shaft in the position shown in the figure.

Fig 1:

Courtesy of NISSAN NORTH AMERICA, INC.

A.	Bank 1	B.	Bank 2	C.	Control shaft stopper
	: Engine front
