Replacement Procedure
WARNING: This page is about a different variant/trim than selected.
Removal

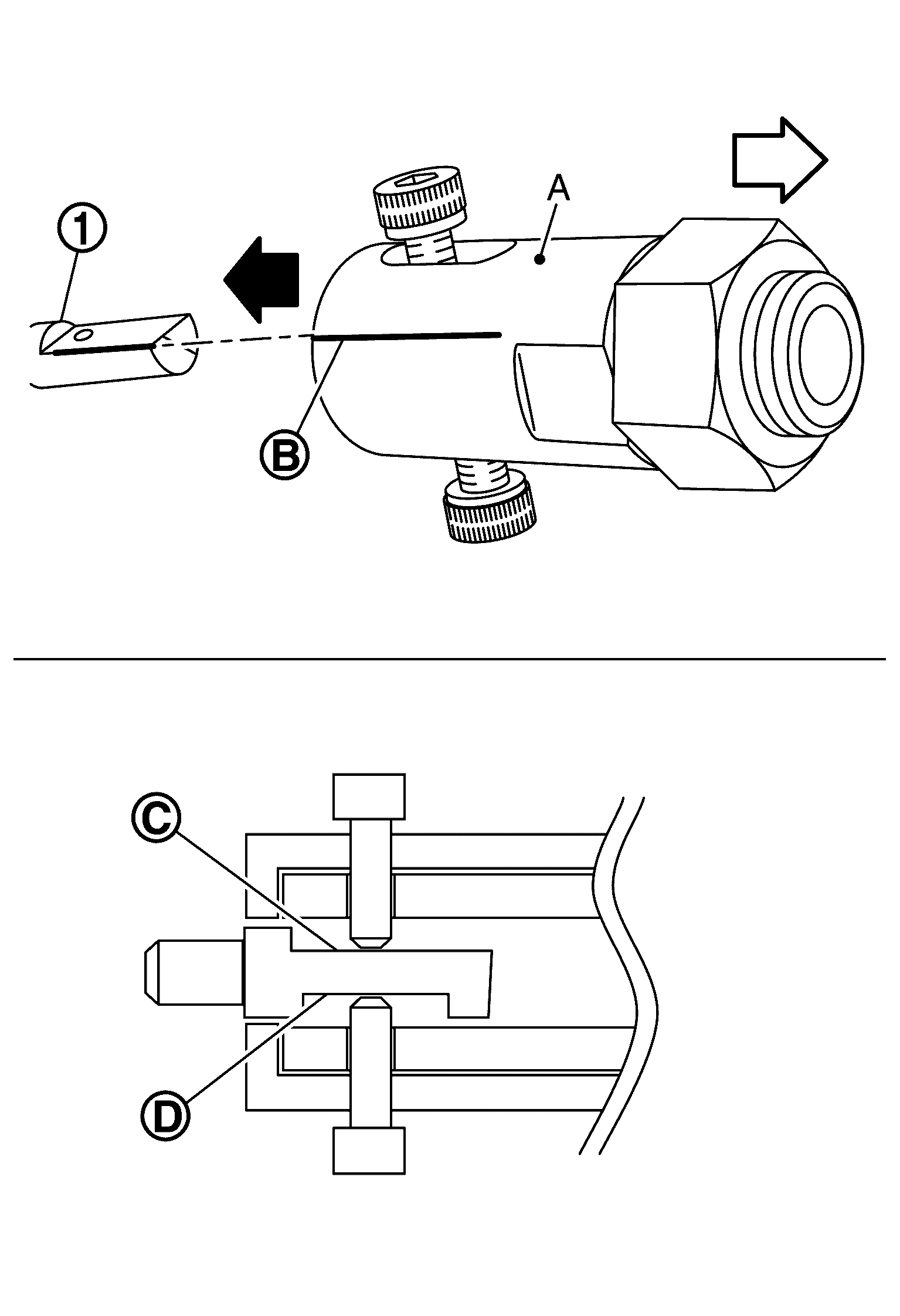

- Turning the base line (B) upwards, insert oil jet [bank 2 (1)] into Tool (A).CAUTION:
- There is no base line before service part is setup. (Base line is applied from service part.)
- Set Tool so that position matches ground-side (D) and flat side (C) shown in the figure.
Tool number (A)
:--(J-51269-1)
: Front

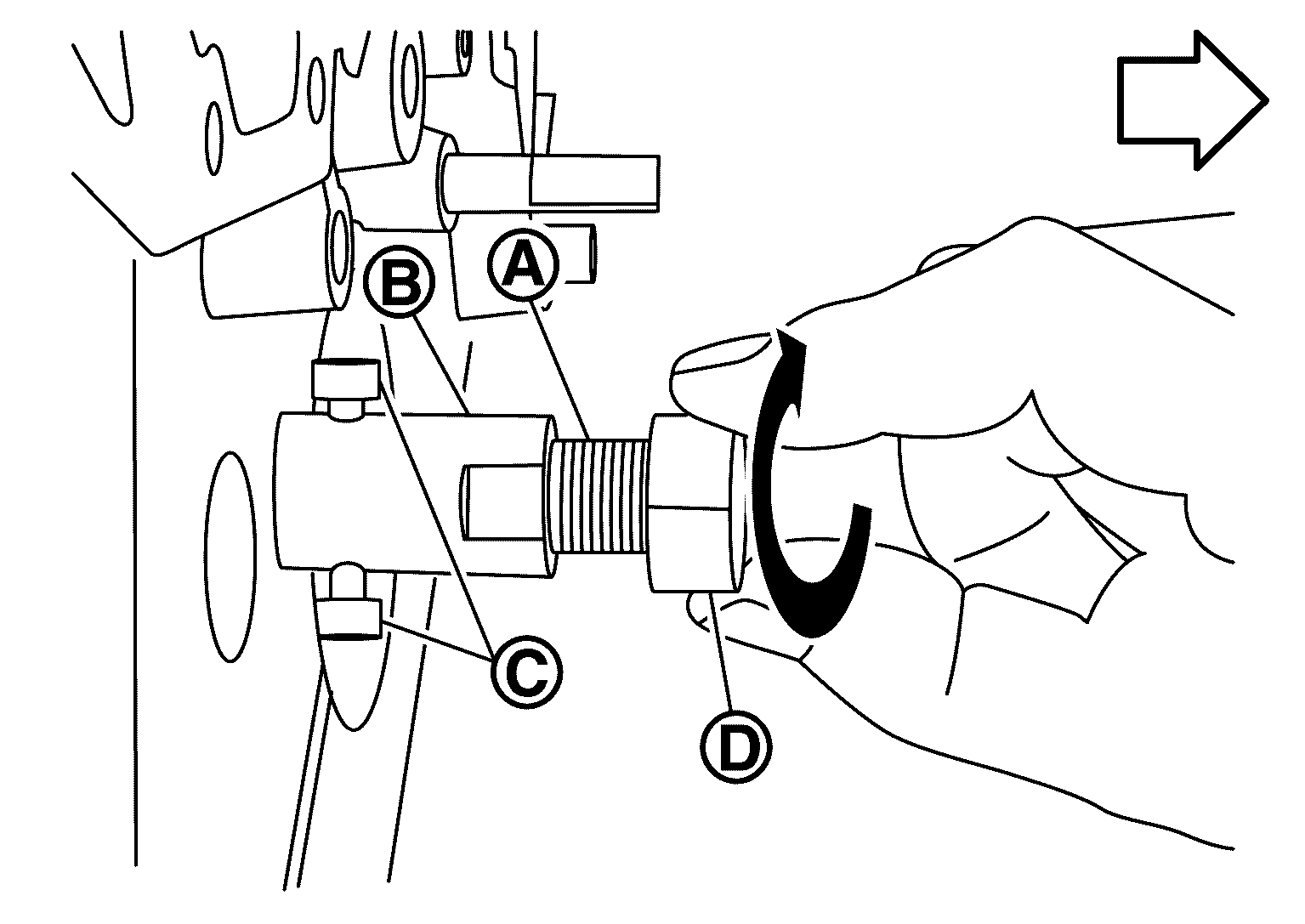

- Press tool inner (A) into tool outer (B) until it bottoms out and tighten bolts (C).
: Front
- Hand tighten nut (D).

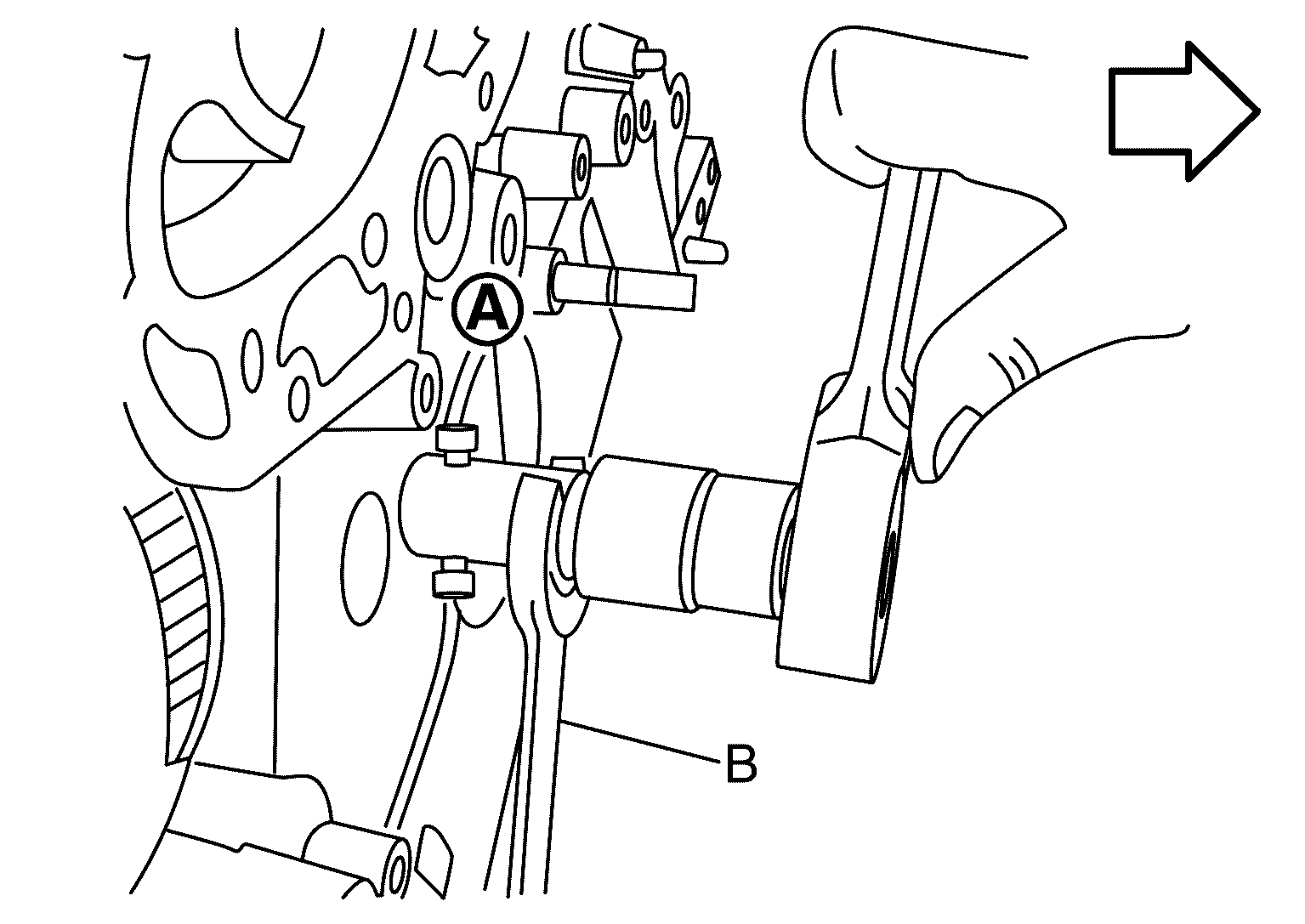

- Hold Tool (A) with a suitable tool (B) and tighten nut to remove oil-jet (bank 2).CAUTION: Beware of enlarging the hole diameter caused by tilting the Tool.
Tool number (A)
:--(J-51269-1)
: Front
Confirm the Hole Diameter
- After removing oil jet (bank 2), use Tool (A) to confirm the hole diameter.NOTE: If Tool is inserted deeper than 3 mm (0.118 in), replace cylinder block and oil-jet.
Tool number (A)
:--(J-51269-1)
: Front
Installation

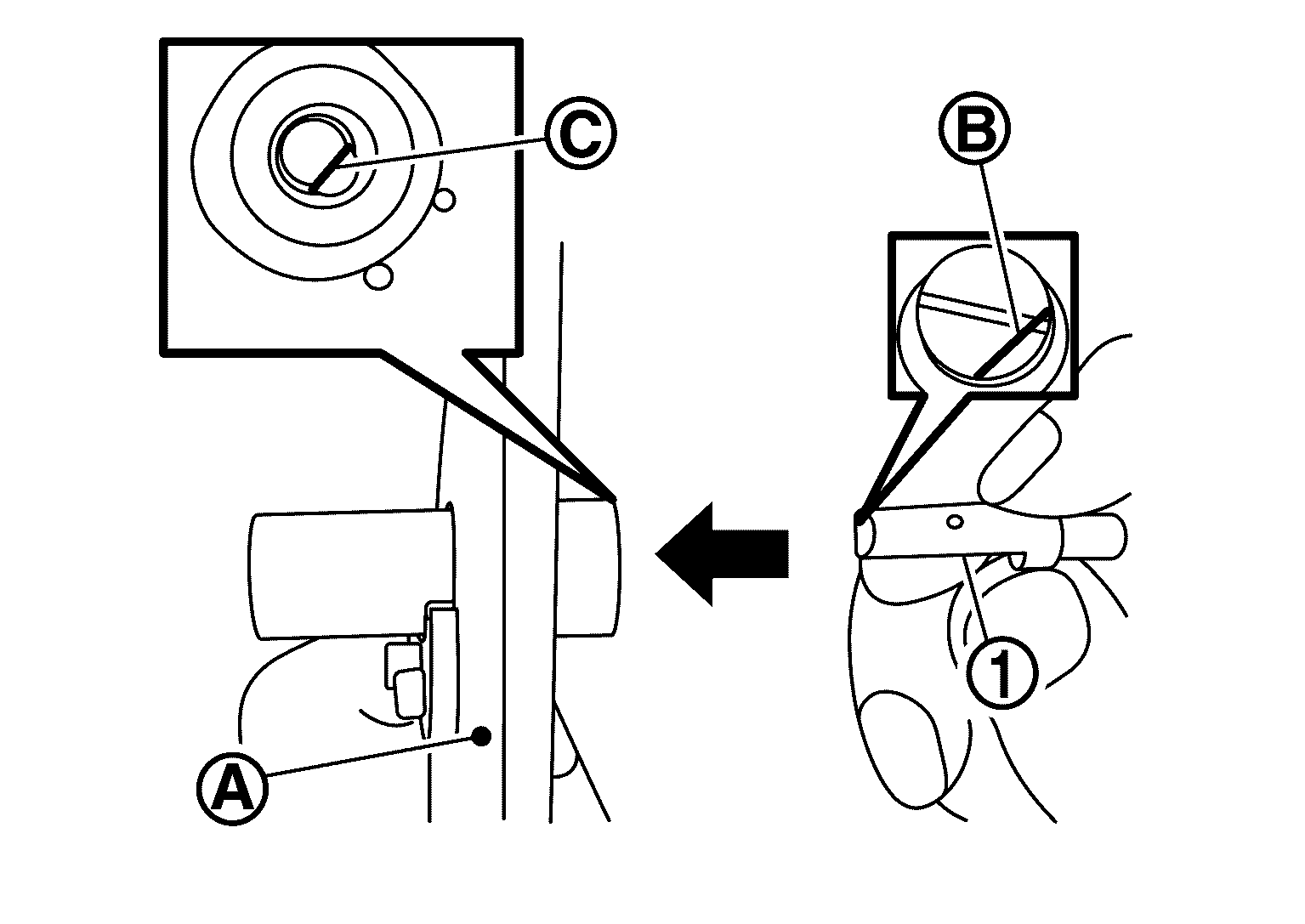

- Insert new oil jet [bank 2 (1)] into Tool (A) in the direction shown by arrow.NOTE: When inserting new oil jet [bank 2 (1)], be sure that D-cut (B) surface on oil jet and the location plate (C) are parallel to each other.
Tool number (A)
:--(J-51269-2)

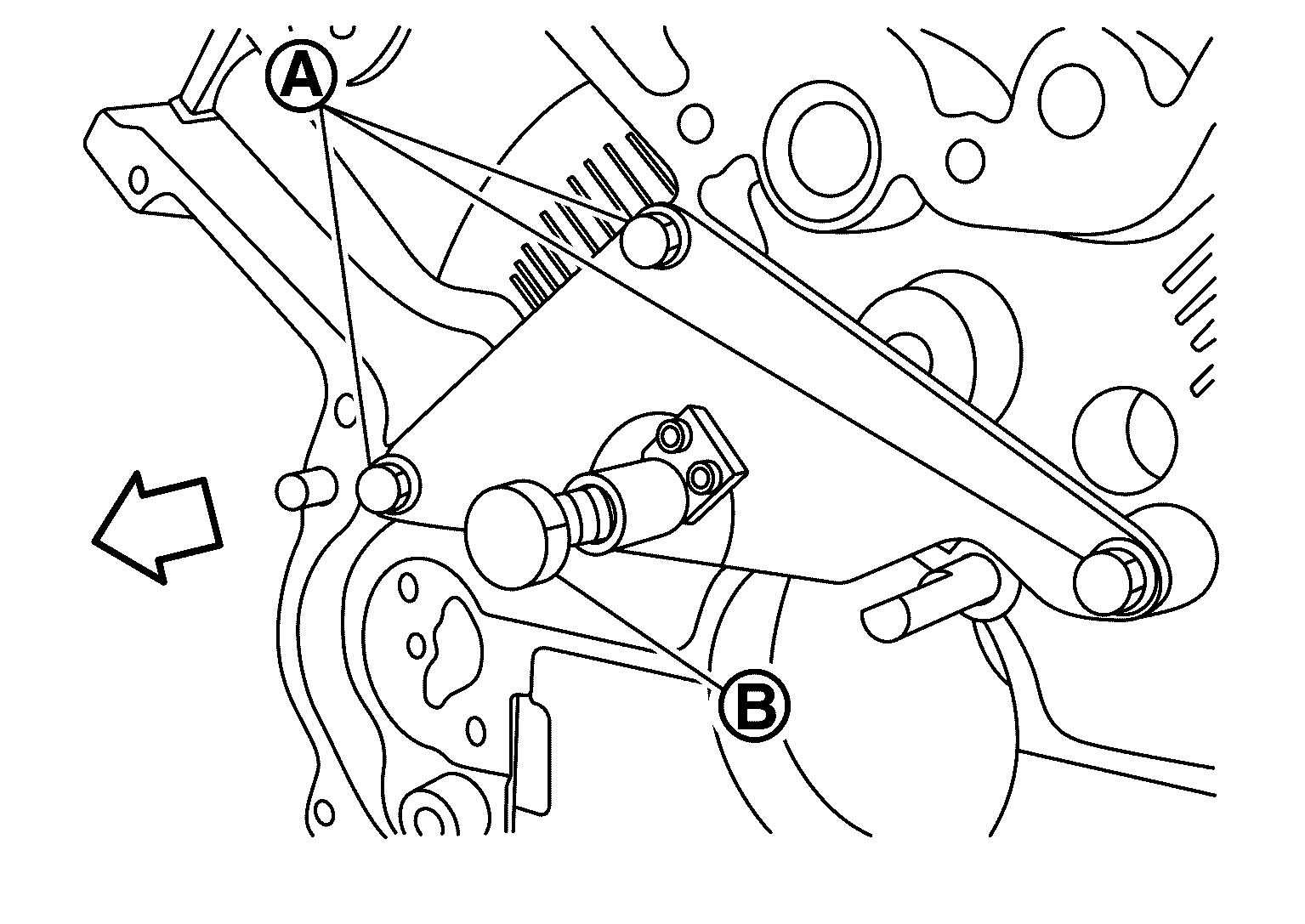

- Hand tighten bolts (A).
- Hand tighten bolt (B) until you feel the pressure from oil jet (bank 2). Then tighten the bolt two rotations with a suitable tool and center the oil jet (bank 2) and the hole.CAUTION: Do not tighten completely until the end of process.
- Tighten bolts (A).NOTE: Make Tool and oil jet (bank 2) are concentric.
Tool number
:--(J-51269-2)
: Front
- Install oil jet (bank 2) by tightening bolt (B) until it stops.
- Loosen bolts (A) and remove Tool from cylinder block.
Tool number
:--(J-51269-2)

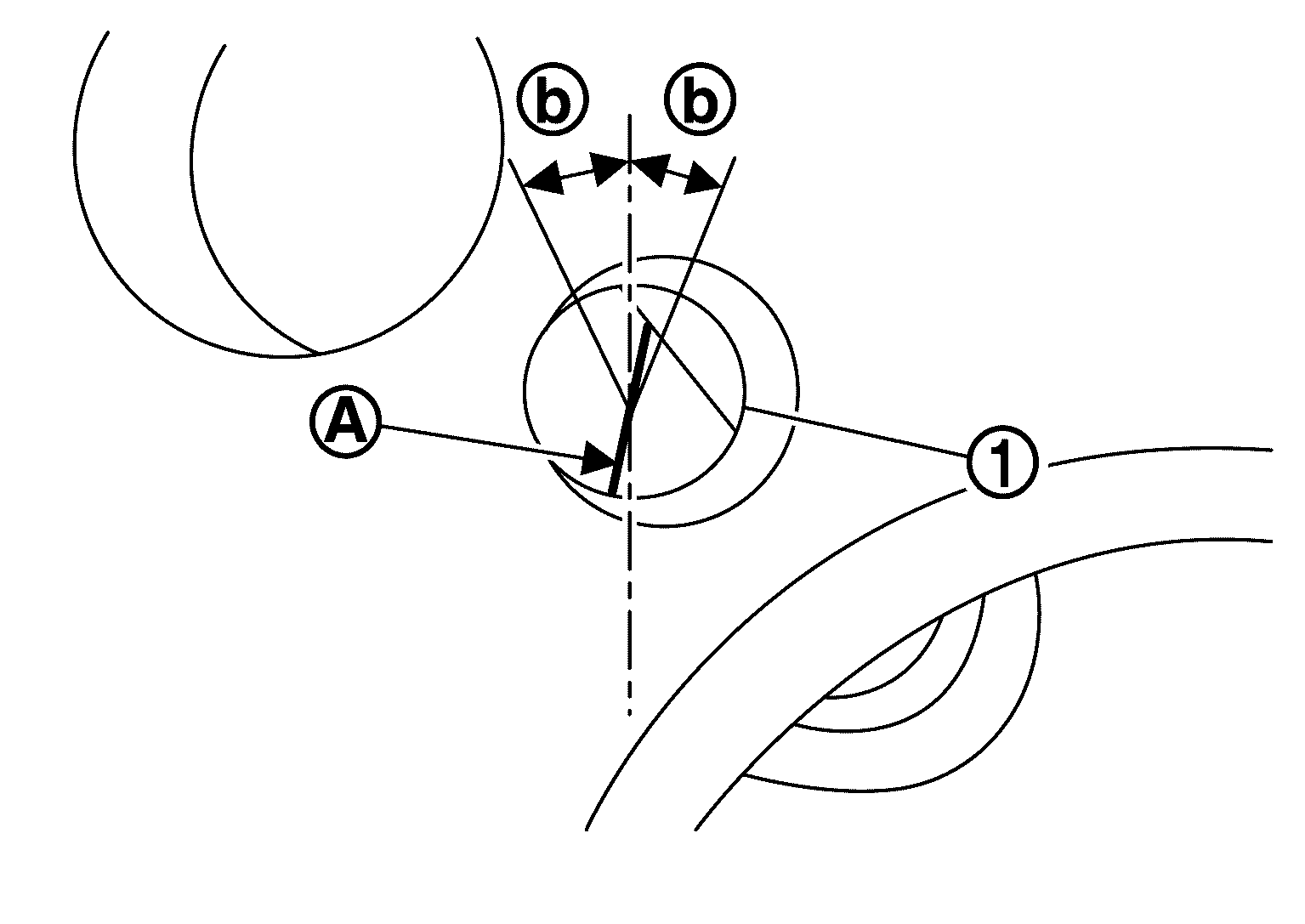

- Confirm the positional limitation of adjustment notch (A) on oil jet [bank 2 (1)] is within +/-10 deg. (b).
- If there is a gap (C) between oil jet [bank 2 (1)] and cylinder block (2) surface, repeat the steps 2 to 6 again.
(A)
: OK
(B)
: NG
