Removal and Installation: Installation
WARNING: This page is about a different variant/trim than selected.
- Install rear oil seal.CAUTION: Do not reuse rear oil seal.
- Install rear oil seal so that each seal lip is oriented as shown in the figure.
(A)
: Oil seal lip
(B)
: Dust seal lip
: Engine inside
: Engine outside

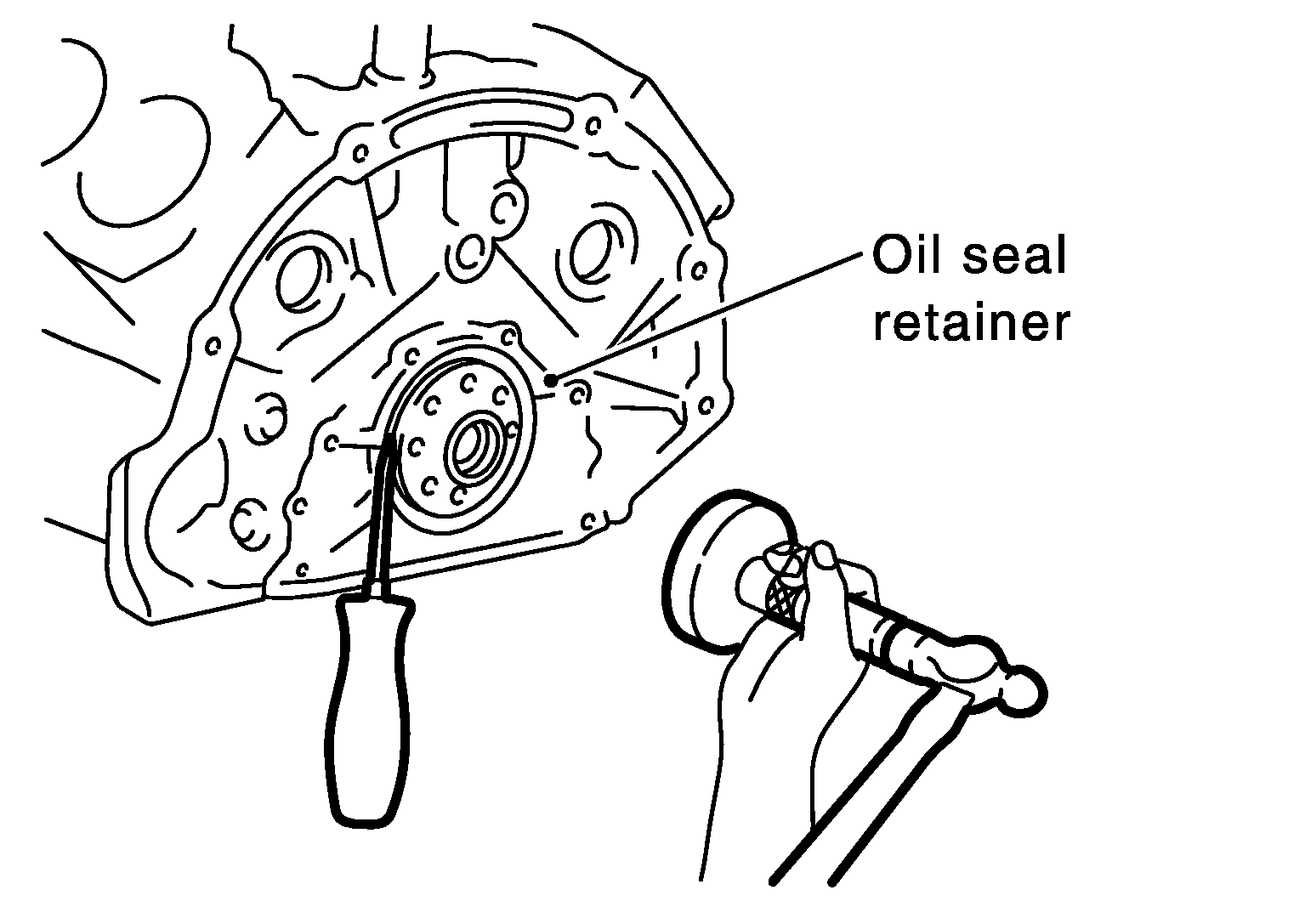

- Press in rear oil seal (1) to the position as shown in the figure.
(B)
: Rear oil seal retainer rear end face
(A)
: 0 - 0.5 mm (0 - 0.020 in)
- Using a suitable drift, press-fit until the height of rear oil seal is level with the mounting surface.
- Check the garter spring is in position and seal lips are not inverted.CAUTION:
- Be careful not to damage crankshaft and cylinder block.
- Press-fit straight and avoid causing burrs or tilting oil seal.
- Installation of the remaining components is in the reverse order of removal.
