Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the following parts:
  2. Remove crankshaft pulley as per the following:
    1. Remove rear plate cover. Refer to Exploded View .

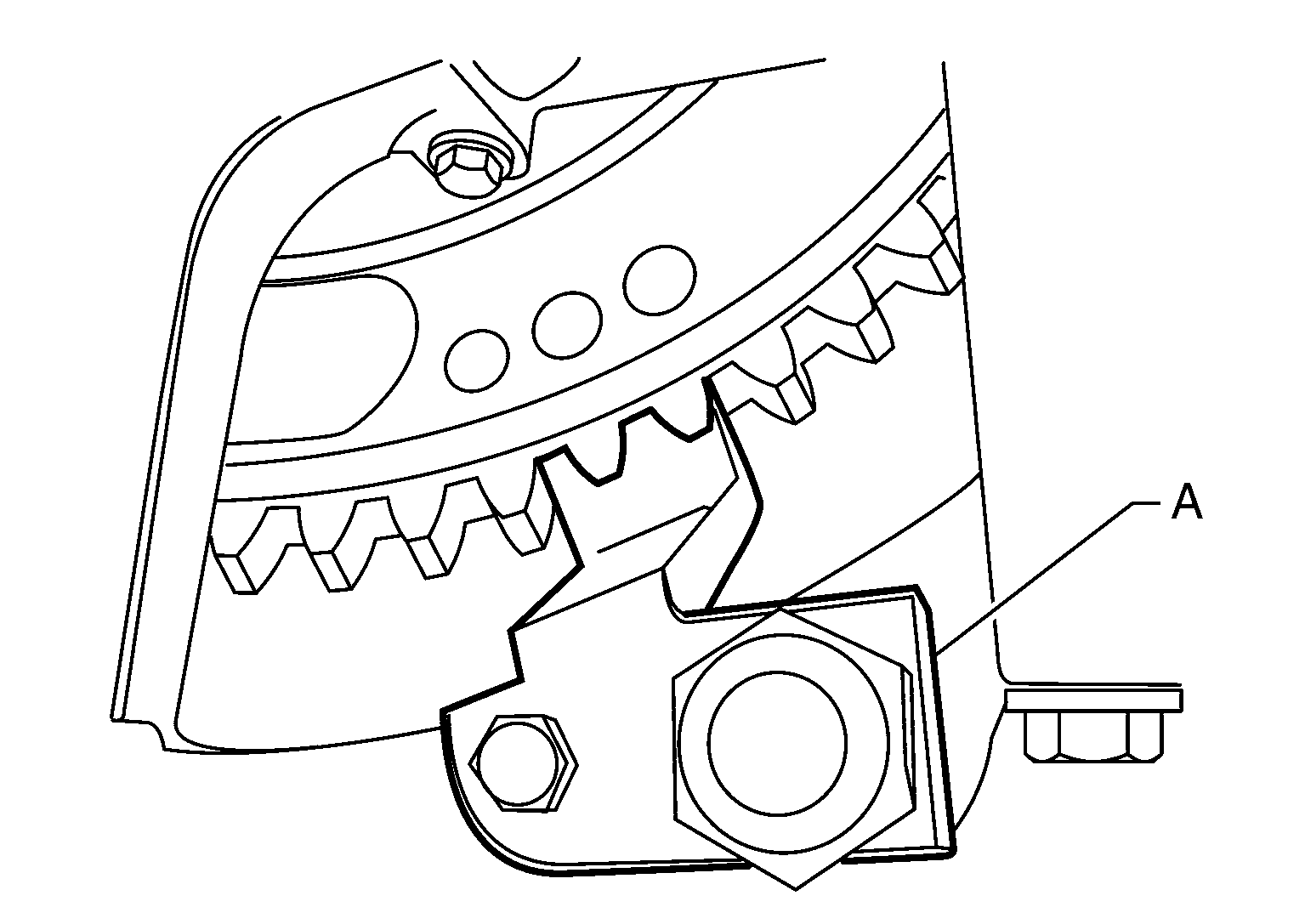

    2. Set Tool (A) as shown in the figure.
      G04132292Courtesy of NISSAN NORTH AMERICA, INC.

      Tool number (A)

      : KV10120100 (J-47245)
    3. Loosen crankshaft pulley bolt, and then pull crankshaft pulley with both hands to remove it.
      CAUTION: Do not remove crankshaft pulley bolt. Keep loosened crankshaft pulley bolt in place to protect removed crankshaft pulley from dropping.

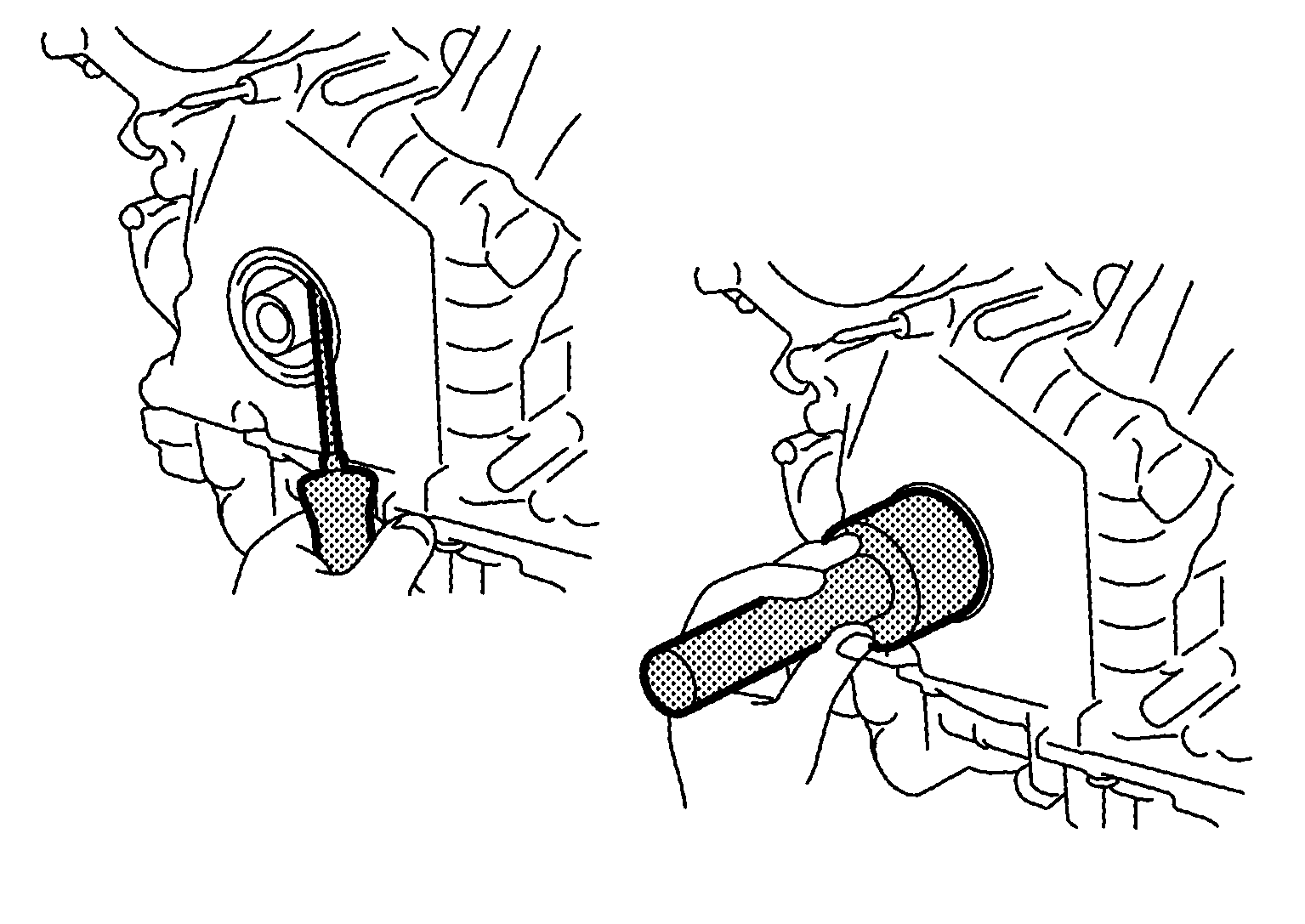

  3. Remove front oil seal using a suitable tool.
    GNSJPBIA3472Z-472Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Do not reuse front oil seal.
    • Be careful not to damage front cover and crankshaft.
