Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.
CAUTION: Do not reuse O-rings.
  1. Install oil pan (upper) as per the following:

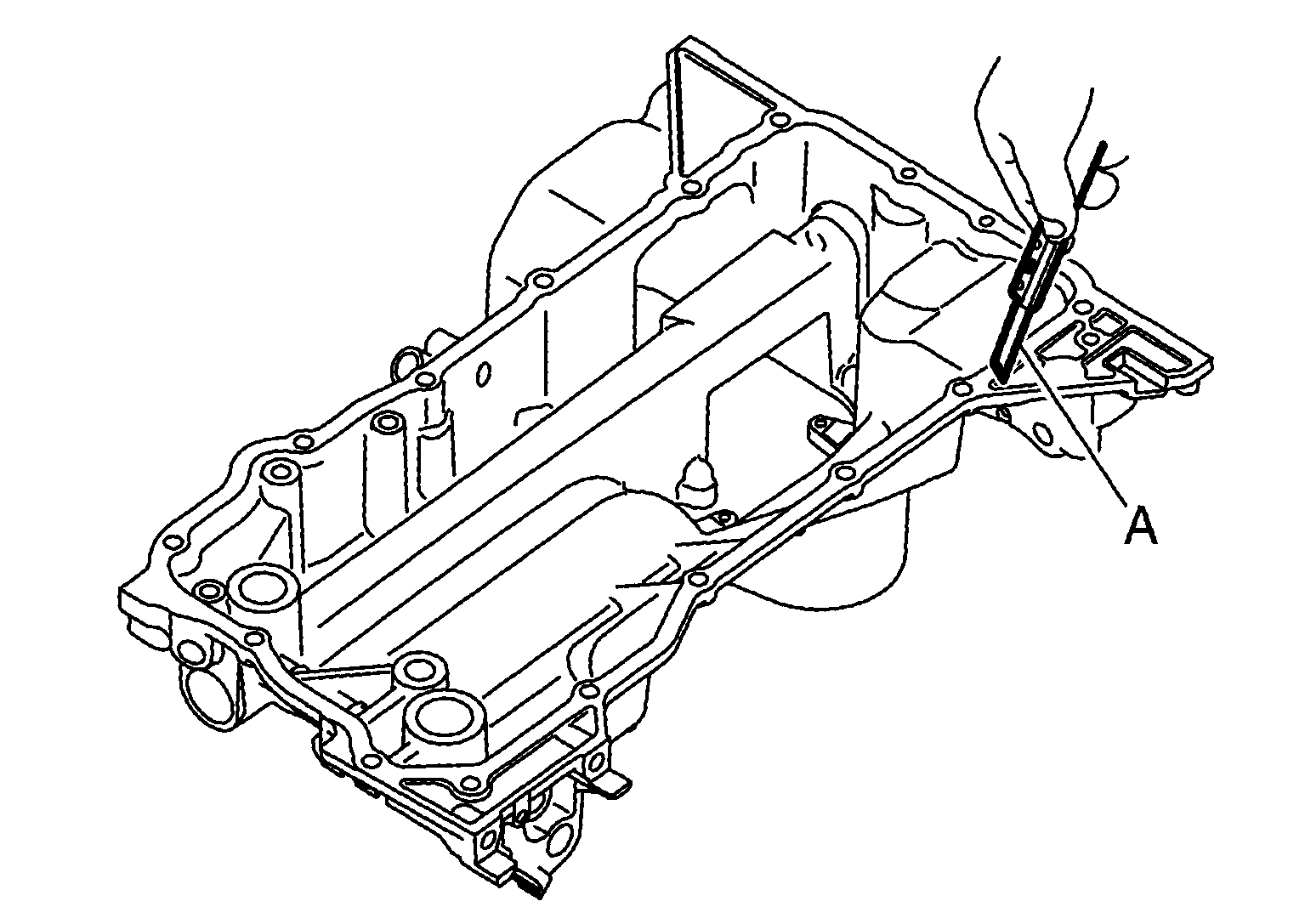

    1. Use a suitable tool (A) to remove old liquid gasket from mating surfaces.
      GNSJPBIA3503Z-503Courtesy of NISSAN NORTH AMERICA, INC.
      • Also remove the old liquid gasket from mating surface of cylinder block.
      • Remove old liquid gasket from the bolt holes and threads.
      CAUTION: Do not scratch or damage the mating surfaces when cleaning off old liquid gasket.
    2. Install new O-rings on the bottom of cylinder block and oil pump.
      CAUTION: Do not reuse O-rings.

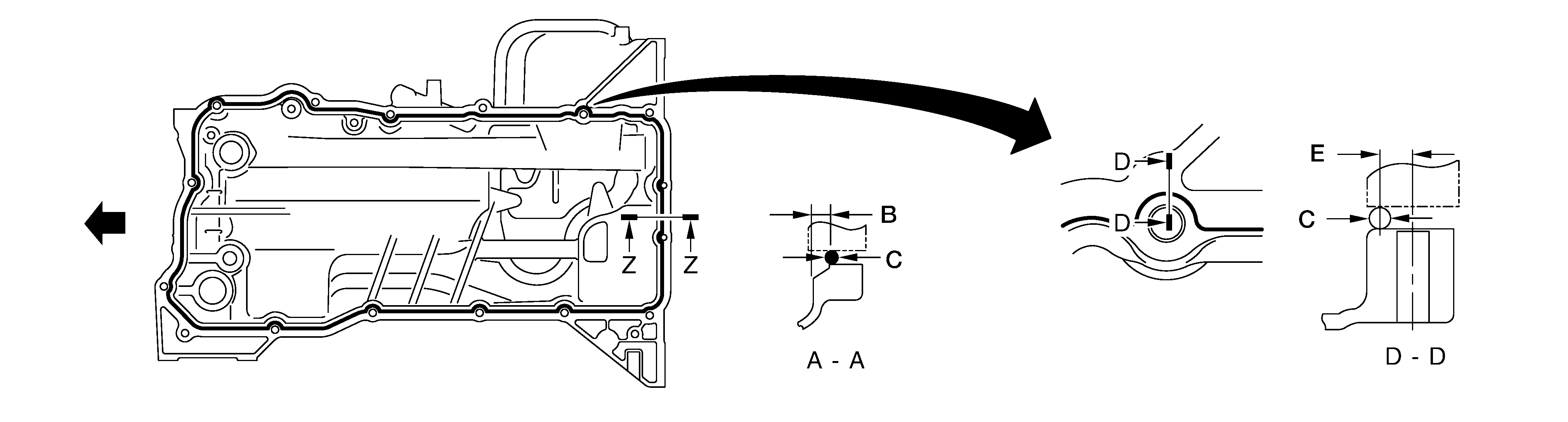

    3. Apply a continuous bead of liquid gasket with tube presser (commercial service tool) to the cylinder block mating surfaces of oil pan (upper) to a limited portion as shown in the figure.
      GNSAWBIA2961Z-961Courtesy of NISSAN NORTH AMERICA, INC.

      B

      : 5.5 - 7.5 mm (0.217 - 0.295 in)

      C.

      : 4.0 - 5.0 mm (0.157 - 0.197 in)

      E.

      : 6.2 - 8.2 mm (0.244 - 0.323 in)

      SYMBOL

      : Engine front

      Use Genuine RTV silicone sealant or equivalent. Refer to Recommended Chemical Products and Sealants .

      CAUTION: Tighten oil pan (upper) bolts within 5 minutes of application of sealant.
    4. Tighten bolts in the sequence shown to the specified torque.
      GNSAWBIA2960Z-960Courtesy of NISSAN NORTH AMERICA, INC.
      CAUTION: Install avoiding misalignment of O-rings.
      NOTE: Tighten bolts No. 1 and 2 in two steps. The numerical order No. 9 and 16 shown second steps.

      SYMBOL

      : Engine front
      • There are four types of bolts. Refer to the following for locating bolts.

        Order number for tightening

        17, 18

        2 (16), 3, 4, 7, 8, 10, 11, 12, 13, 15

        1(9), 14

        5, 6

        Bolt size

        M6

        M8

        Bolt length SYMBOL

        45 mm (1.77 in)

        25 mm (0.98 in)

        30.0 mm (1.18 in)

        120 mm (4.72 in)

        Tightening torque

        9.0 N. (0.92 kg-m, 80 in-lb)

        22.0 N.m (2.2 kg-m, 16 ft-lb)
    5. Tighten transmission joint bolts.
    6. Install rear plate cover.
  2. Install oil strainer.
  3. Install oil pan (lower). Refer to Removal and Installation .
  4. Installation of remaining components is in the reverse order of removal.
    NOTE: At least 30 minutes after oil pan is installed to refill engine oil.
