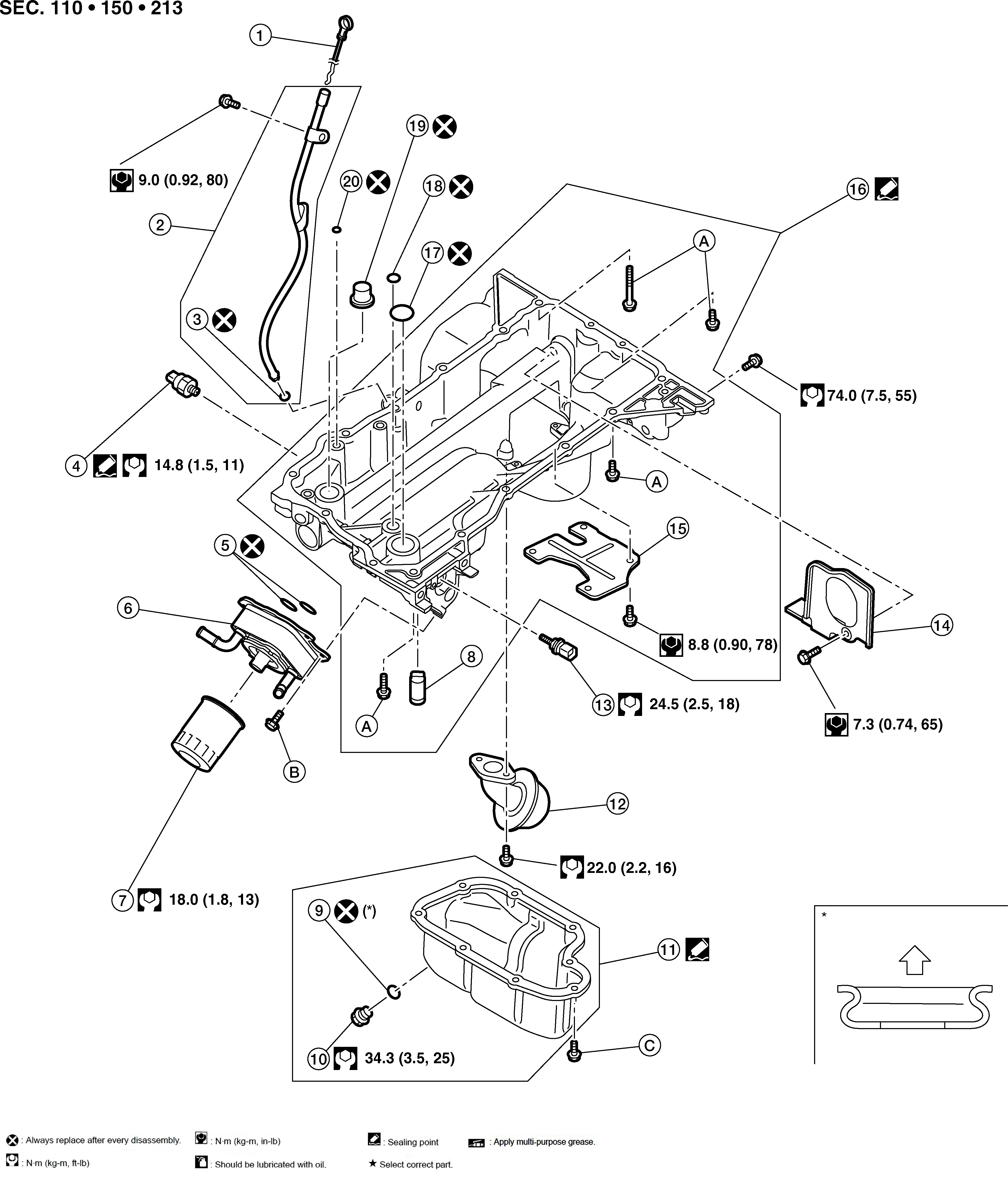

Exploded View
WARNING: This page is about a different variant/trim than selected.
|
1. |
Oil level gauge |
2. |
Oil level gauge guide |
3. |
O-ring |
|
4. |
Engine oil pressure sensor |
5. |
O-ring |
6. |
Oil cooler |
|
7. |
Oil filter |
8. |
Relief valve |
9. |
Drain plug washer |
|
10. |
Drain plug |
11. |
Oil pan (lower) |
12. |
Oil strainer |
|
13. |
Engine oil temperature sensor |
14. |
Rear plate cover |
15. |
Baffle plate |
|
16. |
Oil pan (upper) |
17. |
O-ring |
18. |
O-ring |
|
19. |
O-ring |
20. |
O-ring |
A. |
Refer to INSTALLATION . |
|
B. |
Refer to Removal and Installation . |
C. |
Refer to Removal and Installation . |
|
Oil pan side |
