Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.
CAUTION: Do not reuse drain plug washer.
  1. Install oil strainer (if removed).
  2. Install oil pan (lower) in the following sequence.

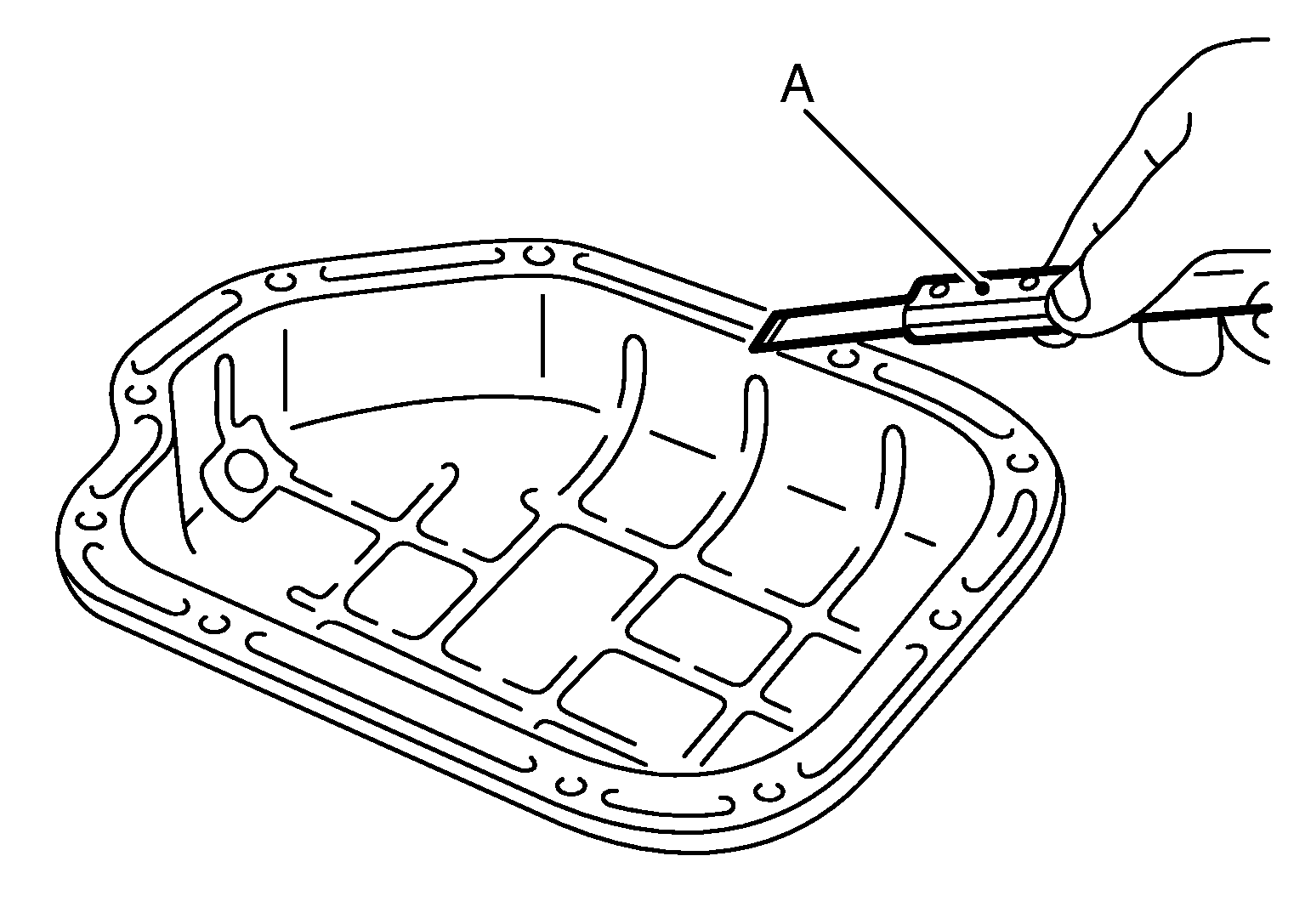

    1. Use suitable tool (A) to remove old liquid gasket from mating surfaces.
      GNSJPBIA0025Z-025Courtesy of NISSAN NORTH AMERICA, INC.
      • Remove old liquid gasket from the bolt holes and thread.
      CAUTION: Do not scratch or damage the mating surfaces when cleaning off old liquid gasket.

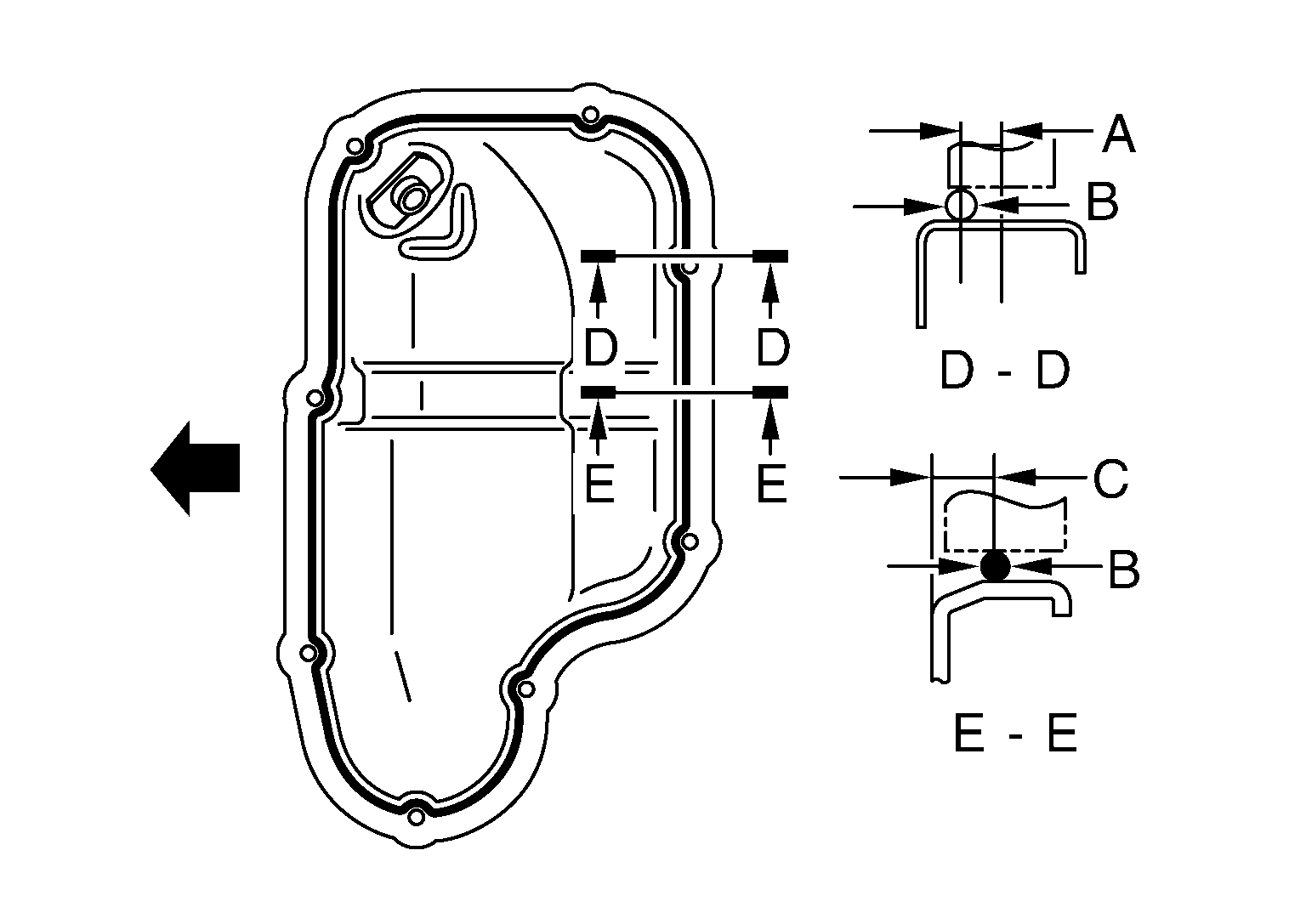

    2. Apply a continuous bead of liquid gasket with a suitable tool to the oil pan (lower) as shown.
      GNSAWBIA2959Z-959Courtesy of NISSAN NORTH AMERICA, INC.

      (A)

      : 5.0 - 7.0 mm (0.20 - 0.28 in)

      (B)

      : 4.0 - 5.0 mm (0.16 - 0.20 in)

      (C)

      : 7.5 - 9.5 mm (0.30 - 0.37 in)

      SYMBOL

      : Engine front

      Use Genuine RTV silicone sealant or equivalent. Refer to Recommended Chemical Products and Sealants .

      CAUTION: Tighten oil pan (lower) bolts to specification within 5 minutes of application of liquid gasket.
    3. Install oil pan (lower).
      • Tighten bolts to specification in the sequence shown.
        GNSJPBIA3495Z-495Courtesy of NISSAN NORTH AMERICA, INC.

        Oil pan (lower) bolts

        : 9.0 N.m (0.9 kg-m, 80 in-lb)

        SYMBOL

        : Engine front
  3. Install oil pan drain plug.
    CAUTION: Do not reuse drain plug washer.
  4. Refill engine oil. Refer to Refilling .
    NOTE: Wait at least 30 minutes after oil pan is installed before refilling engine oil.
