Oil Jet (Bank 2)
>>
Removal and Installation
>>
Confirm Hole Diameter
Confirm Hole Diameter
WARNING:
This page is about a different variant/trim than selected.

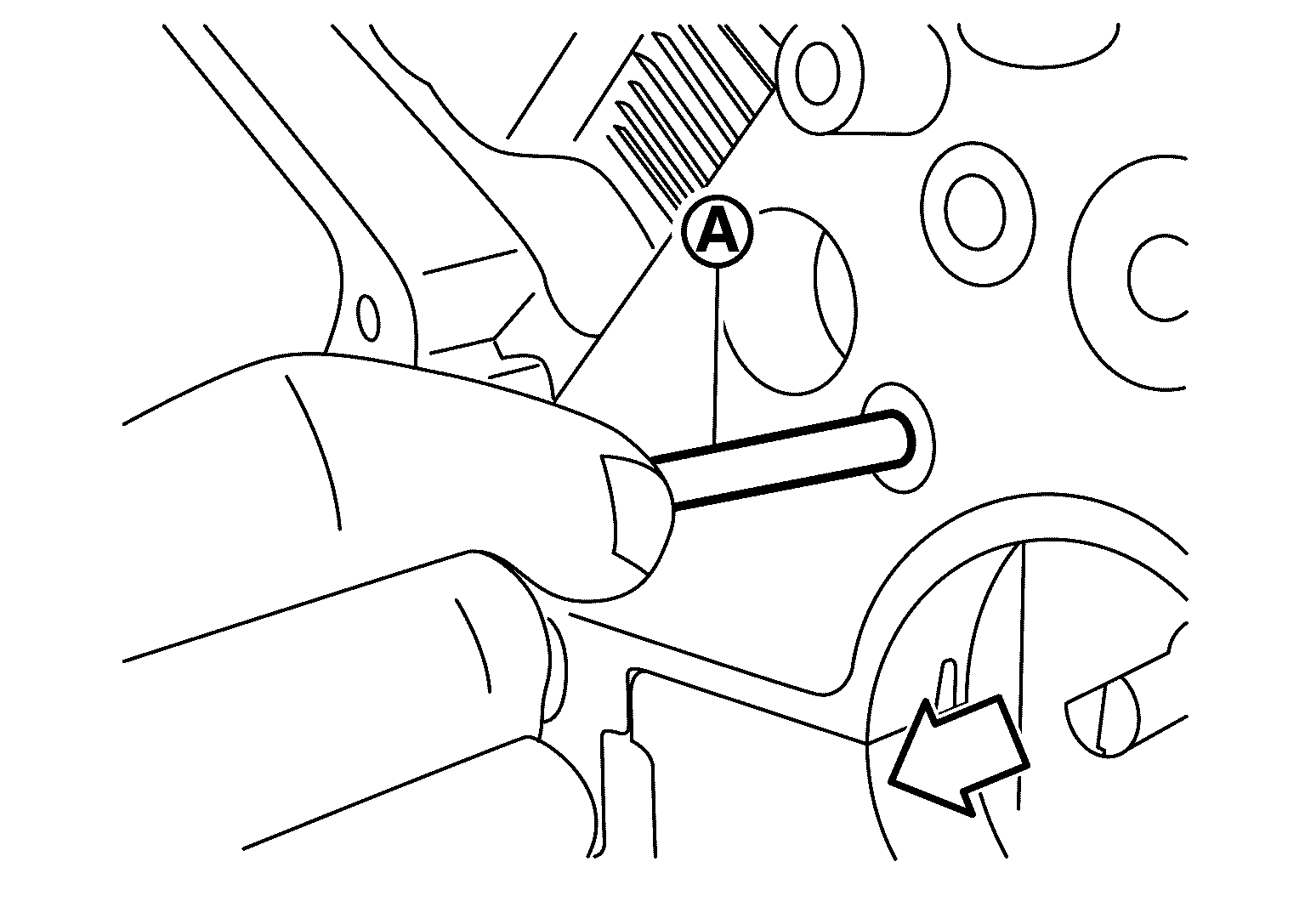

After removing oil jet (bank 2), use Tool (A) to confirm the hole diameter.
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
If Tool is inserted deeper than 3 mm (0.118 in), replace cylinder block and oil-jet.
Tool
:--(J-51269-1)
: Vehicle front
