Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove transmission assembly. Refer to Removal and Installation .

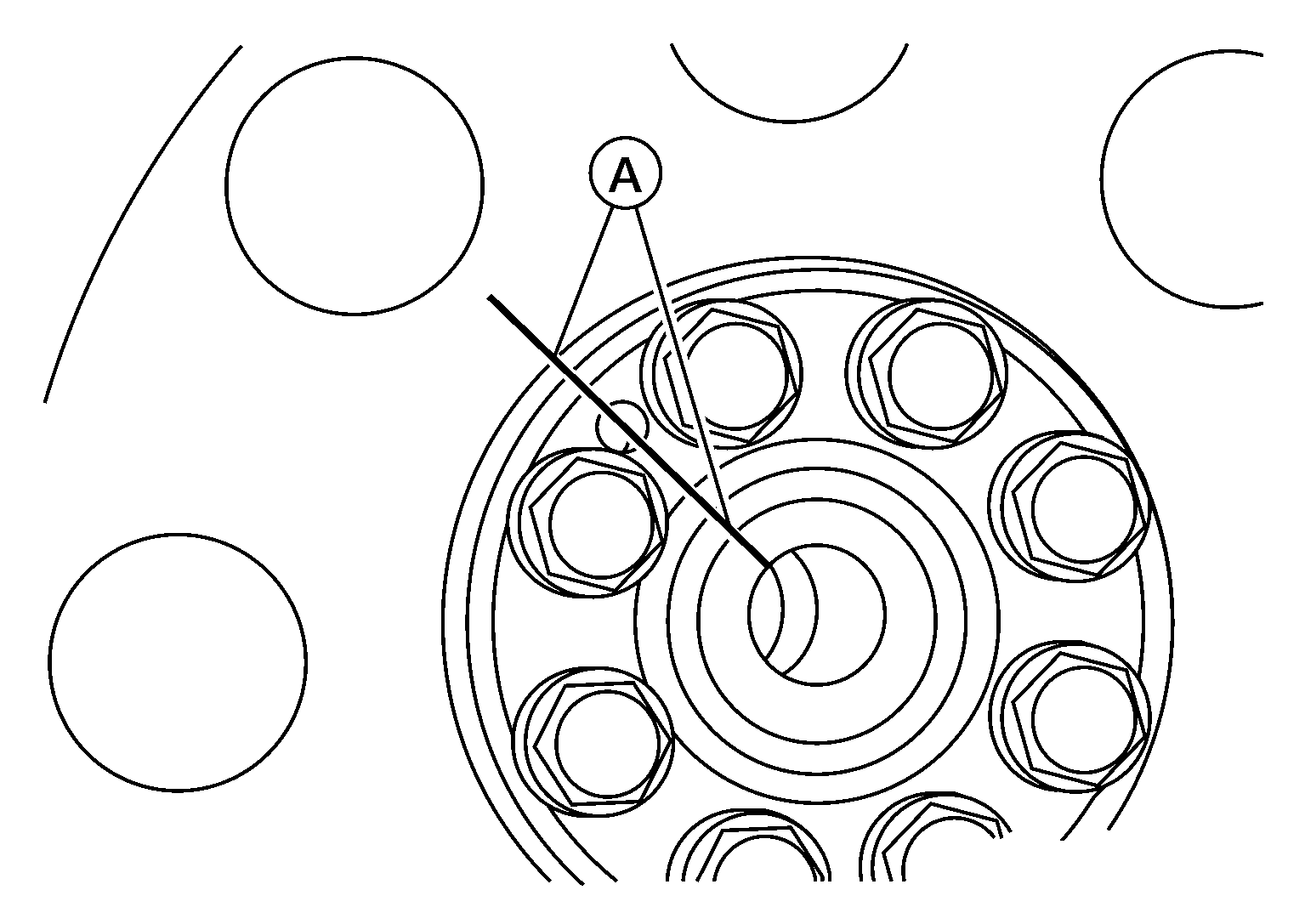

  2. Before removing the drive plate, put a match mark (A) on the crankshaft and drive plate for alignment during installation.
    GNSDB115753Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove drive plate as par the following procedure.
    1. Set the Tool (A) as shown in the figure.
      G04132292Courtesy of NISSAN NORTH AMERICA, INC.

      Tool number (A)

      : KV10120100 (J-47245)
    2. Loosen the bolts diagonally, and then pull drive plate with both hands to remove it.
      CAUTION:
      • Do not disassemble them.
      • Do not place them with signal plate facing down.
      • When handling signal plate, take care not to damage or scratch them.
      • Handle signal plate in a manner that prevents them from becoming magnetized.
      • Take care not to damage the periphery of the sensing area.
      • Any dropped drive plate shall not be used. (The drive plate to which the sensing area shall not be placed on the floor.)
      • Do not touch drive plate with bare hands. Always use urethane coating gloves or skin gloves when removing these parts.
      • Do not use torn glove.

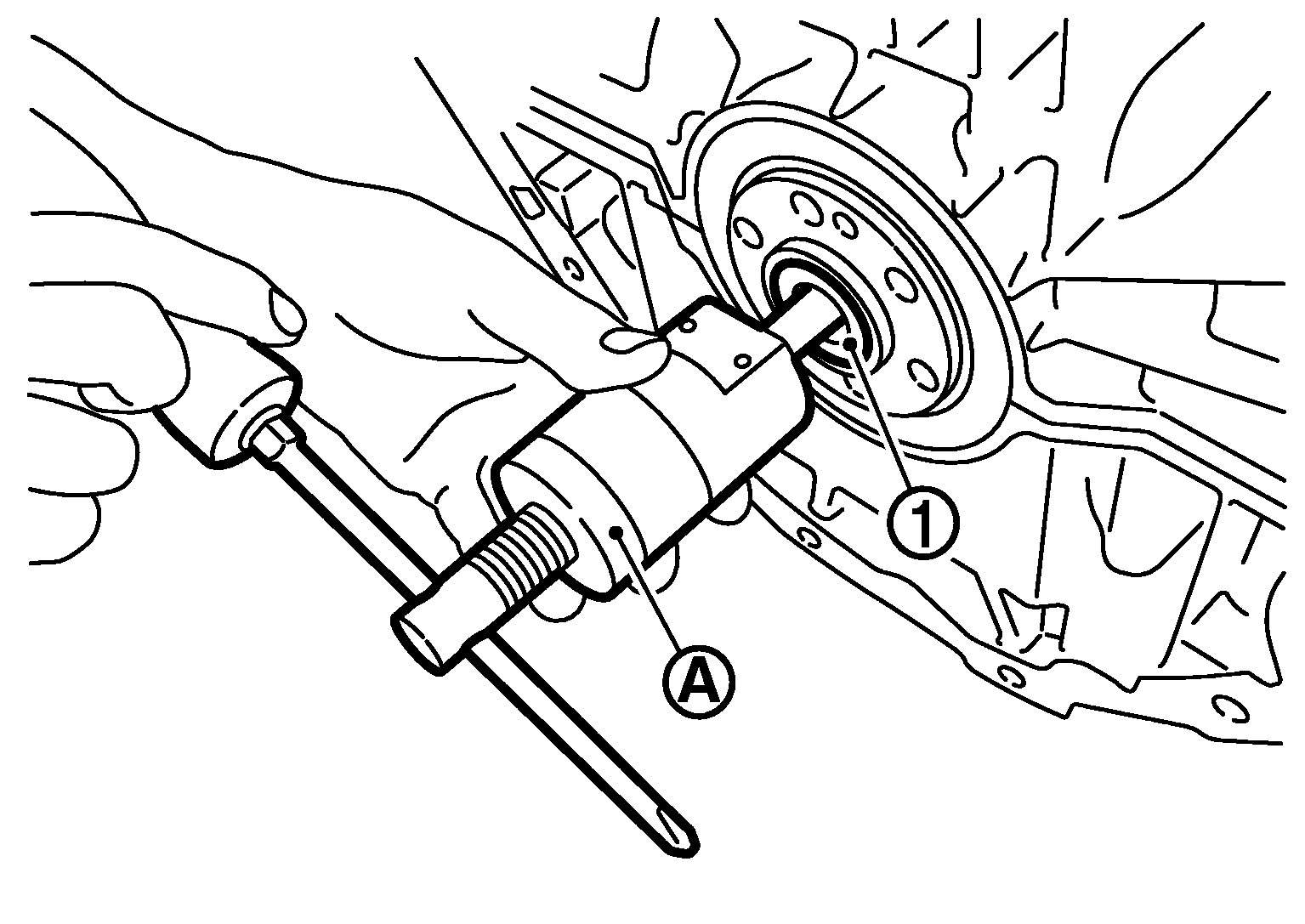

  4. Remove pilot converter (1) using a suitable tool (A) (if necessary).
    G04811747Courtesy of NISSAN NORTH AMERICA, INC.
