Drive Plate Deflection
WARNING: This page is about a different variant/trim than selected.
- Check drive plate and signal plate (A) for deformation or damage.
(B)
: Ring gear
: Engine front
CAUTION:- Do not disassemble drive plate.
- Do not place drive plate with signal plate facing down.
- When handling signal plate, take care not to damage or scratch it.
- Handle signal plate in a manner that prevents it from becoming magnetized.
- If damage is found, replace drive plate.

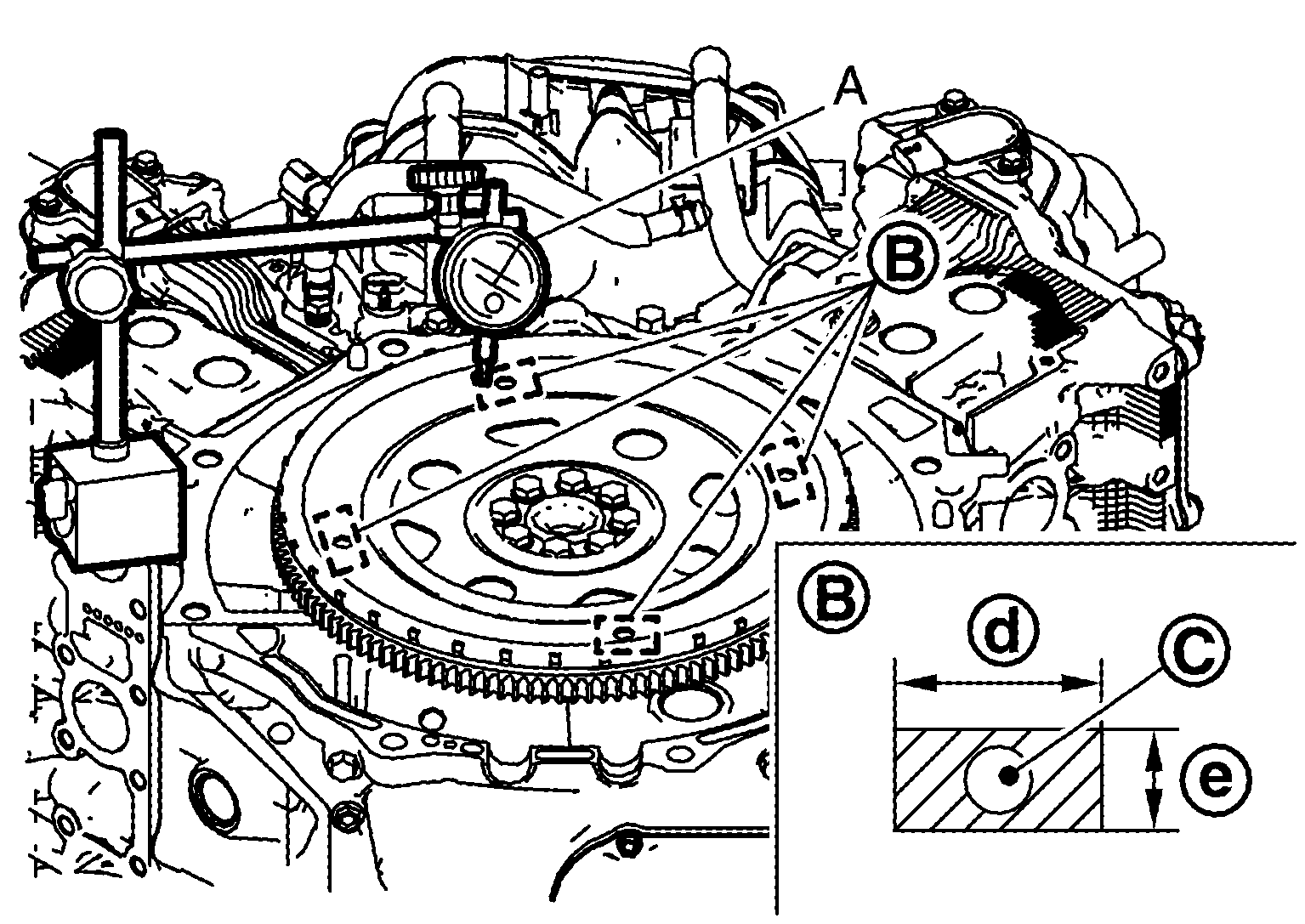

- Measure the deflection of drive plate contact surface to torque converter with a suitable tool (A).
- Measure the deflection at the area (B).
(C)
: Hole of torque converter bolt
(D)
: 34 mm (1.34 in)
(E)
: 21 mm (0.83 in)
Limit
: 0.35 mm (0.0138 in) or less.
- If measured value is out of the standard, replace drive plate.
