Removal and Installation: Installation
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Do not reuse washers.
- Install valve lifter.
- Install it in the original position.
- Install exhaust camshaft.
- Install VVEL ladder assembly as per the following:

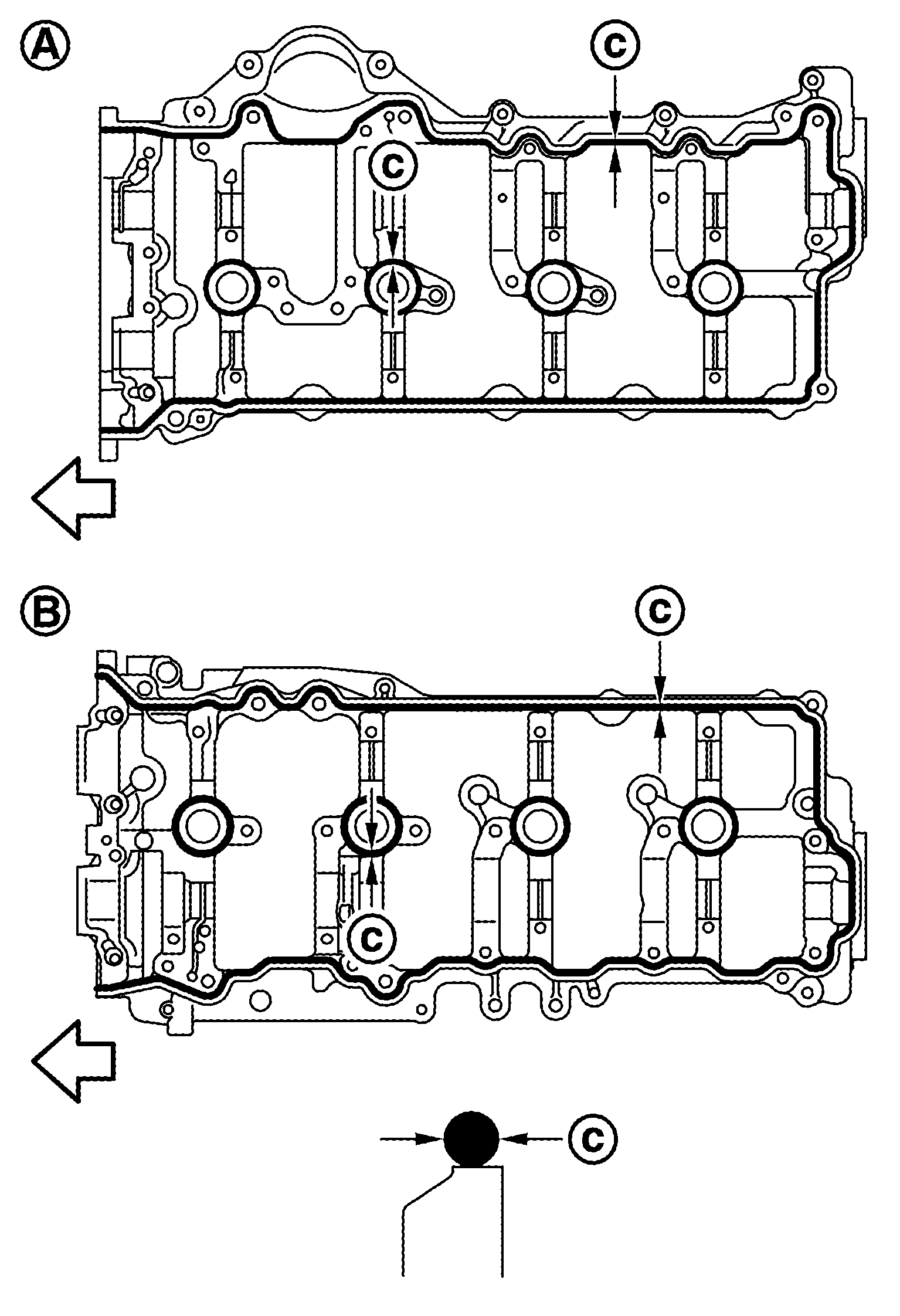

- Apply a continuous bead of liquid gasket with a suitable tool to the VVEL ladder assembly as shown in the figure.
(A)
: Bank 1
(B)
: Bank 2
(C)
: 3.4 - 4.4 mm (0.134 - 0.173 in)
: Engine front
Use Genuine RTV silicone sealant or equivalent. Refer to Recommended Chemical Products and Sealants .
- Tighten bolts in the sequence shown to the specified torque.
(A)
: Bank 2
(B)
: Bank 1
: Engine front
CAUTION: Do not reuse washers.Step 1
: 1.96 N.m (0.20 kg-m, 17 in-lb)
Step 2
: 5.88 N.m (0.60 kg-m, 52 in-lb)
Step 3
: 10.4 N.m (1.1 kg-m, 8 ft-lb)
- Apply a continuous bead of liquid gasket with a suitable tool to the VVEL ladder assembly as shown in the figure.
- Installation of the remaining components is in the reverse order of removal.
- Inspect valve clearance. Refer to Inspection .
- When using a new VVEL ladder assembly, adjust VVEL control shaft position sensor. Refer to Description .
