Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect mass air flow sensor harness connector.
  2. Remove air cleaner case (upper) and mass air flow sensor assembly and air duct by disconnecting their joints.
    • Add matching marks, if necessary for easier installation.
  3. Remove mass air flow sensor from air cleaner case (upper) (if necessary).
    CAUTION: Handle mass air flow sensor according to the following instructions.
    • Do not impact it.
    • Do not disassemble it.
    • Do not touch its sensor.

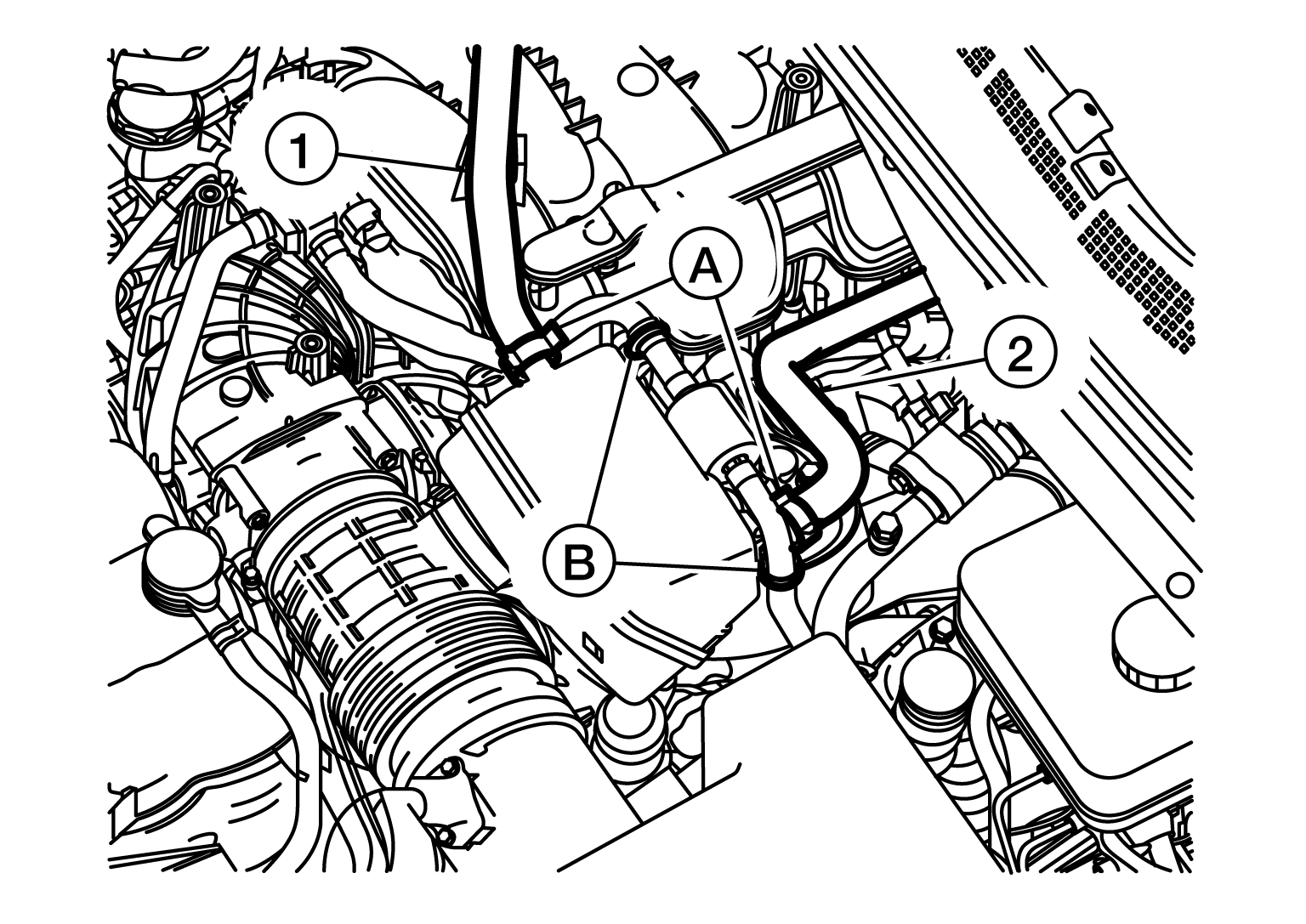

  4. Disconnect clips (B) from air duct.
    GNSALBIA2969Z-969Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove clamps (A) and disconnect PCV hose [bank 1 (2)] and PCV hose [bank 2 (1)] from air duct.
  6. Remove air duct.
  7. Remove air cleaner filter.
  8. Remove air cleaner case (lower).
  9. Remove adapter.
