Removal and Installation: Installation
WARNING: This page is about a different variant/trim than selected.
Installation is in the reverse order of removal.
NOTE:
Make sure to align marks when installing air cleaner and air duct components.

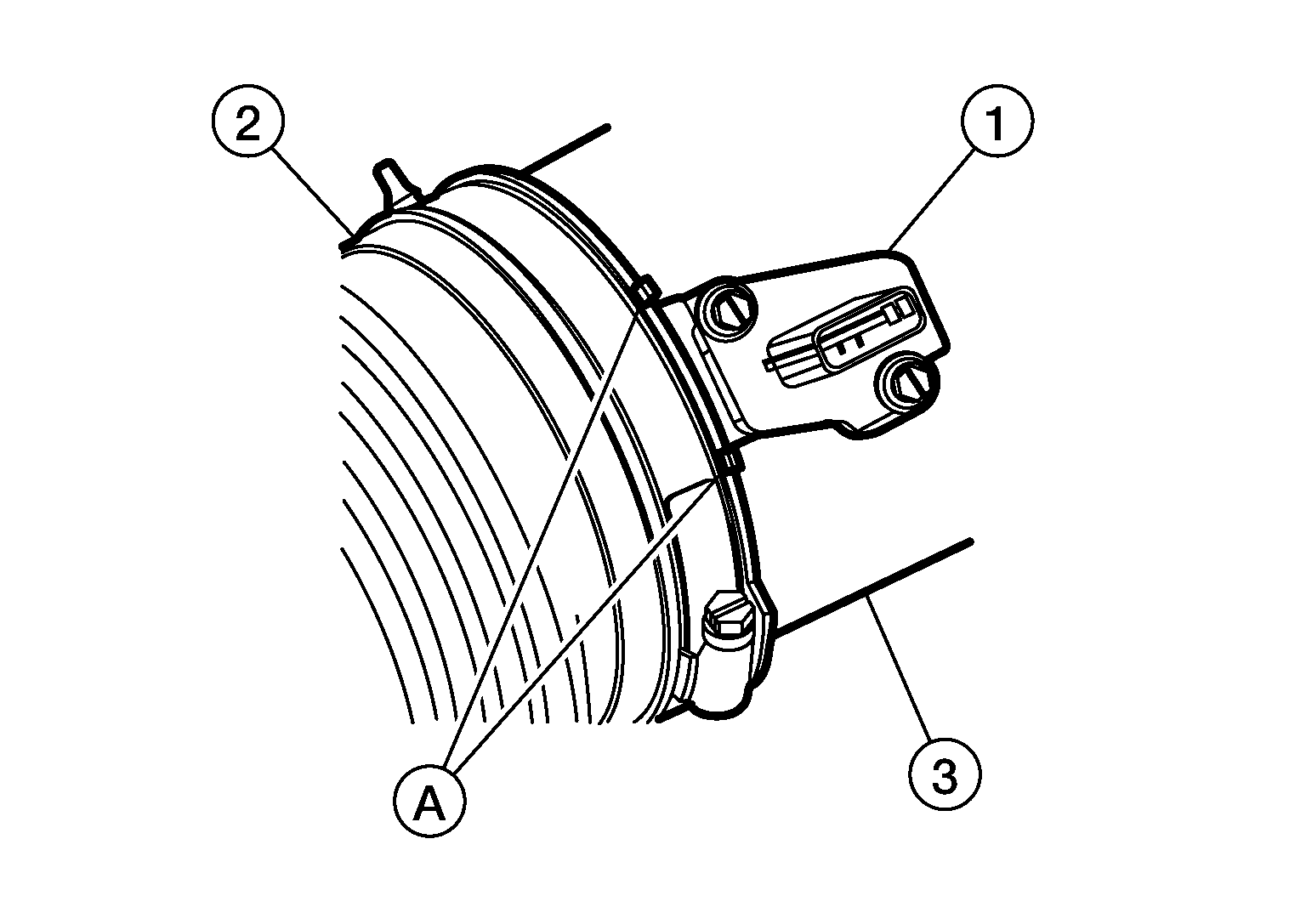

- Align mating marks (A) with mass air flow sensor (1).
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
(2)
|
: Air duct
|
|
(3)
|
: Air cleaner case (upper)
|

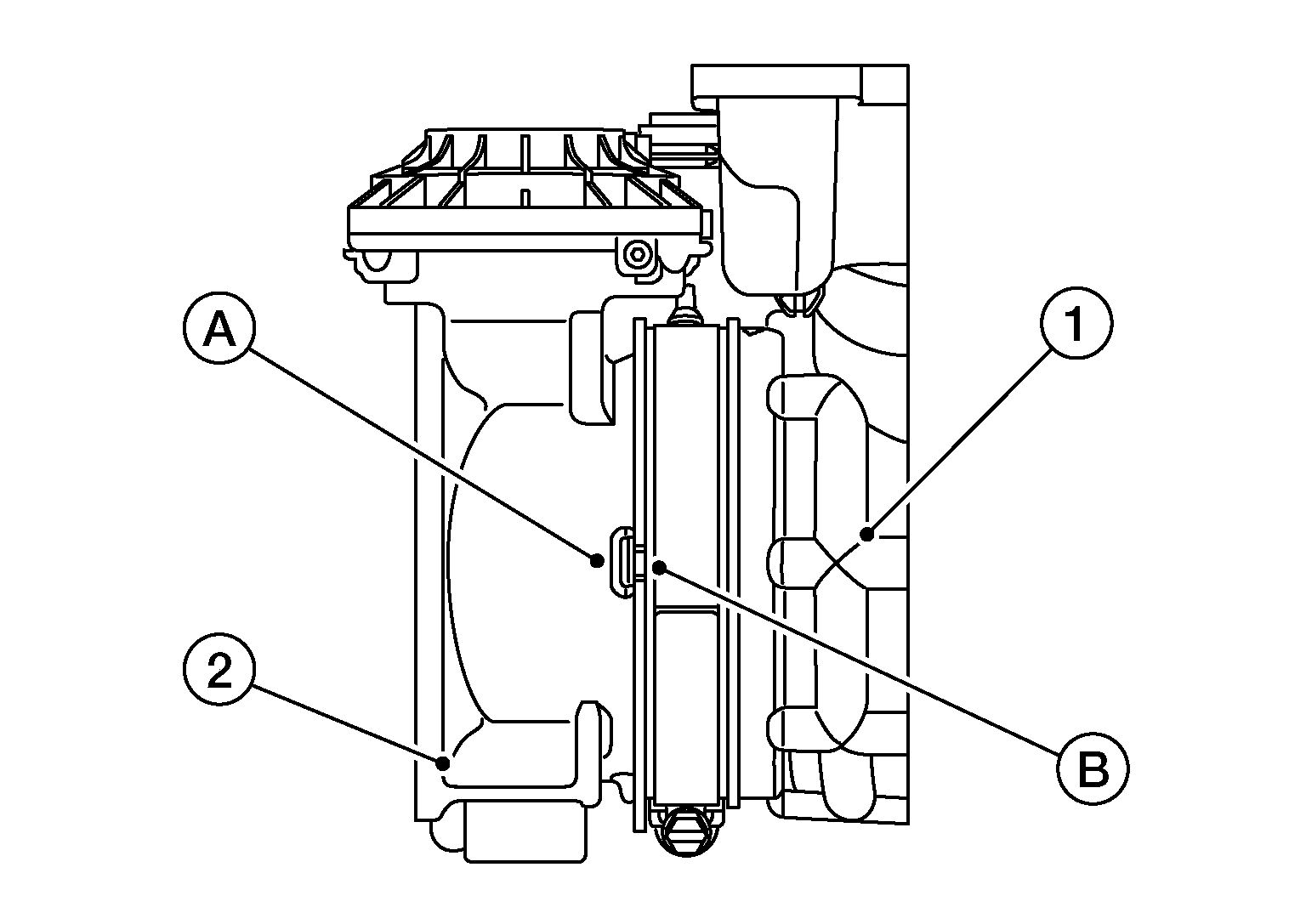

- Align mating mark (A) on the throttle body (2) with the mating mark (B) on the air duct (1).
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- When installing PCV hose clamps, orient the clamps as shown.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
(A)
|
: 45 deg.
|
|
(B)
|
: Marking (top)
|
