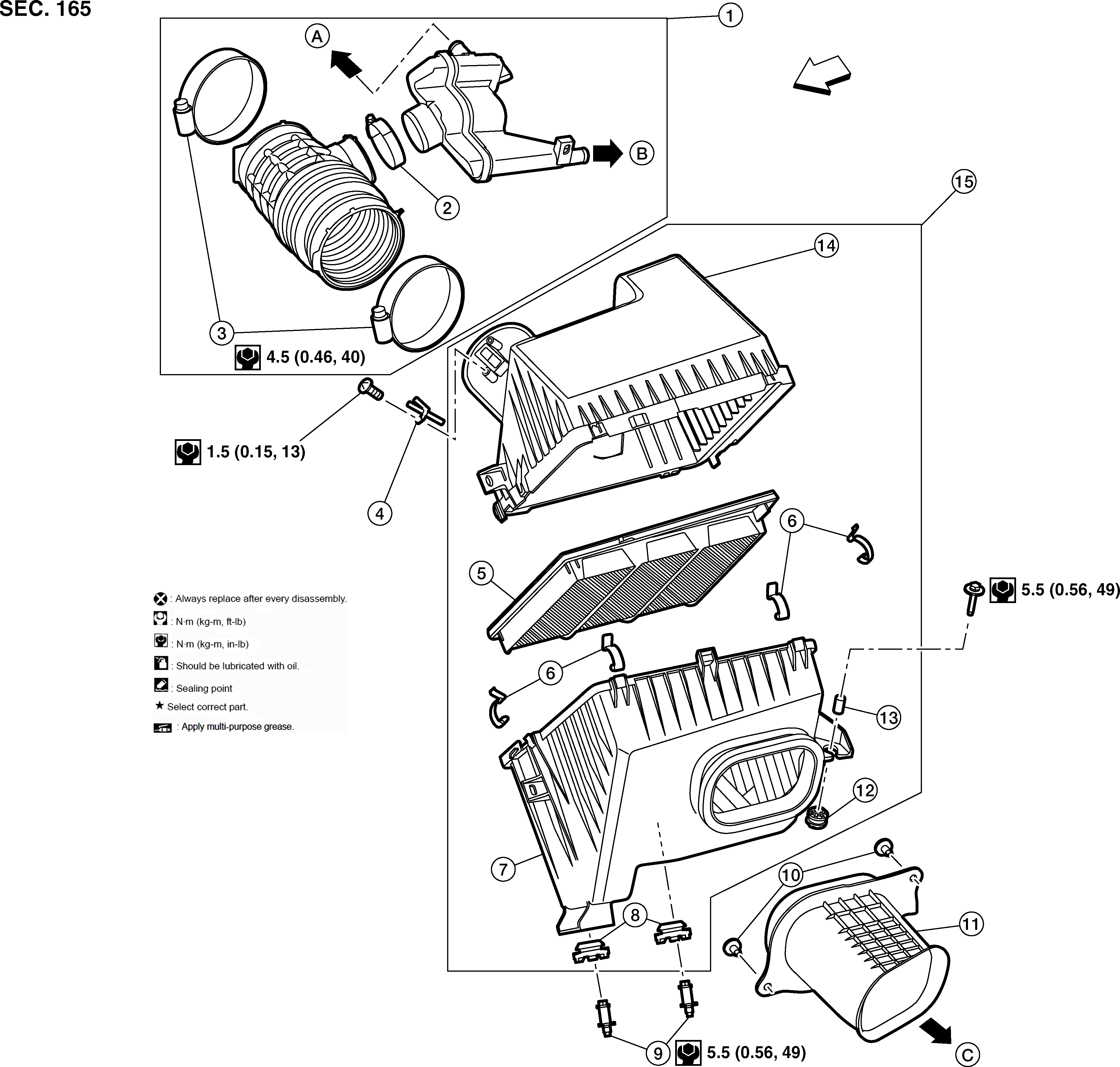

Exploded View
WARNING: This page is about a different variant/trim than selected.
|
1. |
Air duct |
2. |
Clamp |
3. |
Clamp |
|
4. |
Mass air flow sensor |
5. |
Air filter |
6. |
Clip |
|
7. |
Air cleaner case (lower) |
8. |
Air duct mounting rubber |
9. |
Stud |
|
10. |
Clip |
11. |
Adapter |
12. |
Grommet |
|
13. |
Retainer |
14. |
Air cleaner case (upper) |
15. |
Air cleaner assembly |
|
A. |
To PCV hose (bank 2). Refer to Exploded View . |
B. |
To PCV hose (bank 1). Refer to Exploded View . |
C. |
To hoodledge. Refer to Body Component Parts (STANDARD ROOF - CARGO VAN), Body Component Parts (STANDARD ROOF - PASSENGER VAN), or Body Component Parts (HIGH ROOF - CARGO VAN). |
|
|
Front |
||||
