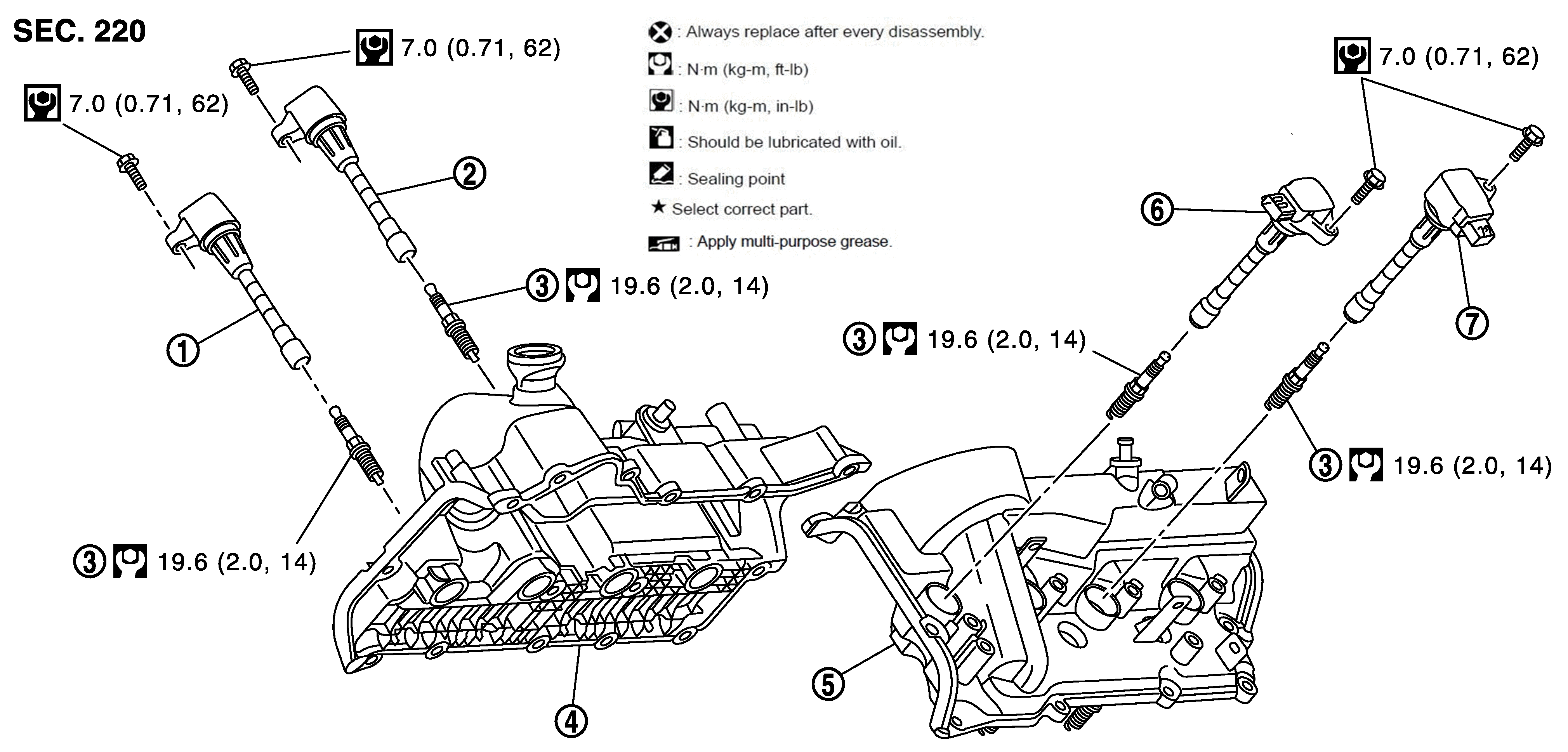

Exploded View
WARNING: This page is about a different variant/trim than selected.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Ignition coil (No. 2, 4)
|
2.
|
Ignition coil (No. 6, 8)
|
3.
|
Spark plug
|
|
4.
|
Rocker cover (bank 2)
|
5.
|
Rocker cover (bank 1)
|
6.
|
Ignition coil (No. 1, 3)
|
|
7.
|
Ignition coil (No. 5, 7)
|
