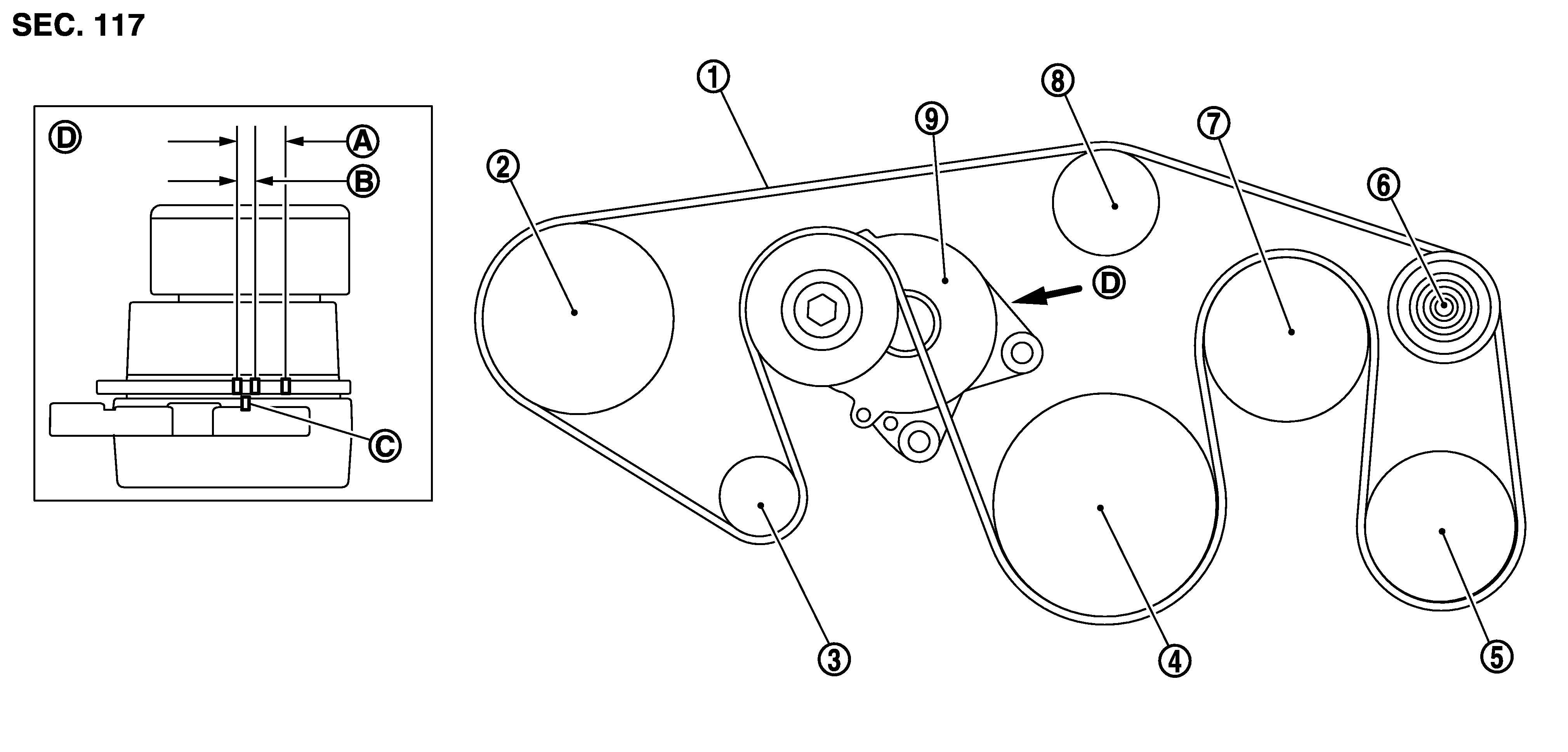

Exploded View
WARNING: This page is about a different variant/trim than selected.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Drive belt
|
2.
|
Power steering oil pump pulley
|
3.
|
Generator pulley
|
|
4.
|
Crankshaft pulley
|
5.
|
A/C compressor
|
6.
|
Idler pulley
|
|
7.
|
Cooling fan pulley
|
8.
|
Water pump pulley
|
9.
|
Drive belt auto-tensioner
|
|
A.
|
Possible use range
|
B.
|
Range when new drive belt is installed
|
C.
|
Indicator
|
|
D.
|
View D
|
