Drive Belt Auto TENSIONER And Idler Pulley
>>
Exploded View
Exploded View
WARNING:
This page is about a different variant/trim than selected.

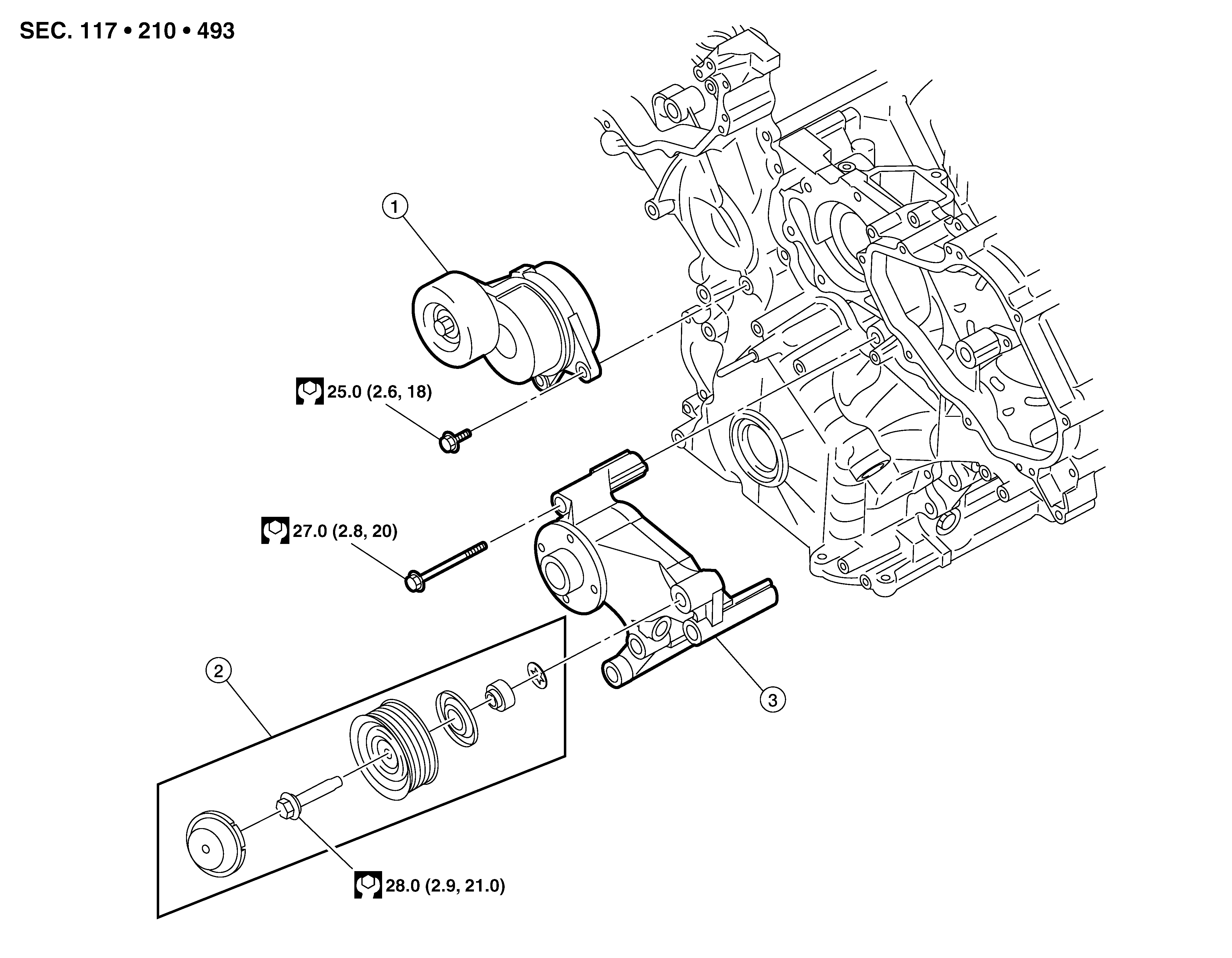

Fig 1: Drive Belt Auto Tensioner And Idler Pulley With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Drive belt auto-tensioner
2.
Idler pulley
3.
Fan bracket
Courtesy of NISSAN NORTH AMERICA, INC.
