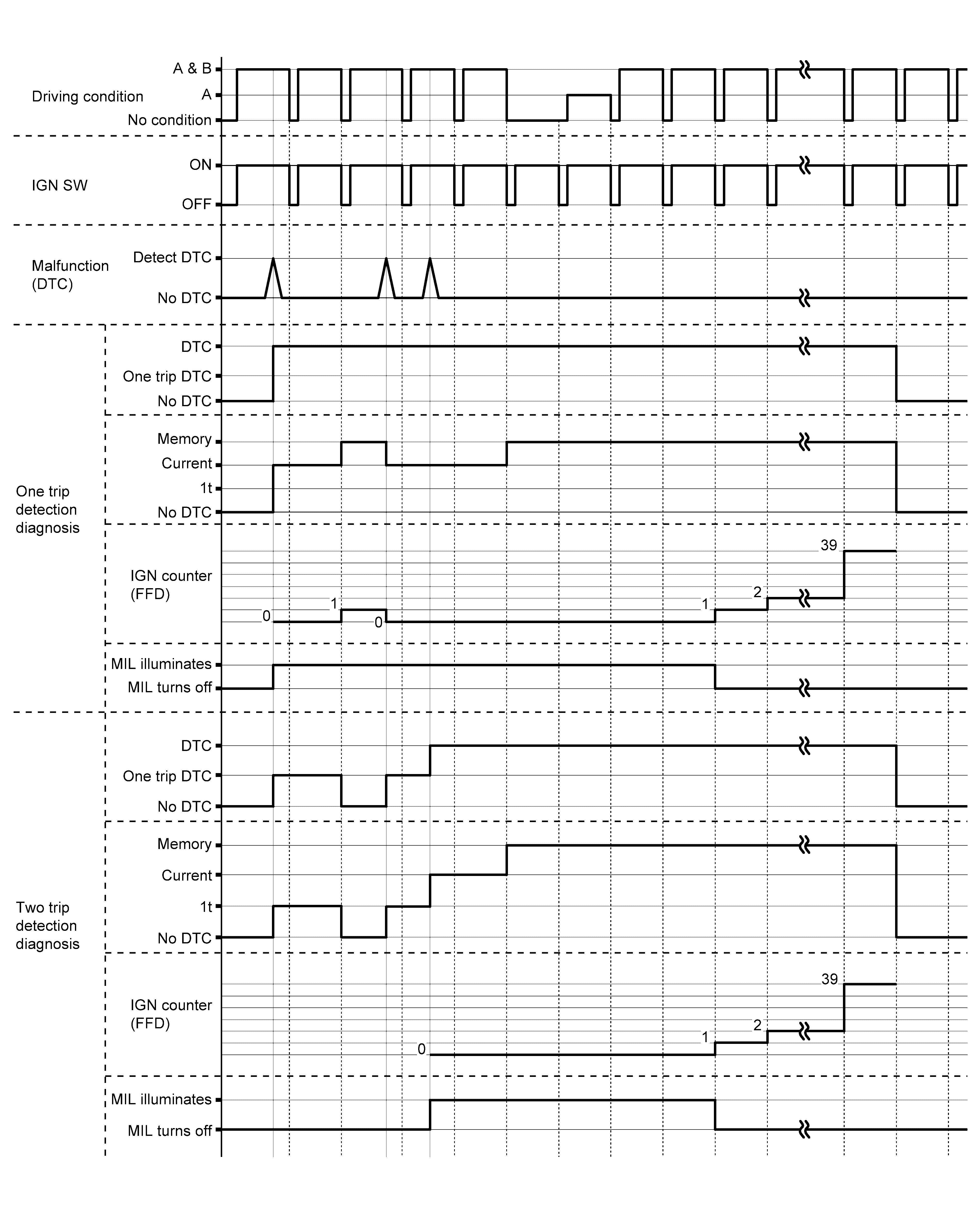

Time Chart

WARNING: This page is about a different variant/trim than selected.

GNSILL0251964-964

Courtesy of NISSAN NORTH AMERICA, INC.
