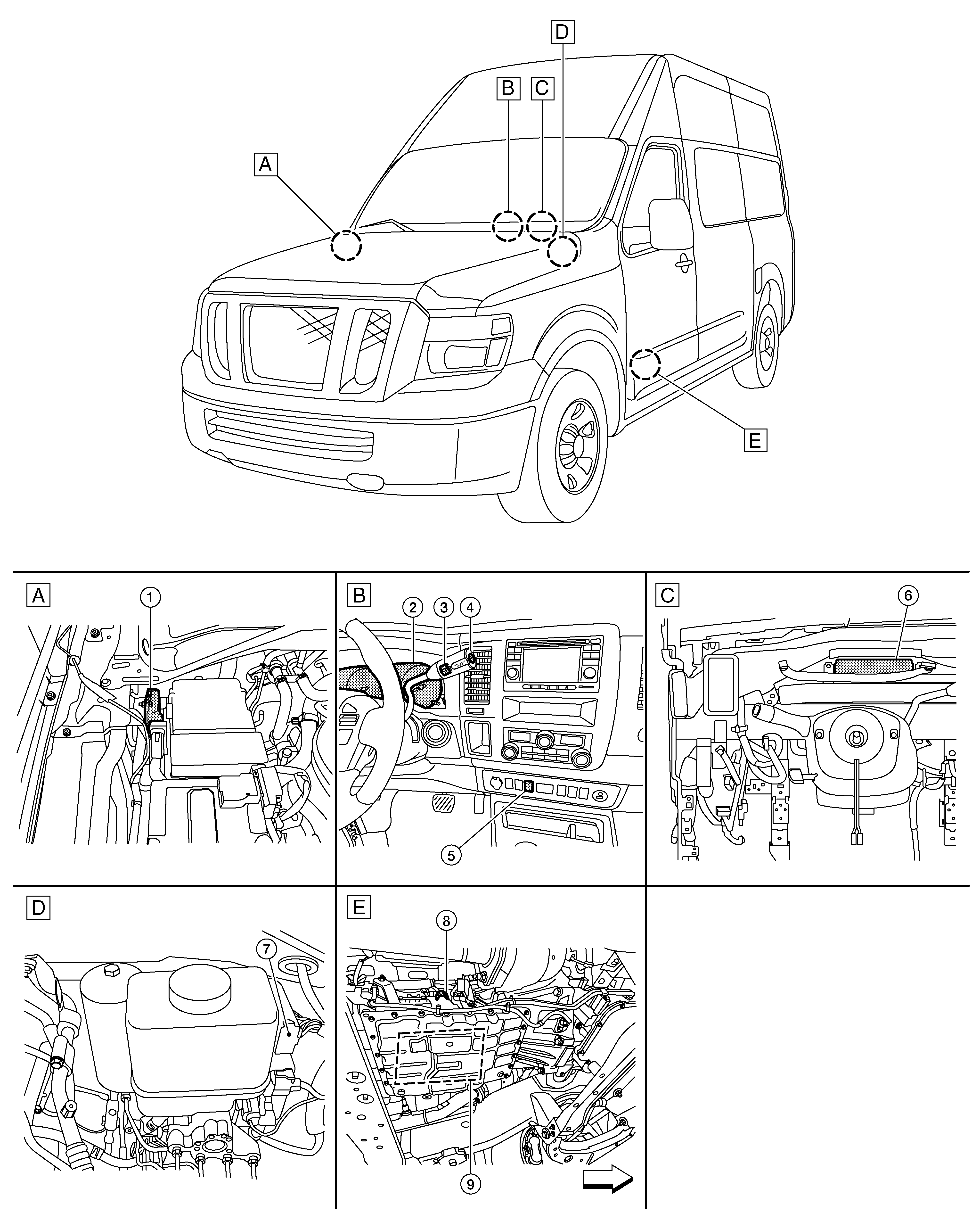

Component Location

WARNING: This page is about a different variant/trim than selected.

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component		Function
	ECM		Mainly transmits the following signal to TCM via CAN communication. Engine and A/T integrated control signal NOTE: General term for the communication (torque-down permission, torque-down request, etc.) exchanged between the ECM and TCM. Engine speed signal Engine coolant temperature signal Accelerator pedal position signal Closed throttle position signal Wide open throttle position signal ASCD OD cancel request signal Refer to Component Location for detailed installation location.
	Combination meter		Mainly transmits the following signal to TCM via CAN communication. Vehicle speed signal Manual mode signal Non-manual mode signal Manual mode upshift signal Manual mode downshift signal Mainly receives the following signals from TCM via CAN communication. Shift position signal Manual mode shift refusal signal Refer to Component Location for detailed installation location.
	Manual position select switch		Manual Mode Switch
	Manual mode switch		Manual Mode Switch
	TOW mode switch		Tow Mode Switch
	BCM		Mainly transmits the following signal to TCM via CAN communication. Stop lamp switch signal Refer to Component Location for detailed installation location.
	ABS actuator and electric unit (control unit)		Mainly transmits the following signal to TCM via CAN communication. ABS operation signal TCS gear keep request signal A/T shift schedule change demand signal Side G sensor signal Refer to Component Location for detailed installation location.
	A/T assembly connector		--
	Control valve	TCM ^*	TCM
		Transmission range switch ^*	Transmission Range Switch
		Input speed sensor 1, 2 ^*	Input Speed Sensor
		A/T fluid temperature sensor ^*	A/T Fluid Temperature Sensor
		Input clutch solenoid valve ^*	Input Clutch Solenoid Valve
		Direct clutch solenoid valve ^*	Direct Clutch Solenoid Valve
		High and low reverse clutch solenoid valve ^*	High and Low Reverse Clutch Solenoid Valve
		Front brake solenoid valve ^*	Front Brake Solenoid Valve
		Low brake solenoid valve ^*	Low Brake Solenoid Valve
		2346 brake solenoid valve ^*	2346 Brake Solenoid Valve
		Anti-interlock solenoid valve ^*	Anti-interlock Solenoid Valve
		Line pressure solenoid valve ^*	Line Pressure Solenoid Valve
		Torque converter clutch solenoid valve ^*	Torque Converter Clutch Solenoid Valve

*: These components are included in control valve.
