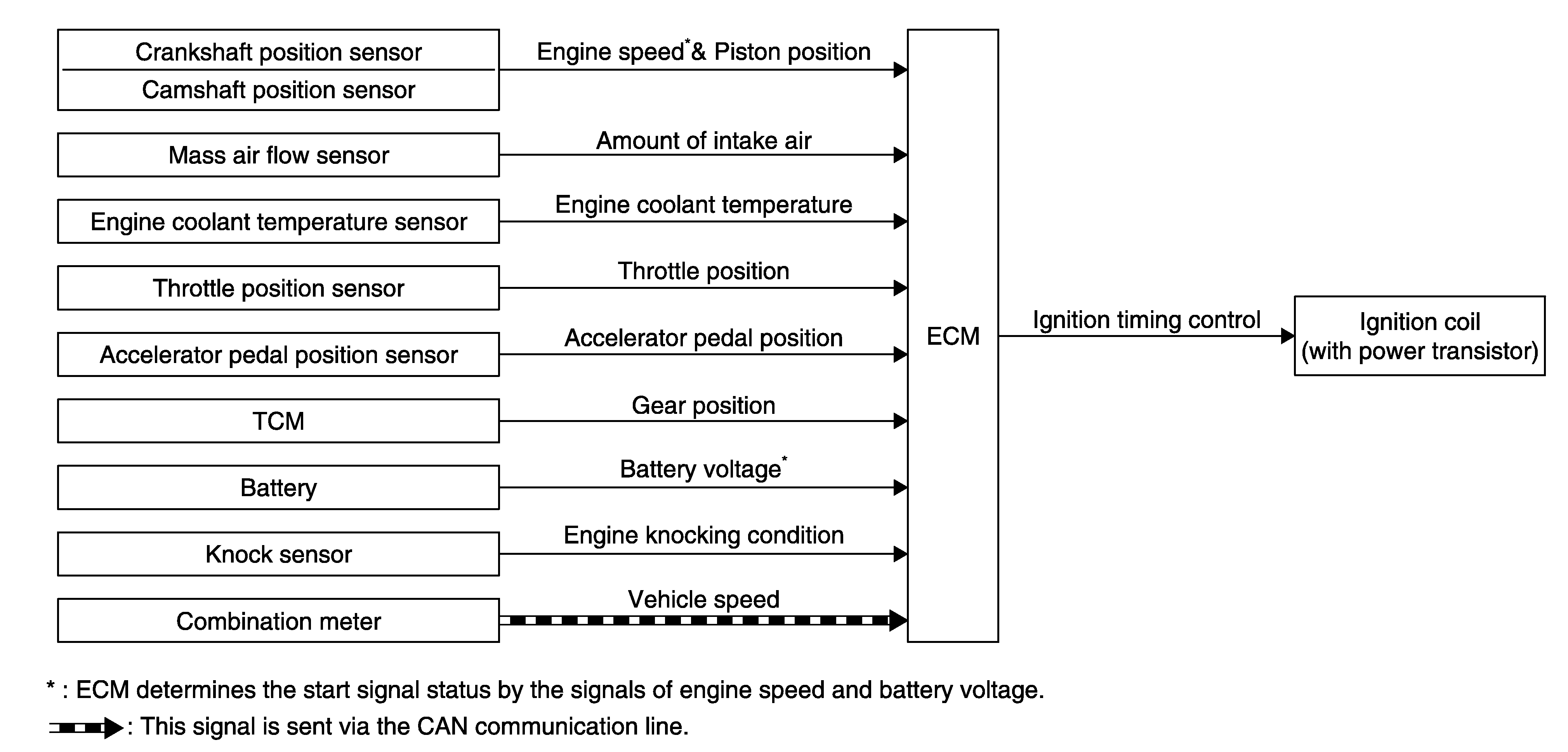

System Diagram
WARNING: This page is about a different variant/trim than selected.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
NOTE:
Both "Engine coolant temperature sensor" and "Engine coolant temperature sensor 1" are used in this information. These indicate the same part.
