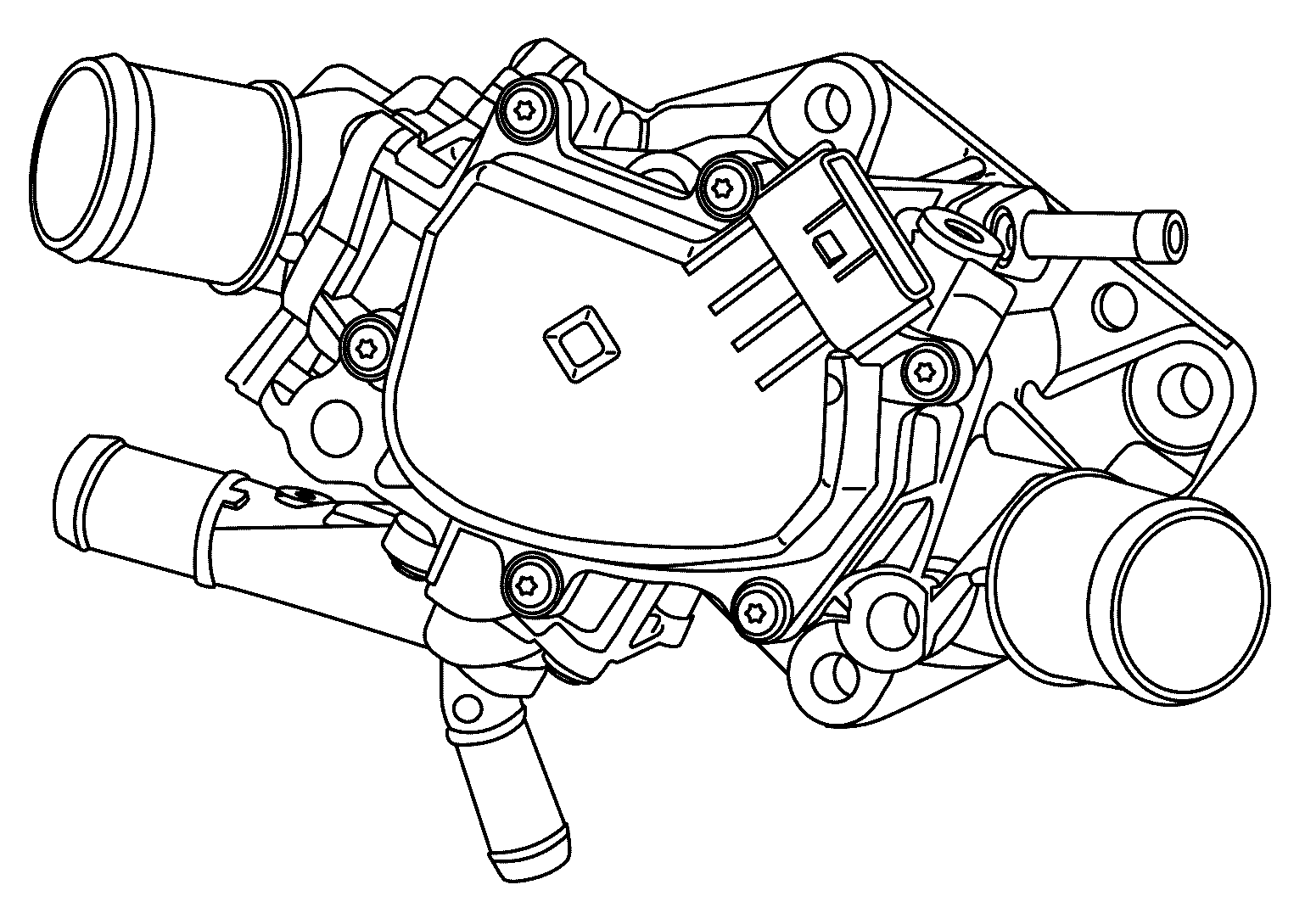

Multi-way Control Valve

WARNING: This page is about a different variant/trim than selected.

The multi-way control valve changes flow paths to Heater, Oil cooler, and Radiator, according to coolant temperature and driving conditions.

GNSJSBIA7206Z-206Courtesy of NISSAN NORTH AMERICA, INC.
