Component Inspection (VVEL Actuator Motor Relay)

1. Turn ignition switch OFF.
2. Remove VVEL actuator motor relay.

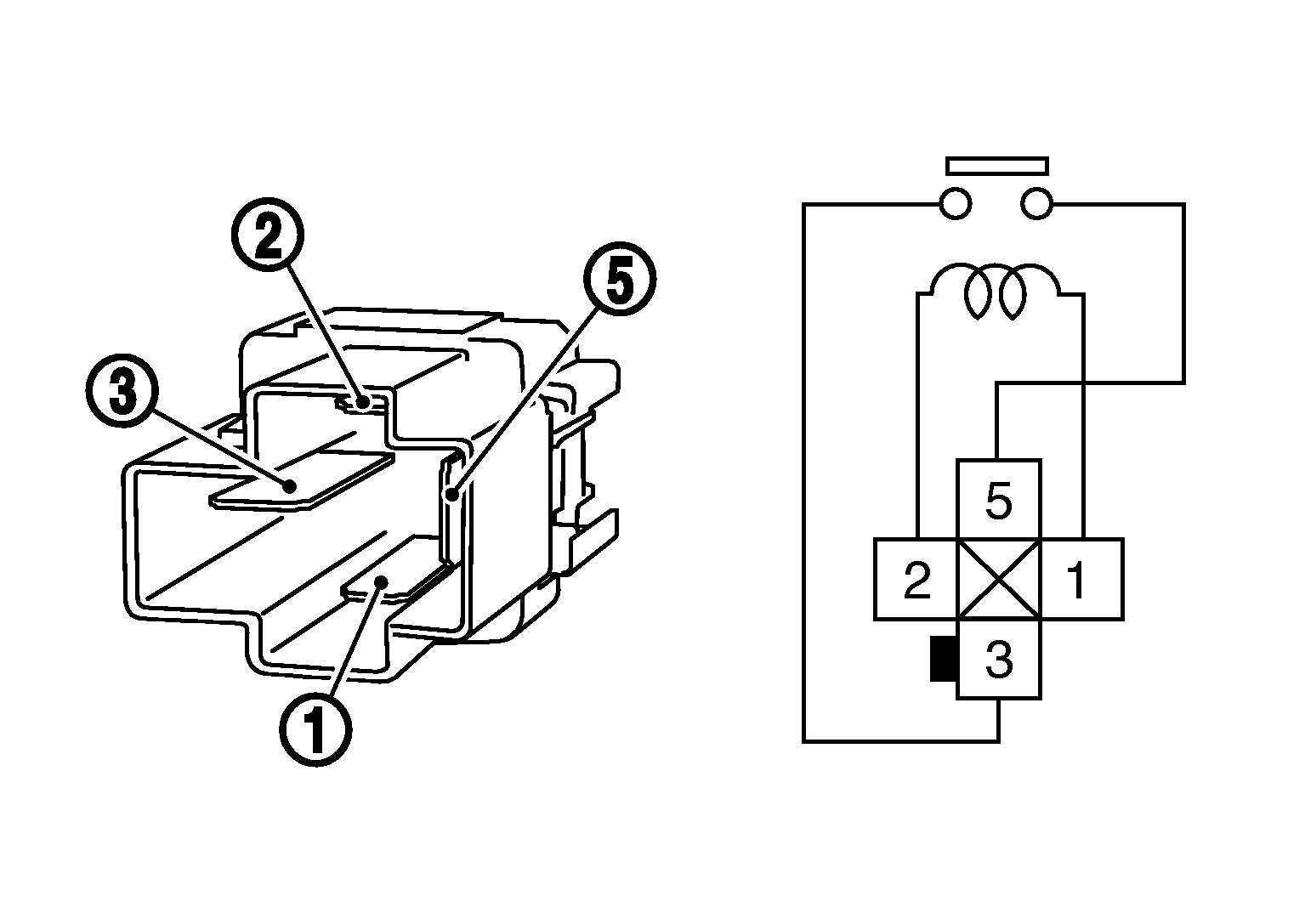

3. Check the continuity between VVEL actuator motor relay terminals under the following conditions.

   Courtesy of NISSAN NORTH AMERICA, INC.

   Terminal	Condition	Continuity
   3 and 5	12V direct current supply between terminals 1 and 2	Existed
   	No current supply	Not existed

Is the inspection result normal?

YES

INSPECTION END

NO

Replace VVEL actuator motor relay.
