Exploded View

WARNING: This page is about a different variant/trim than selected.

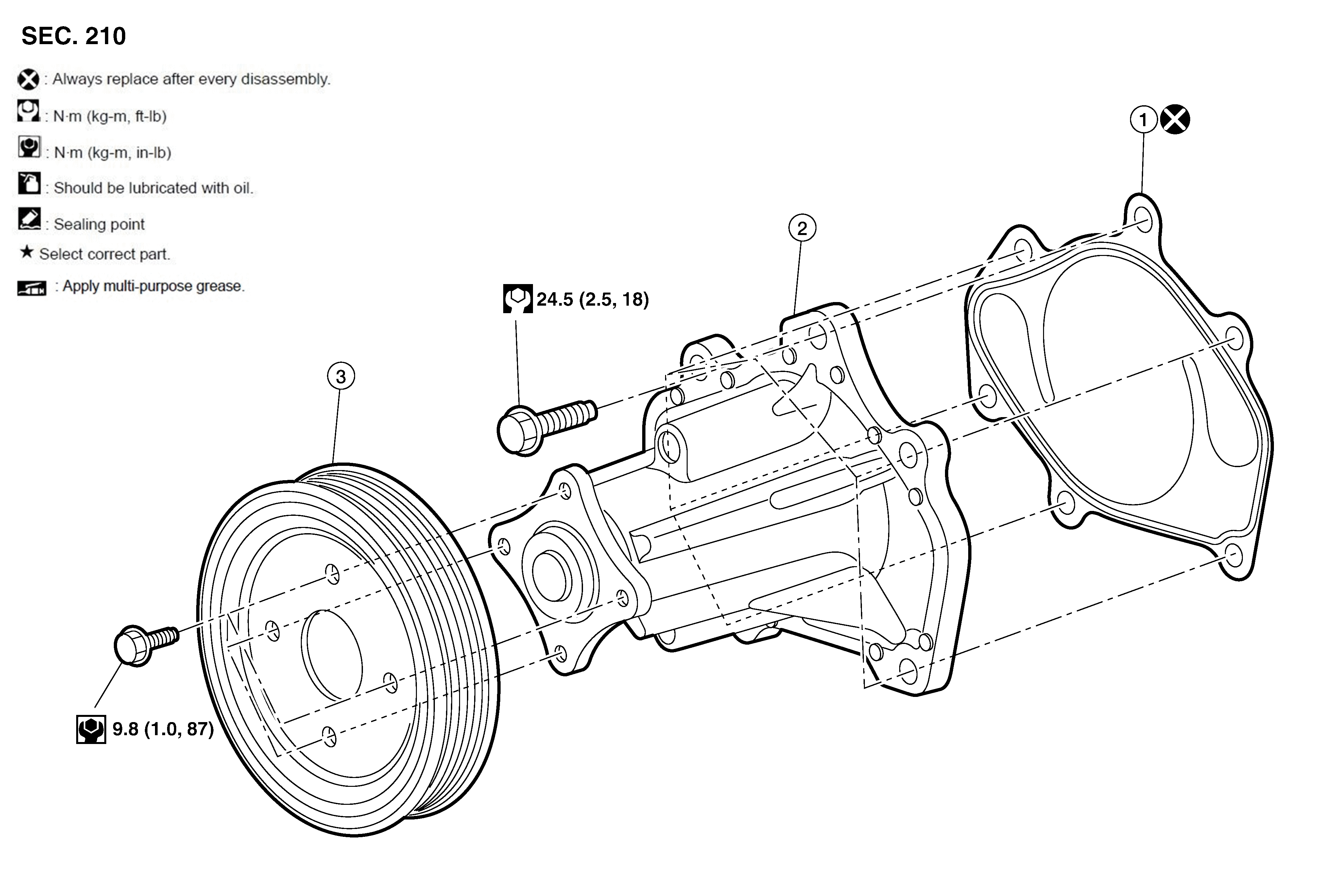

Fig 1: Water Pump With Torque Specifications
GNSAWBIA2956Z-956Courtesy of NISSAN NORTH AMERICA, INC.

1.

Water pump gasket

2.

Water pump

3.

Water pump pulley
