Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Installation is in the reverse order of removal.

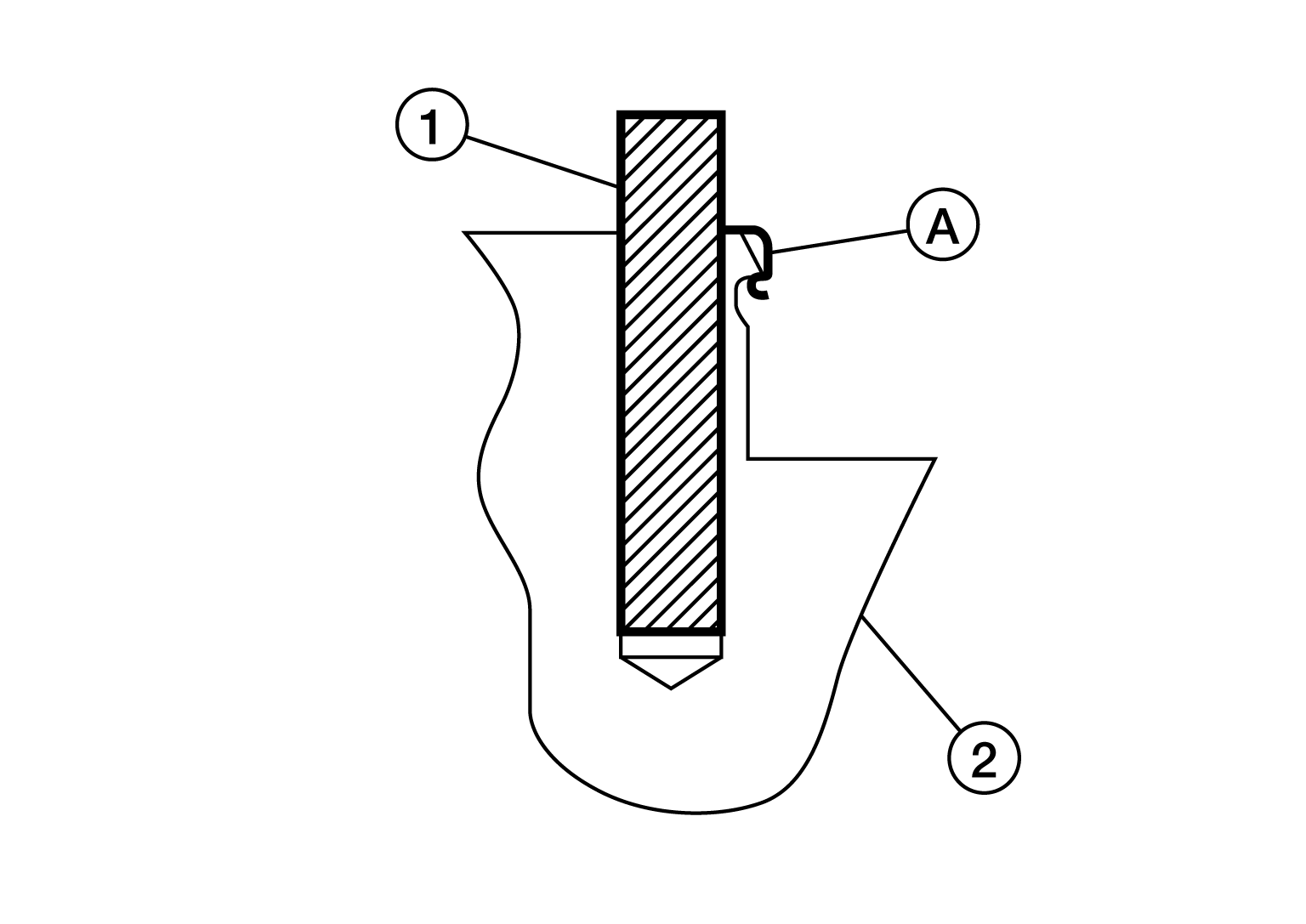

NOTE: When installing coolant heater (1), insert until clip (A) is locked into cylinder block (2).

Courtesy of NISSAN NORTH AMERICA, INC.
